by Hella
SKU 1AL 015 318-001-HEL
£210.99 - £210.99
£210.99
£210.99 - £210.99
£210.99

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm — Est Delivery: 4-5 working days

Product Information

Description

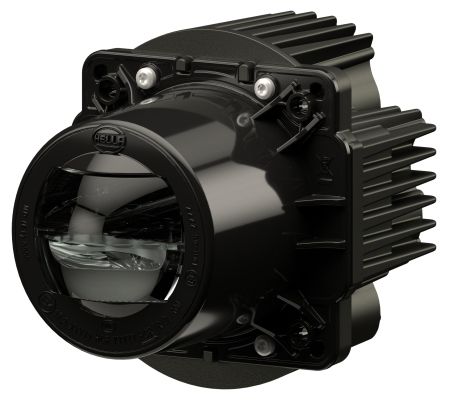

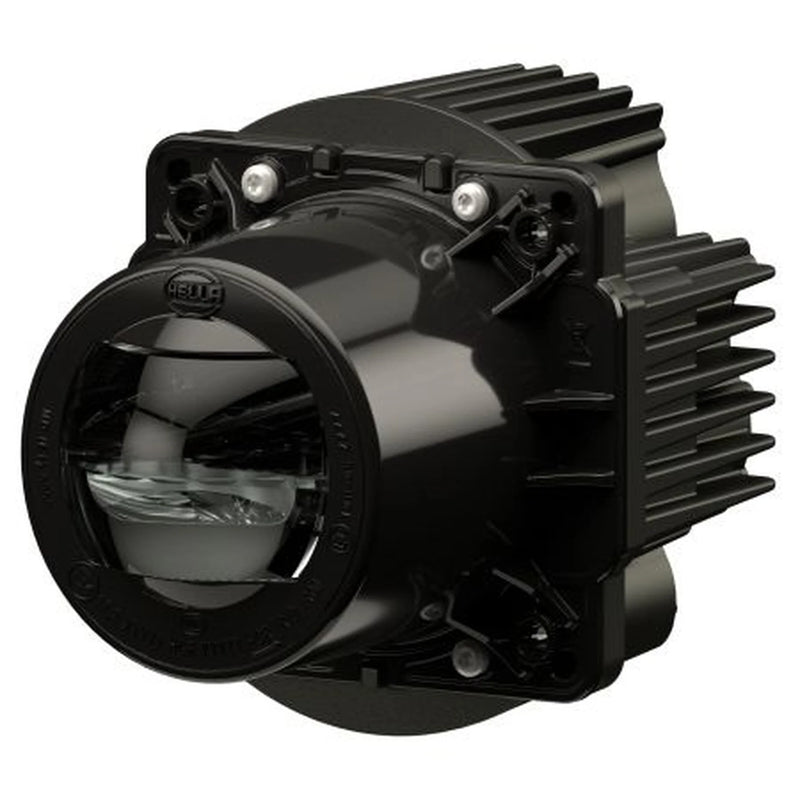

This Hella Insert, headlight (Part Number 1AL 015 318-001) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type Insert, headlight
Position Left
Mounting Type mounting
Fastening Type Four-point attachment
Light Design DE
Lamp Type LED
Voltage 24V
Fitting Position Left

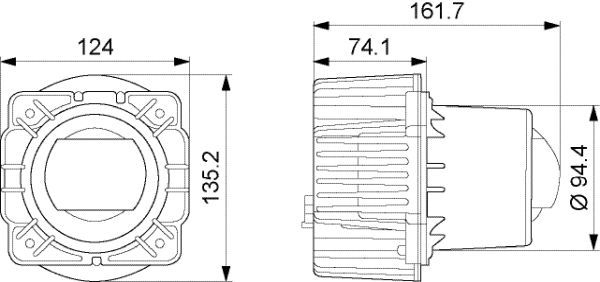

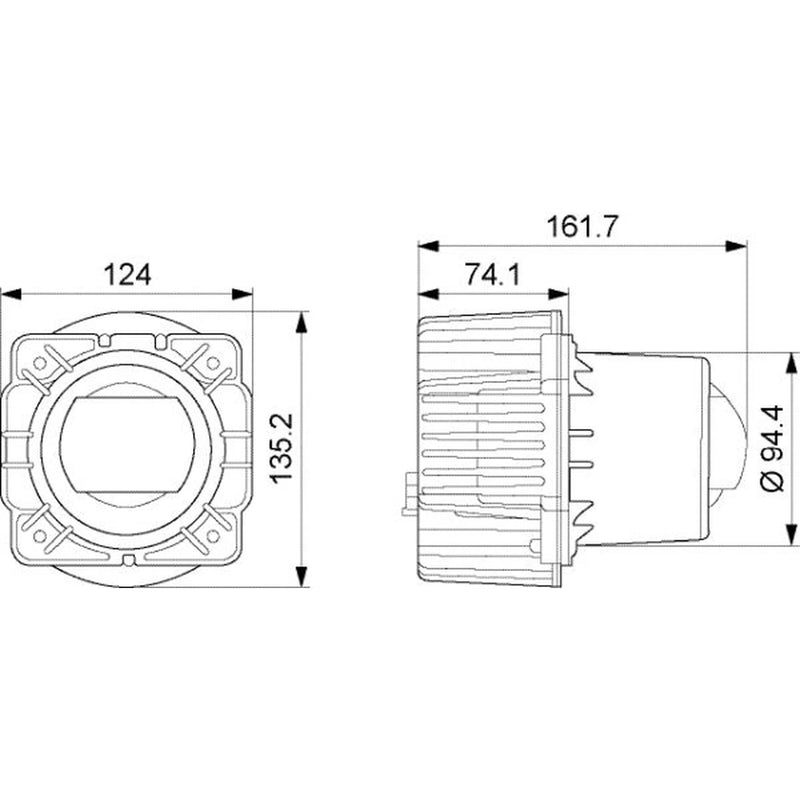

Height 135mm
Width 124mm
Length 135mm
Depth 74mm
Diameter 94mm

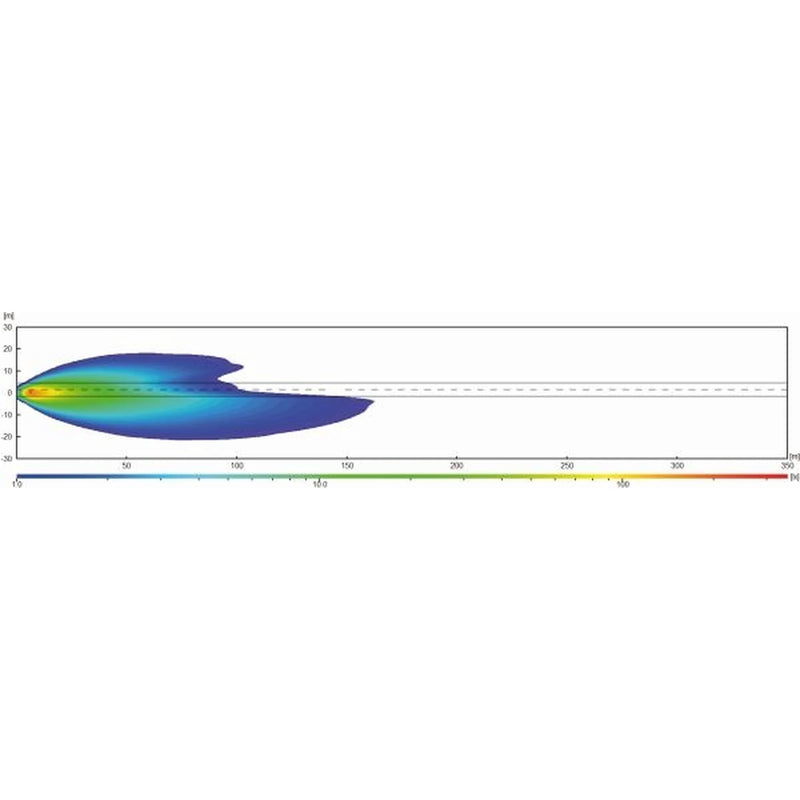

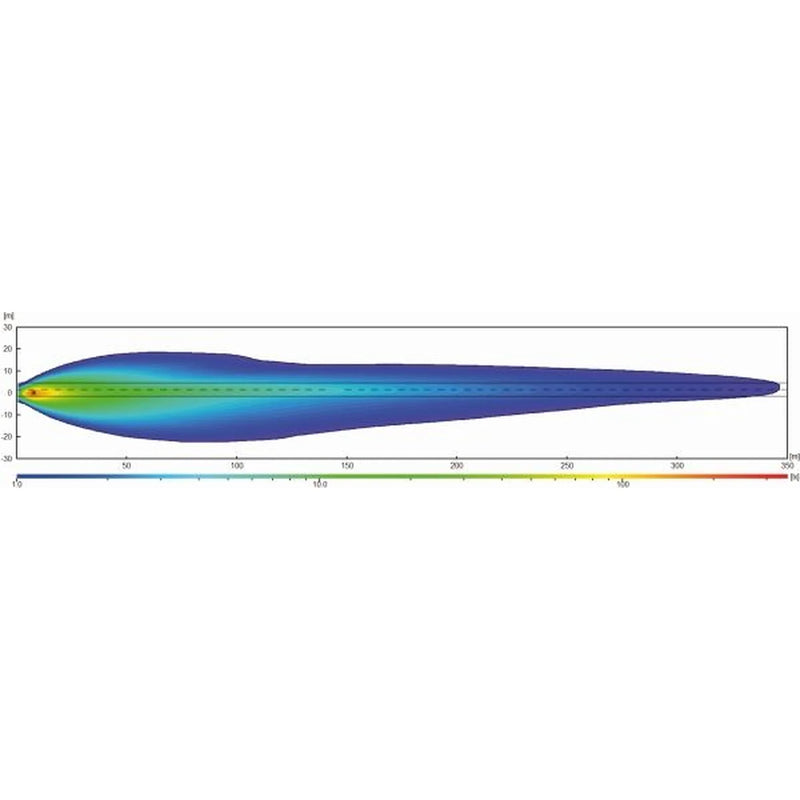

Light Function with low beam (LED)
Number of light functions 2
fulfils ECE standard R10
Registration Type CCC approved
Plug Type DEUTSCH plug
Reference number 17.5
Left-hand/Right-hand Traffic for right-hand traffic
Lens Colour Crystal clear
Housing Colour black
Illuminated Area 94mm
Shape round
Diffusing Lens Material Glass
Supplementary Article/Supplementary Info 2 Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info without bulb
Quantity 1
Manufacturer Part Number 1AL 015 318-001
Make Reference
Agco ACX3295770, ACX3295850
Volvo 24470509, 24675419
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
