Connect 250 Type Connector 2 Pin Kit 12pc - CPL

Connect 250 Type Connector 2 Pin Kit 12pc - CPL

by Connect
SKU 37402-LAS
Sold out
£9.99 - £9.99
£9.99
£9.99 - £9.99
£9.99

Free Standard Delivery for Orders Over £40*

Product Information

Part of the Connect Workshop Consumable electrical connector range.

These connectors are widely used in the automotive industry with various applications.

Wire to wire connector & wire to device connector.

Terminal locking is secured by a secondary lock on the connector block housing.

Full range of electrical connectors available.

For a professional crimp please use our Laser Part No. 7314.

Features

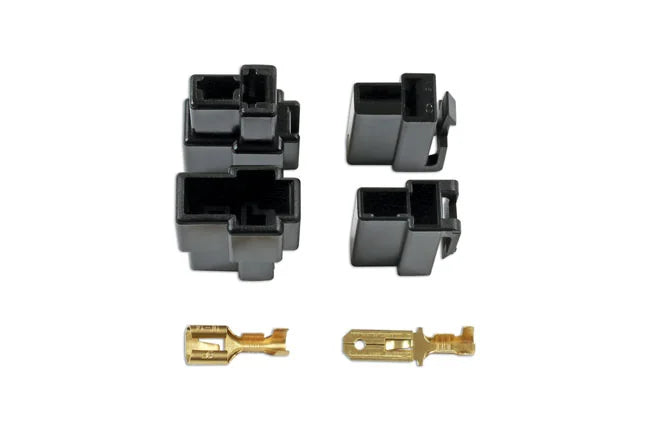

  • 2 Pin electrical connector kit which contains the male & female connector plugs along with 250 type non insulated terminals.
  • Contains - 2 x male connectors, 2 x female connectors, 4 x 250 type male blade terminals & 4 x 250 type female terminals.
  • Black housing material PA66/PP. Operating temperature -40 ~ 120°C. ROHS Compliant.
  • Brass terminal suits 1.5mm² - 2.5mm² cable (AWG 14-16).
  • Also included in the Connect 250 type electrical connectors assorted box, Part No. 37400.
Specifications
Brand Connect
EAN 5018341374020
Sub-Type 250 Fast-on Type Connectors
Item Weight 0.03 kg
Custom Bundle No
Item Width 90mm
Item Height 30mm
Item Depth 140mm
Country/Region of Manufacture Taiwan Province of China
Customs Tariff Number 85369010
Type 0
Number in Set 12
Application Automotive
Manufacturer Part Number (MPN) CPL
