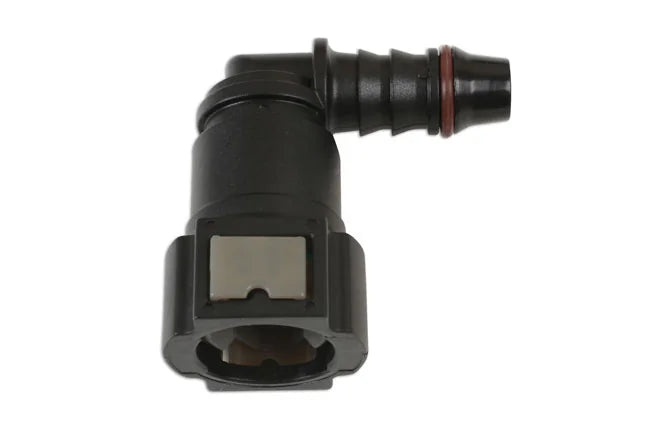

Connect 90° Angled Fuel Line Quick Connectors 9.89 x 8mm 3pc - CPL

Connect 90° Angled Fuel Line Quick Connectors 9.89 x 8mm 3pc - CPL

by Connect
SKU 37209-LAS
£18.99 - £18.99
£18.99
£18.99 - £18.99
£18.99

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

A set of 3 angled fuel line quick connectors allowing for tight connections on 8mm fuel lines. The 90° (elbow) angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks. To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933.

Features
  • 90° angled connectors, suits: 8mm ID nylon pipe; 7.5mm ID rubber hose.
  • Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40°C to 120°C.
  • Body manufactured from nylon PA12; O-ring from FKM seal (Viton). Made to SAE J2044-220908 standards.
  • Grey tab for fuel identification (note: AdBlue® specific connectors have red tabs).
  • Included in assorted boxes of 90° angled quick fuel line connectors, Part No. 34030 & mixed set of straight & angled connectors, Part No. 34029. Also available in assorted fuel & pipe connector kits, Part Nos. 37011 & 37199.
Specifications
Brand Connect
EAN 5018341372095
Sub-Type Fuel Connectors
Item Weight 0.058 kg
Custom Bundle No
Item Width 97mm
Item Height 57mm
Item Depth 185mm
Country/Region of Manufacture China
Customs Tariff Number 39174000
Type 0
Number in Set 3
Length 8mm
Manufacturer Part Number (MPN) CPL
