Connect Assorted 45° Angled Fuel Line Quick Connectors 16pc - CPL

Connect Assorted 45° Angled Fuel Line Quick Connectors 16pc - CPL

by Connect
SKU 34229-LAS
Sold out
£72.99 - £72.99
£72.99
£72.99 - £72.99
£72.99

Free Standard Delivery for Orders Over £40*

Product Information

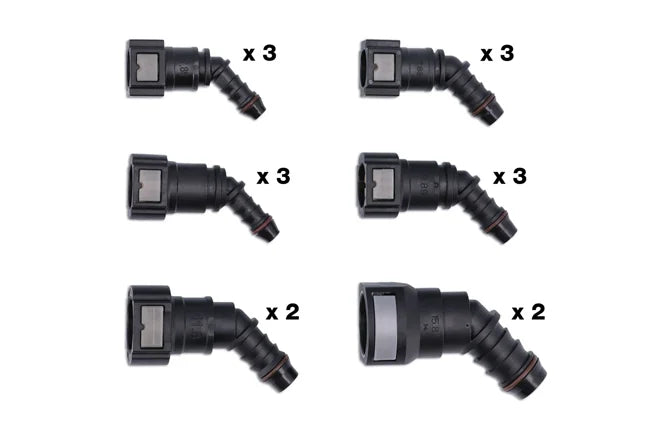

A set of 6 different sized angled fuel line quick connectors allowing for tight connections on a range of fuel line inner diameters from 6mm to 14mm. The 45° angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks.

Features
  • 45° angled connectors, sizes: 7.89 x 6mm, 7.89 x 8mm, 9.89 x 6mm, 9.89 x 8mm, 11.8 x 10mm, 15.82 x 14mm.
  • Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40°C to 120°C.
  • Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to SAE J2044-2009 standards.
  • Grey tab for fuel identification (note: AdBlue® specific connectors have red tabs).
  • Top up packs available (3pc), see Part Nos. 34230 (7.89 x 6mm), 34231 (7.89 x 8mm), 34232 (9.89 x 8mm), 34233 (9.89 x 6mm), 34235 (11.8 x 10mm), 34236 (15.82 x 14mm, 2pc).
Specifications
Brand Connect
EAN 5018341342296
Sub-Type Fuel Connectors
Item Weight 0.267 kg
Custom Bundle No
Item Width 122mm
Item Height 43mm
Item Depth 232mm
Country/Region of Manufacture China
Customs Tariff Number 39174000
Type 0
Number in Set 16
Manufacturer Part Number (MPN) CPL
