Connect Assorted Straight & Angled Fuel Line Quick Connectors 24pc - CPL

Connect Assorted Straight & Angled Fuel Line Quick Connectors 24pc - CPL

by Connect
SKU 34029-LAS
£61.99 - £61.99
£61.99
£61.99 - £61.99
£61.99

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

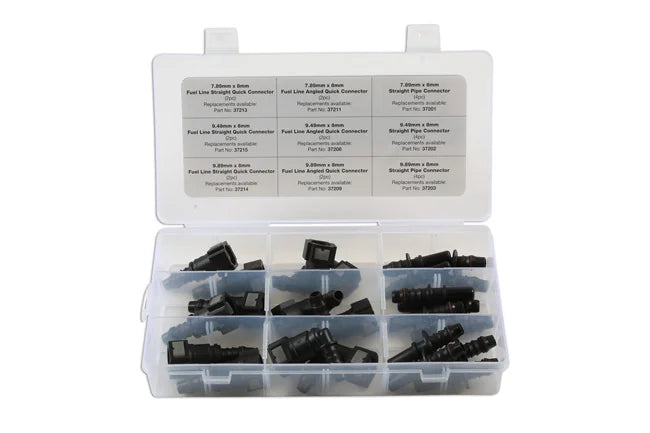

A set of 6 different sized straight & angled fuel line quick connectors and 3 straight pipe connectors, allowing for tight connections on fuel line inner diameters of 8mm. The 90° (elbow) angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks. To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933.

Features
  • 90° angled & straight quick connectors & straight pipe connector sizes: 7.89 x 8mm, 9.49 x 8mm, 9.89 x 8mm.
  • Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40°C to 120°C.
  • Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to SAE J2044-2009 standards.
  • Grey tab for fuel identification (note: AdBlue® specific connectors have red tabs).
  • Top up packs available (3pc). For angled quick connectors, please see Connect Part Nos. 37211 (7.89 x 8mm), 37208 (9.49 x 8mm), 37209 (9.89 x 8mm); for straight quick connectors, Part Nos. 37213 (7.89 x 8mm), 37215 (9.49 x 8mm), 37214 (9.89 x 8mm); for straight pipe connectors, Part Nos. 37201 (7.89 x 8mm), 37202 (9.49 x 8mm), 37203 (9.89 x 8mm);
Specifications
Brand Connect
EAN 5018341340292
Sub-Type Fuel Connectors
Item Weight 0.254 kg
Custom Bundle No
Item Width 122mm
Item Height 42mm
Item Depth 233mm
Country/Region of Manufacture China
Customs Tariff Number 39174000
Type 0
Number in Set 24
Application Plumbing
Manufacturer Part Number (MPN) CPL
