Gunson Universal Thread Gauge - 4pc - GPL

Gunson Universal Thread Gauge - 4pc - GPL

by Gunson
SKU 77106-LAS
£15.65 - £15.65
£15.65
£15.65 - £15.65
£15.65

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

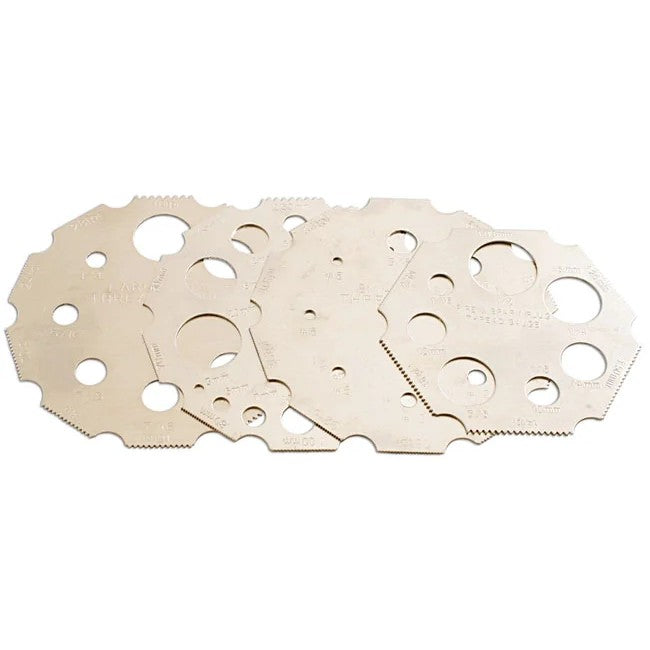

This 4-piece thread gauge set is designed to quickly and accurately identify a wide range of thread types on bolts, set screws, pipes, and spark plugs. Manufactured from aluminium, the gauges are safe to use on fine threads and allow for the identification of bolt thread diameter, thread pitch, or threads per inch without risk of damage. The metric gauge measures thread sizes from 2.5mm to 22mm with pitches ranging from 0.45mm to 2.5mm. The pipe thread gauge covers sizes from 1/16" to 1/2", with thread counts from 14 to 27tpi, and includes spark plug thread sizes of 10, 12, 14, and 18mm. Two USS standard gauges are included to cover SAE, UNC, and UNF standards. The smaller gauge measures sizes #5 to 3/8" with thread counts from 16 to 44tpi, while the larger gauge covers sizes from 1/4" to 3/4" with thread counts from 10 to 28tpi.

Features
  • A 4pc thread identification gauge set.
  • Features metric & USS sizes including SAE, UNC, & UNF standards.
  • Range: 5/16" - 3/4", 10tpi - 44tpi, metric thread sizes 2.5 - 22mm & pitch of 0.45 - 2.5mm.
  • Identifies bolts, pipe threads & spark plugs 10 - 18mm.
  • Manufactured from aluminium.
Specifications
Brand Gunson
EAN 5018341771065
Type Workshop
Item Weight 0.054 kg
Custom Bundle No
Item Width 127mm
Item Height 4mm
Item Depth 185mm
Country/Region of Manufacture Taiwan Province of China
Customs Tariff Number 90318080
Sub-Type GENE
Number in Set 4
Manufacturer Part Number (MPN) GPL
