by Hella
SKU 8JB 005 949-011-HEL
£18.99 - £18.99
£18.99
£18.99 - £18.99
£18.99

Free Standard Delivery for Orders Over £40*

Description

This Hella Socket (Part Number 8JB 005 949-011) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type Socket

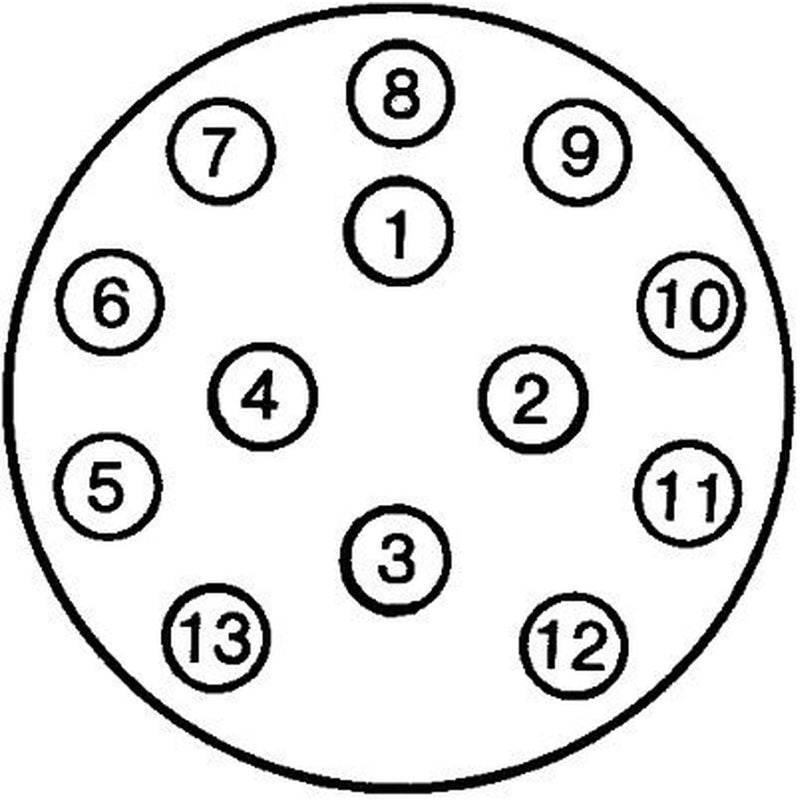

Number of pins 13
Voltage 12V
DIN/ISO 11446 N-Typ
Number of bores 3
Colour black
Cross Section [mm²] from 1.5
Cross Section [mm²] to 2.5
Current Strength from 16A
Current Strength to 25A
Temperature range from -40°C
Temperature range to +85°C
Depth 45mm
Diameter 72mm
Bore Diameter 6mm
Plug Type Screw Contact
Quantity 1
Manufacturer Part Number 8JB 005 949-011
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:

Make Reference
Aebi 18-EER270404
Agco D44900991
Bonetti 05700108
Fendt D 449 009 91
Hako 0882026
Heuliez 580199684601
Hymer 1200995, 1603.08.45
Jaeger 121134, 72400004
Jungheinrich 51494819
Krone 505820560, 5820560/0
Liebherr 6 052 008 08
Mercedes-Benz 002 540 52 81, A 002 540 52 81
Mitsubishi Z0539819
Renault Trucks 7420881795
Solaris 1508-949-012
Steyr 002 640 52 81
Still 8407401, 917000
Vdl 279882
Volvo 20520796
