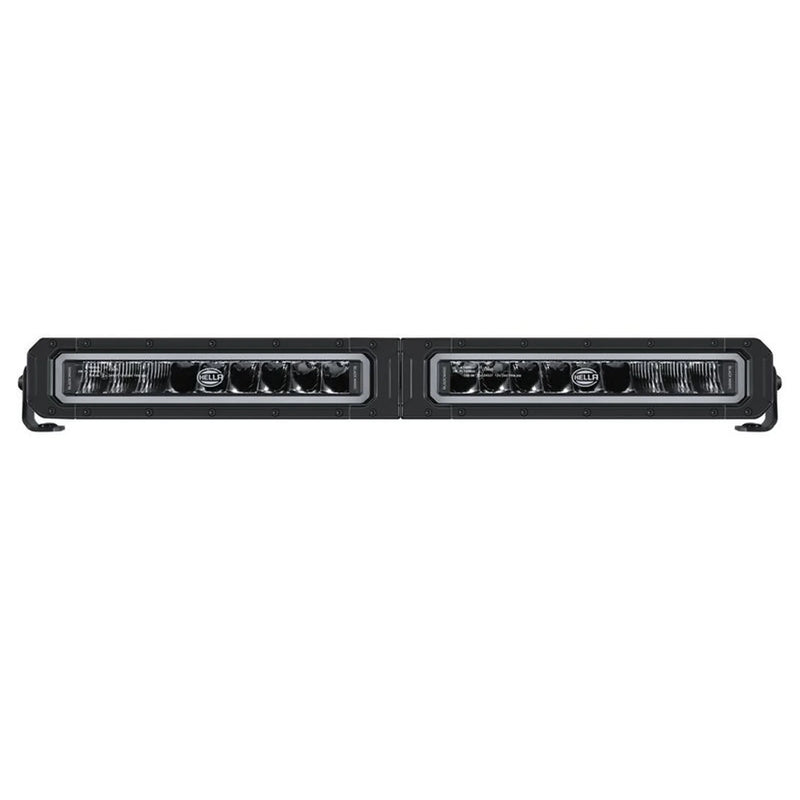

Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401
Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401

Hella Lightbar Bm Single Twin 22'' 1FJ Front 1FJ 358 550-401 1FJ 358 550-401

by Hella
SKU 1FJ 358 550-401-HEL
Sold out
£434.99 - £434.99
£434.99
£434.99 - £434.99
£434.99

Free Standard Delivery for Orders Over £40*

Product Information

Description

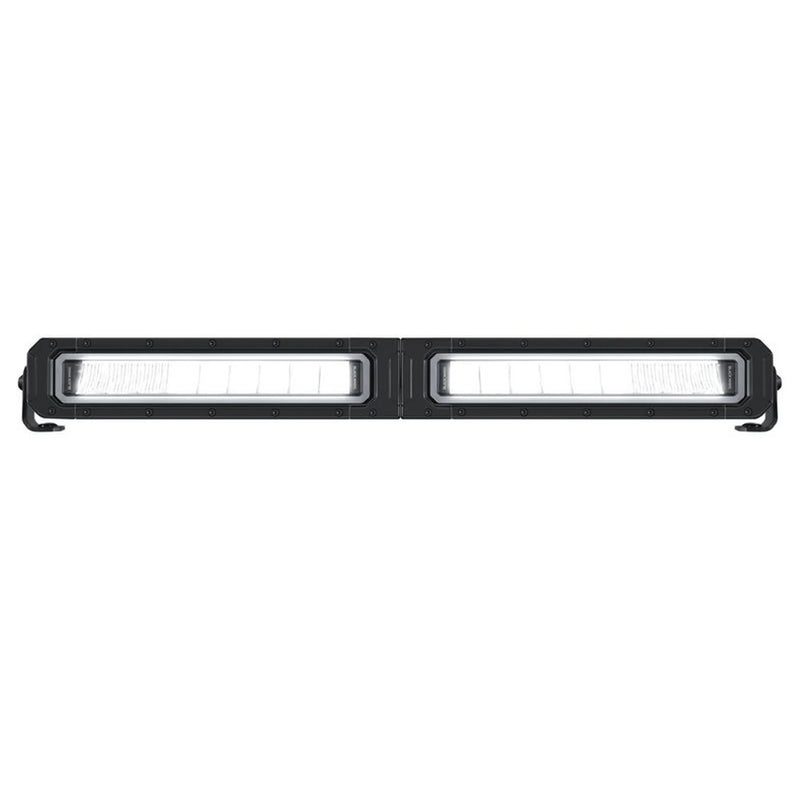

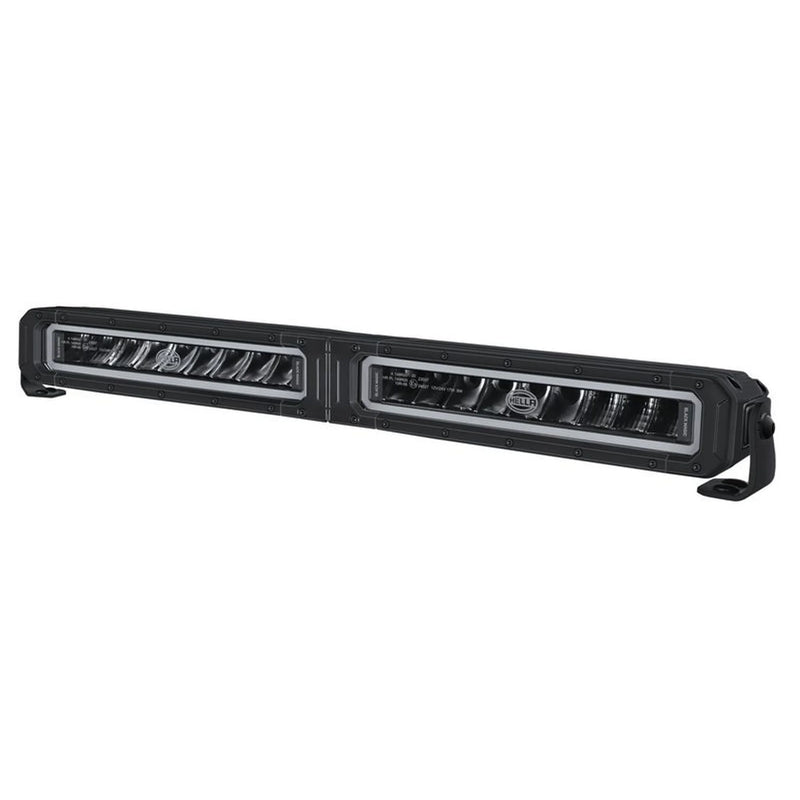

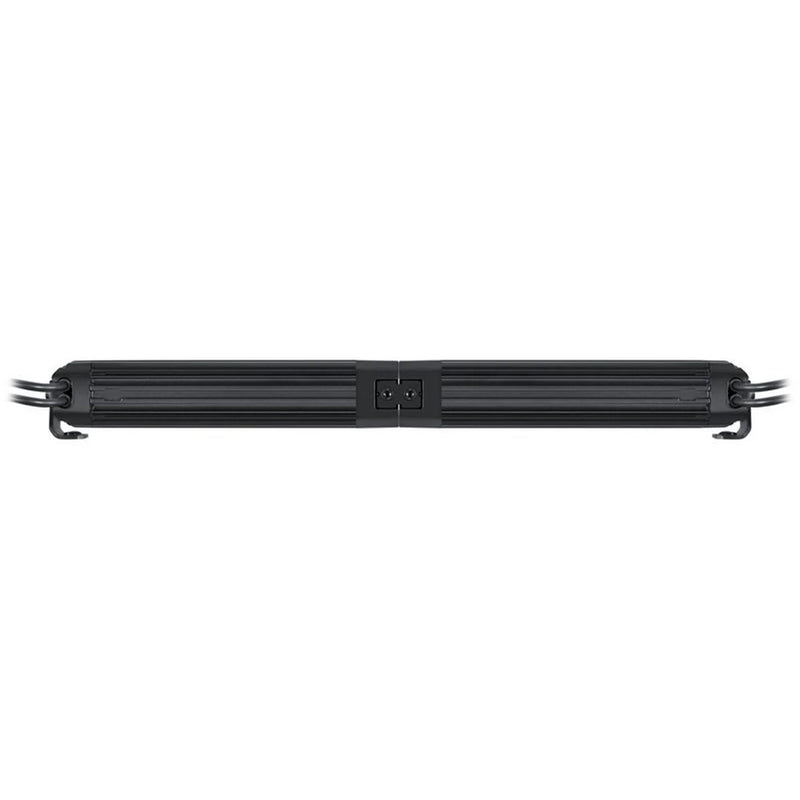

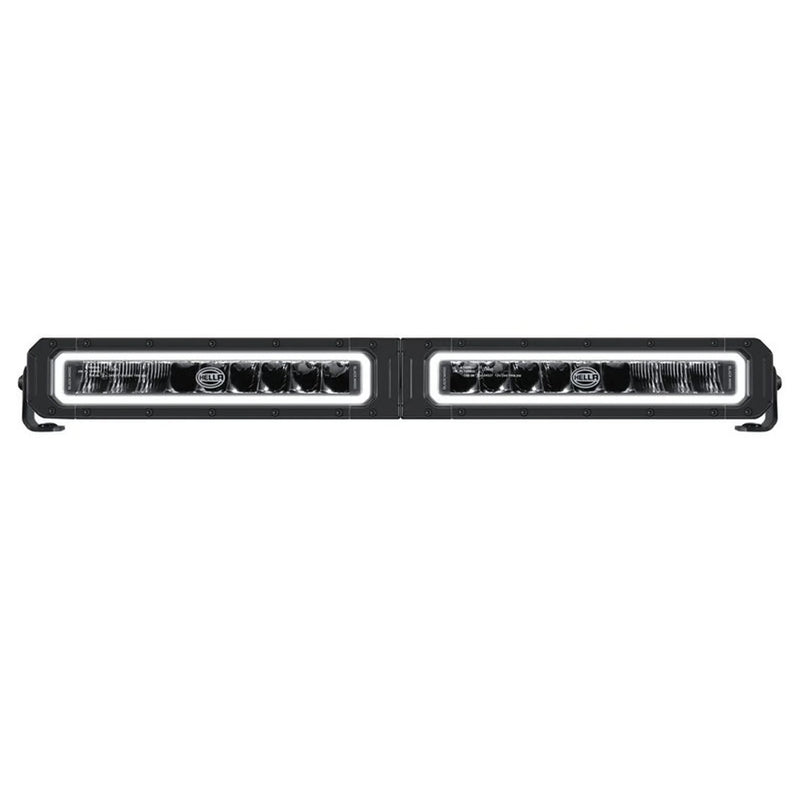

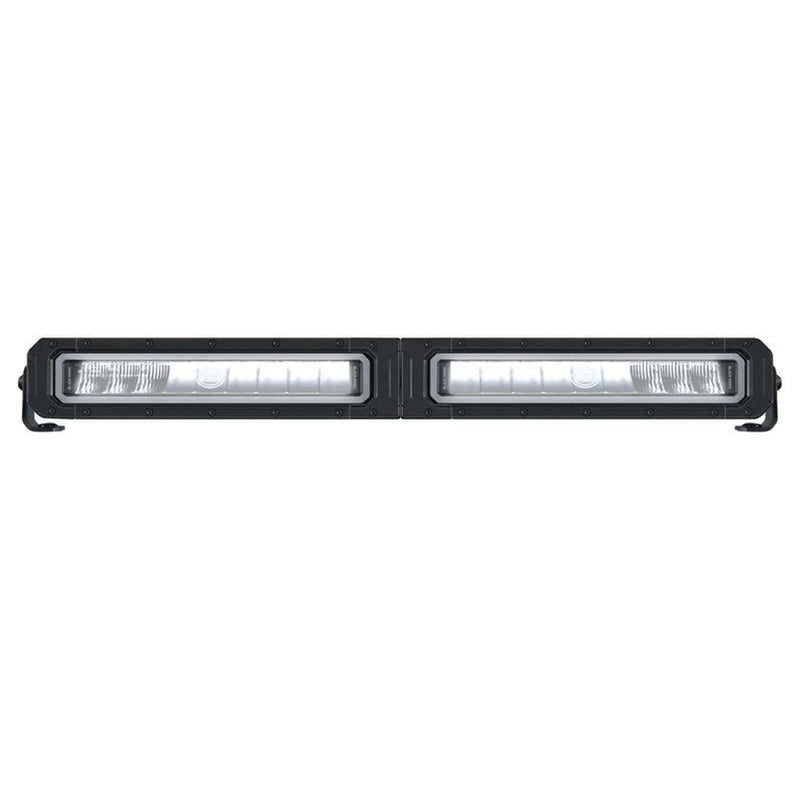

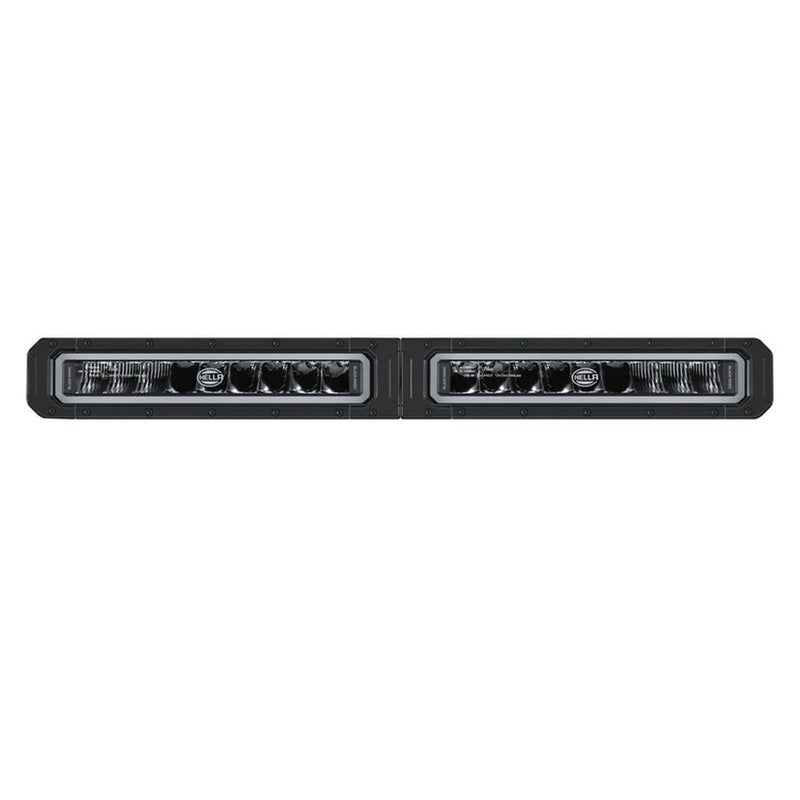

This Hella High Beam Headlight (Part Number 1FJ 358 550-401) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type High Beam Headlight
Position Front
Mounting Type Bolted
Fastening Type Screw connection
Lamp Type LED
Light Design single line LED
Voltage 24V
Rated Power 84W
Voltage from 10V
Voltage to 30V
Fitting Position Front
Overall Height 74.1mm
Height 62.2mm
Length 559.8mm
Depth 72.6mm
Light Function High-boost
Number of light functions 3
Number of LEDs 114

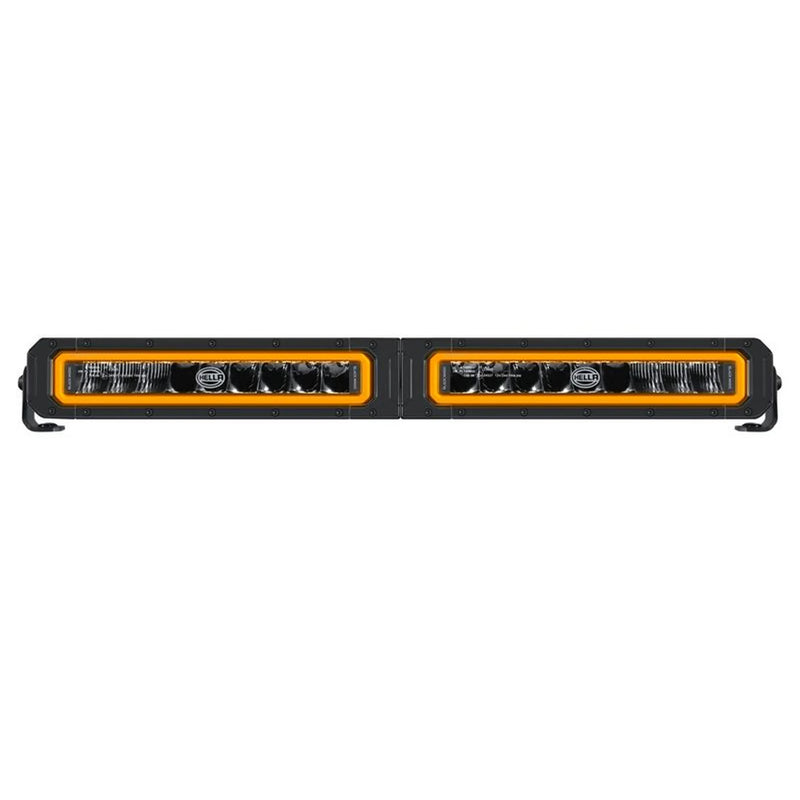

Light colour yellow (amber)
Colour Temperature 5700 K
Theoretical luminous flux 4100 lm
Theoretical luminous flux in Boost mode 6500 lm
Luminous Flux 1537 lm
Luminous in boost mode 3020 lm
Cable Length 1500mm
Lens Colour Crystal clear
Frame Colour black
Housing material Aluminium
Housing Colour black
Lens Type clear lens
Lens Material PC (Polycarbonate)
Registration Type ECE approved
fulfils ECE standard R149
Protection Type per ISO 20653 IP68
Reference number 20
Temperature range from -30°C
Temperature range to +65°C
max. light cone range at 1 lux (main light function) 362m
max. light cone range at 1 lux (high boost function) 508m
Weight 3900g

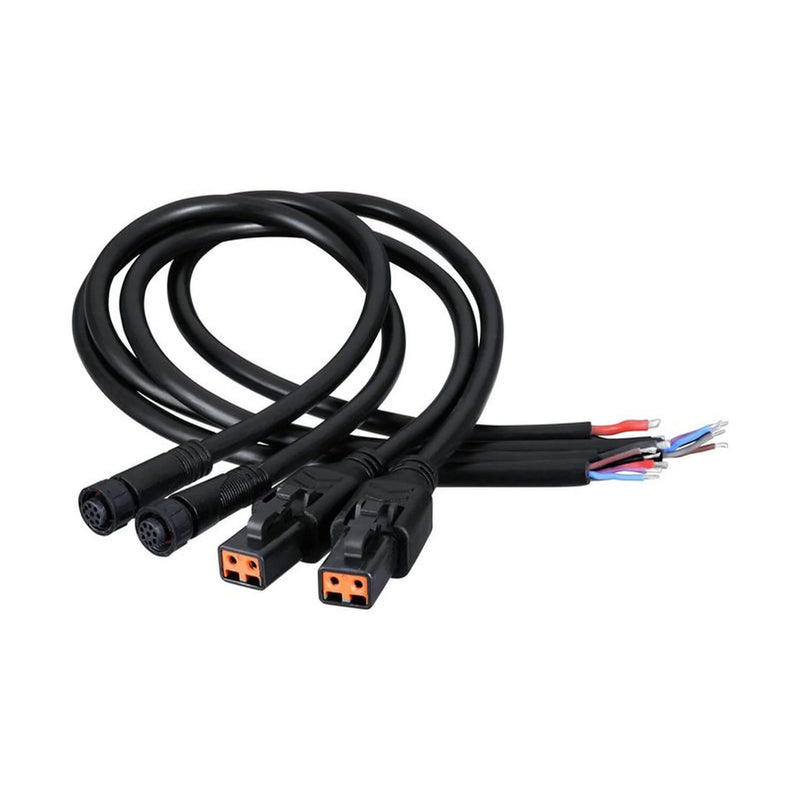

Plug Type DEUTSCH plug
Surface Anodized
Manufacturer Part Number 1FJ 358 550-401
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

Why Buy Hella?

Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.

  • OE-quality construction
  • Tested to manufacturer specifications
  • Trusted by professional workshops
  • Backed by manufacturer warranty
