by Hella
SKU 1FE 016 773-011-HEL
£182.99 - £182.99
£182.99
£182.99 - £182.99
£182.99

Free Standard Delivery for Orders Over £40*

Description

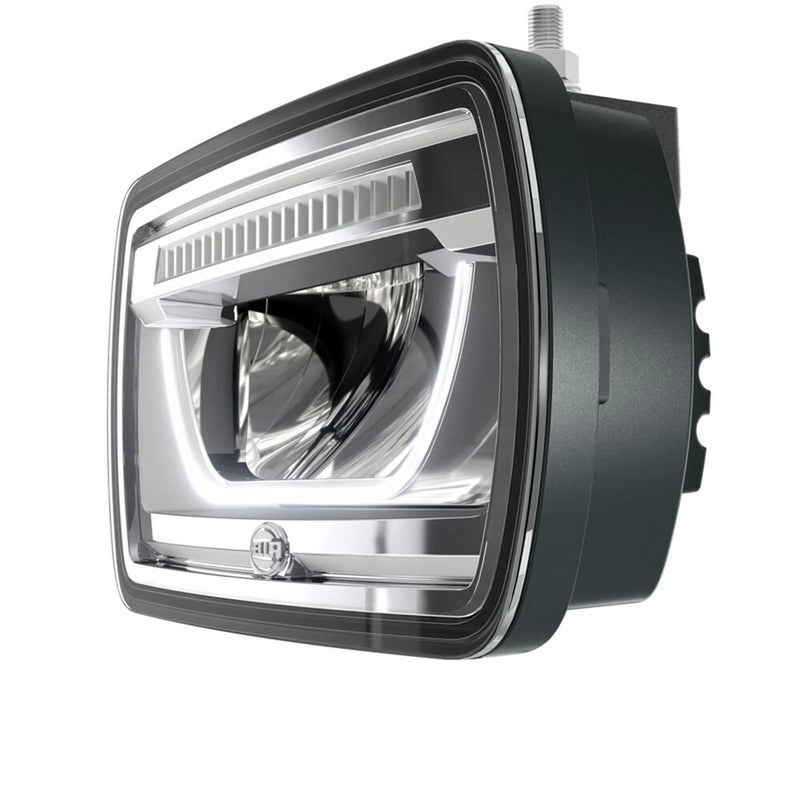

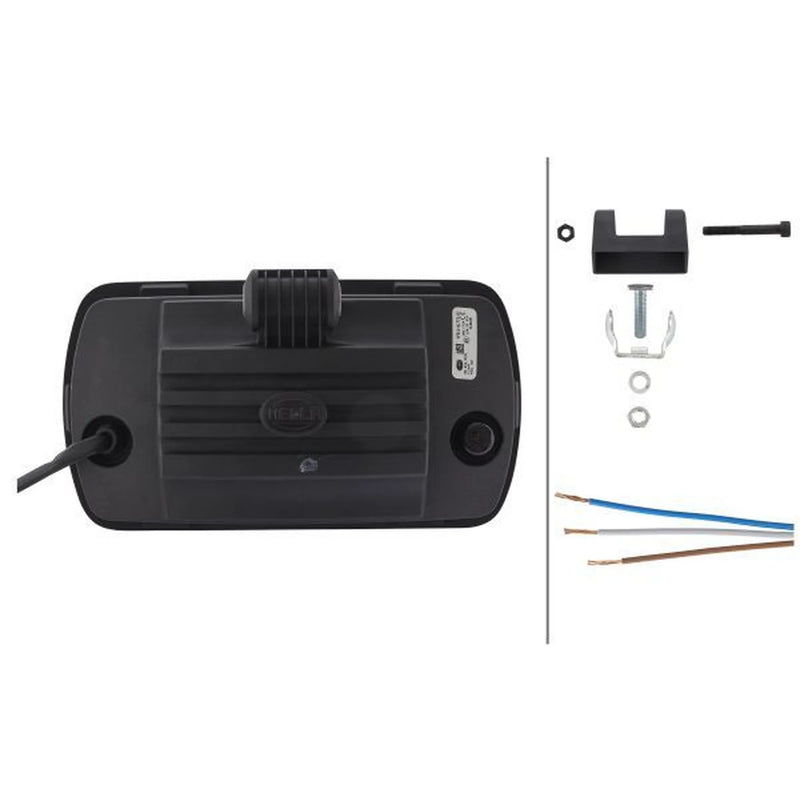

This Hella High Beam Headlight (Part Number 1FE 016 773-011) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type High Beam Headlight
Mounting Type Bolted
Fastening Type Suspended
Lamp Type LED
Voltage 24V
Voltage from 9V
Voltage to 32V

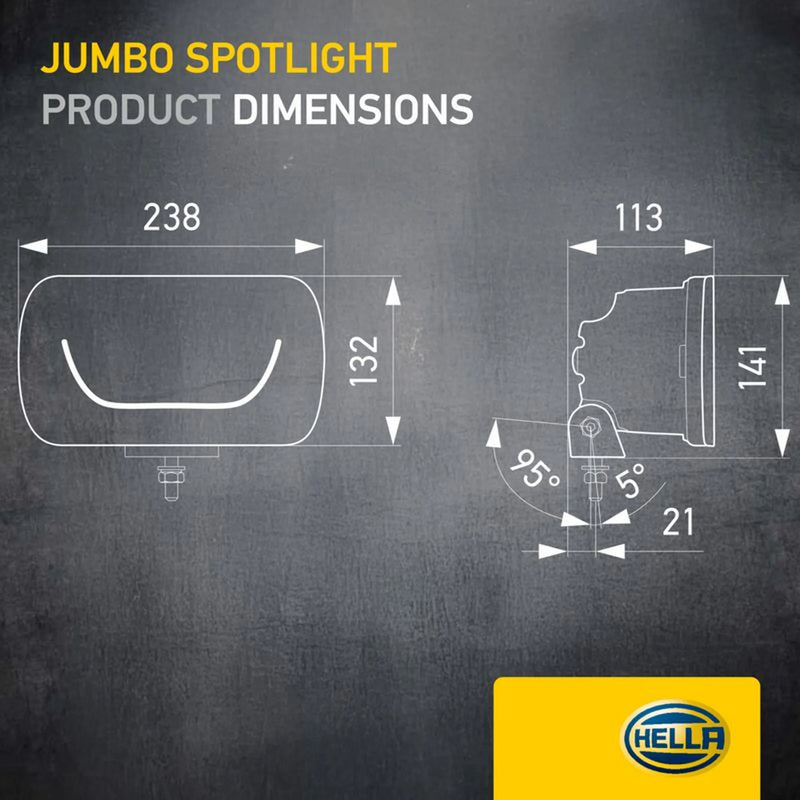

Height 132mm
Overall Height 141mm
Width 238mm
Depth 113mm
Fitting Depth 23mm
Weight 680g
Light Function with position light (LED)
Number of light functions 2
fulfils ECE standard R149
Reference number 25
Cable Length 800mm
Housing material Thermoplast
Housing Colour black

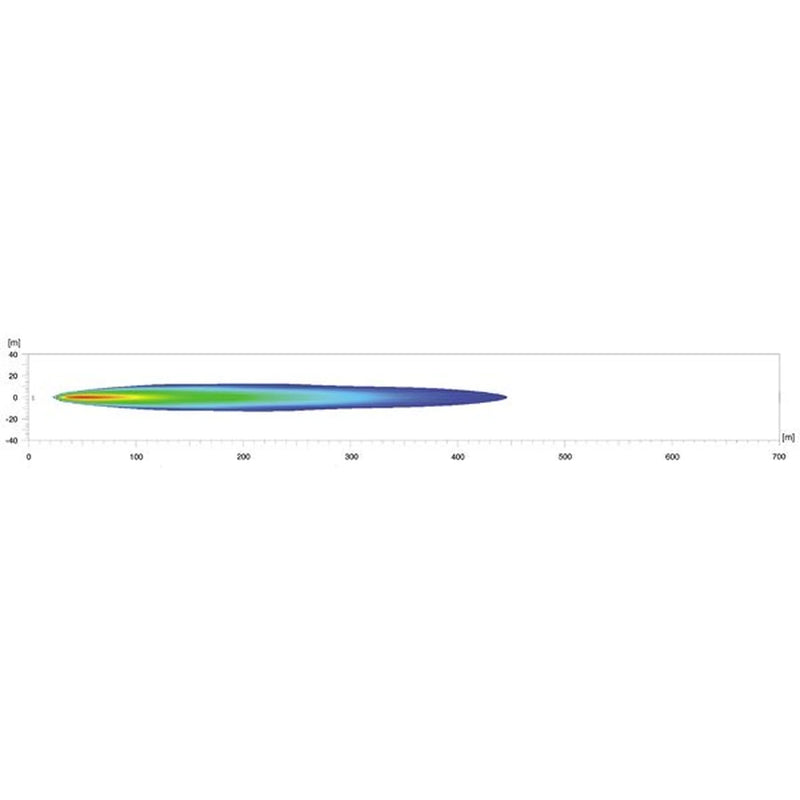

Light Distribution Long-range illumination
Light colour white
Lens Colour Crystal clear
Plug Type open cable ends
Protection Type (IP Code) IPX9K
Shape rectangular
Housing Type Synthetic Material Housing
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material Plastic
Luminous Flux 541 lm
Colour Temperature 6000 K
Registration Type ECE approved
Power Consumption 2.7W
Quantity 1
Manufacturer Part Number 1FE 016 773-011
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:

Make Reference
DAF 1546064
Liebherr 12105382
