by Hella
SKU 2XD 066 146-041-HEL
Sold out
£51.99 - £51.99
£51.99
£51.99 - £51.99
£51.99

Free Standard Delivery for Orders Over £40*

Available to Order

Order before 2pm — Est Delivery: 4-5 working days

Product Information

Description

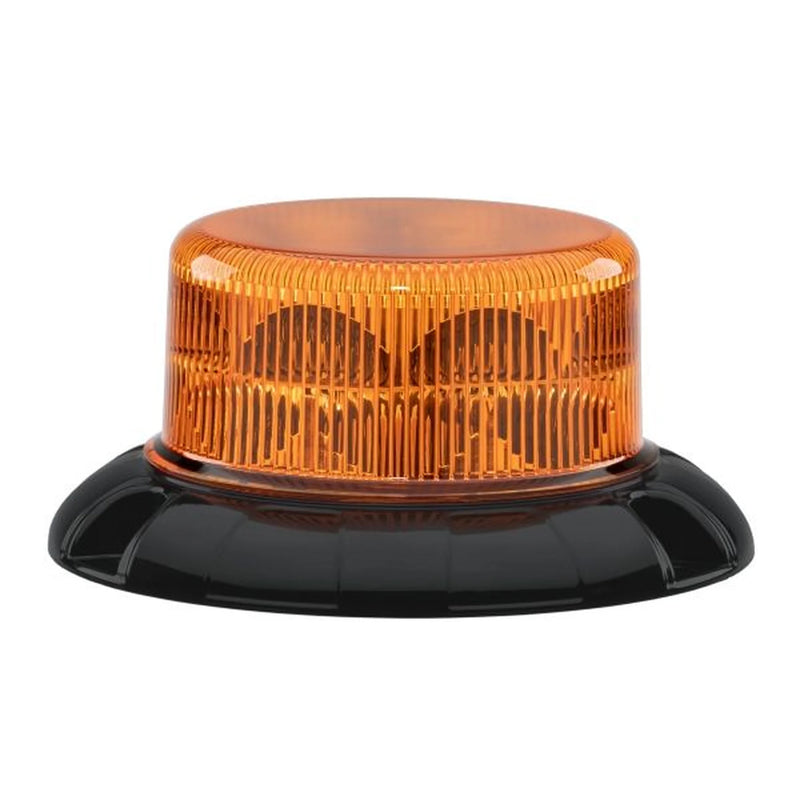

This Hella Strobe-type Beacon (Part Number 2XD 066 146-041) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type Strobe-type Beacon
Mounting Type Bolted
Voltage 24V
Lamp Type LED
Light Design LED

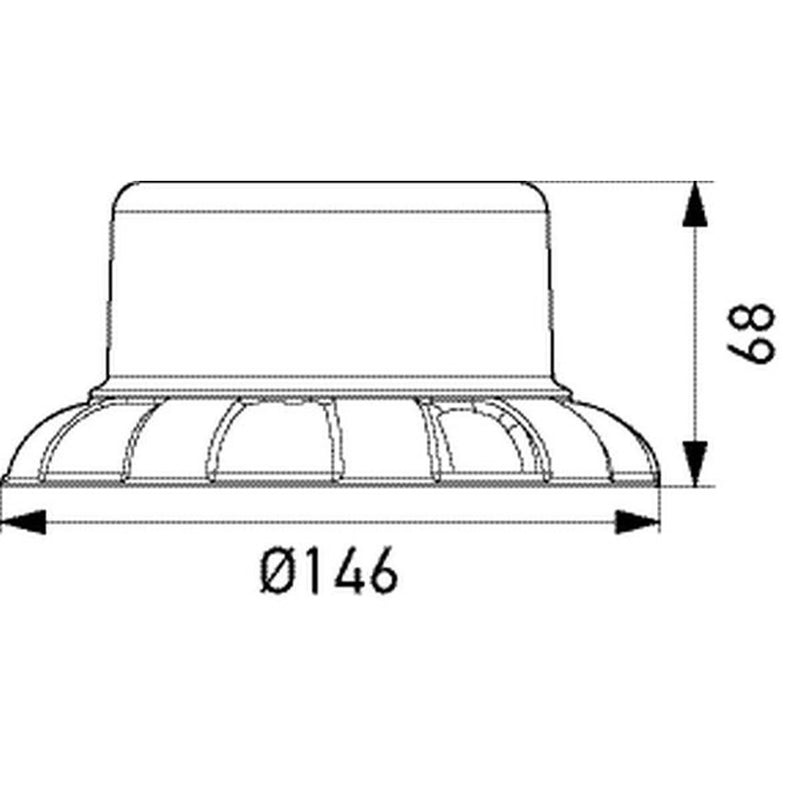

Height 68mm
Light Function with flashing warning signal
Flash rate per minute 126
Housing Colour black
Lens Colour yellow (amber)
Outer Diameter 1 146mm
Light colour yellow (amber)
Registration Type ICAO-tested
Protection Type (IP Code) IP6K9K
fulfils ECE standard R10
fulfils SAE standard J845 Class 1
fulfils EMC/CISPR standard Class 5
Housing material ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Weight 256g
Timing Chain Size 150
Plug Type Blade Terminal
Number of LEDs 16
Operating temperature from -40°C
Operating temperature to +60°C
Power Consumption 19W
Diffusing Lens Material PC (Polycarbonate)
Manufacturer Part Number 2XD 066 146-041
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

Why Buy Hella?

Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.

  • OE-quality construction
  • Tested to manufacturer specifications
  • Trusted by professional workshops
  • Backed by manufacturer warranty
