Hella Tail Light / Lamp R10W Left 2SD 001 680-271

Hella Tail Light / Lamp R10W Left 2SD 001 680-271

Name: Hella Tail Light / Lamp R10W Left 2SD 001 680-271
Brand: Hella
SKU: 2SD 001 680-271-HEL
Price: 24.99 GBP
Availability: InStock

by Hella

SKU 2SD 001 680-271-HEL

£24.99 - £24.99

£24.99

£24.99 - £24.99

£24.99

Free Standard Delivery for Orders Over £40*

Description

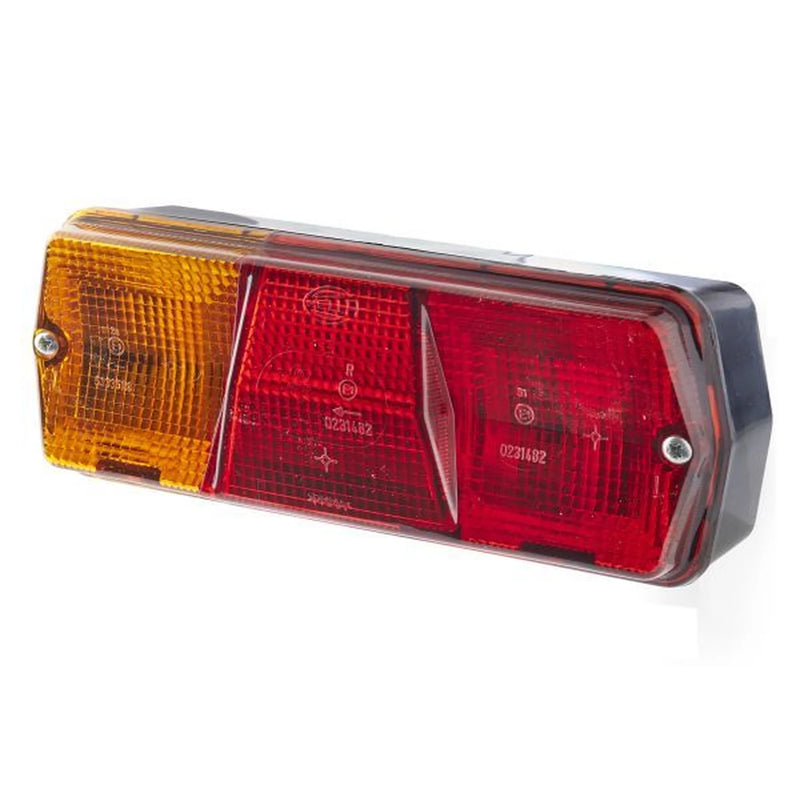

This Hella Tail Light Assembly (Part Number 2SD 001 680-271) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications

Brand	Hella
Part Type	Tail Light Assembly
Position	Left
Fitting Position	Left

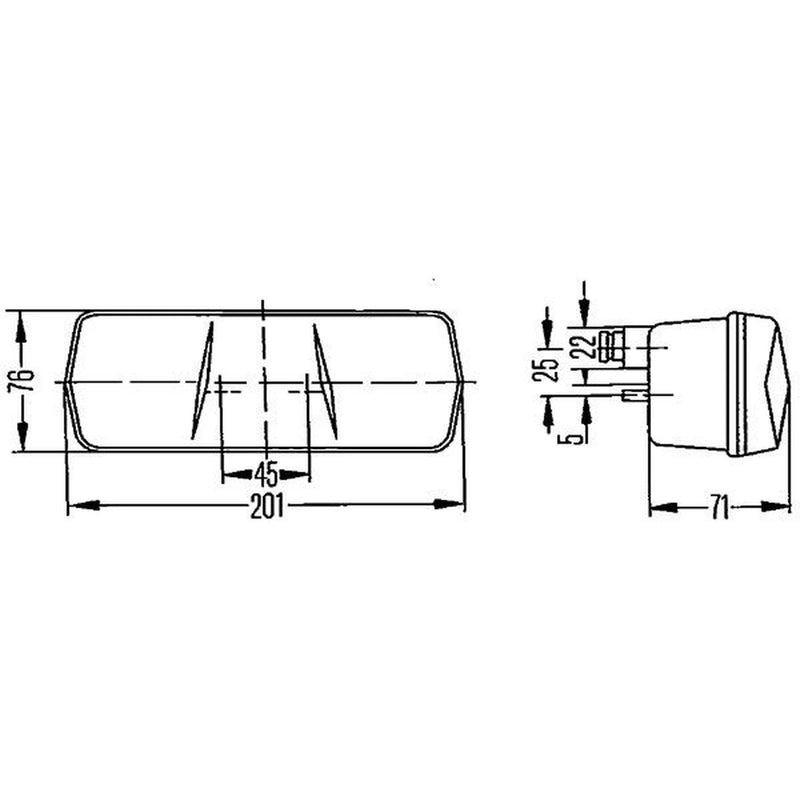

Width	201mm
Height	76mm
Mounting Type	mounting
Supplementary Article/Supplementary Info 2	without bulbs
Supplementary Article/Supplementary Info	with bulb holder
Registration Type	CCC approved
Voltage	24V
Number of light functions	3
Fastening Type	for horizontal fastening
Lens Colour (direction indicator)	yellow (amber)
Housing Colour	black
Light Design	Halogen
Lamp Type	R10W
Light Function	with taillight
paired article number	2SD 001 680-281
Manufacturer Part Number	2SD 001 680-271

Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

Make	Model	Years
Mercedes-Benz	O 309	1968-1989

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:

Make	Reference
Aebi	0230066-3
Auwärter	825-KSL012
Bucher	4013152, 7-653-3710
Case Ih	3221209R92
DAF	867484, 971003
Doll	8176117
Feldbinder	1034492
Goldhofer	202007
Kögel	77779
Land Rover	10724
Linde	576 204 80 01
Mercedes-Benz	001 544 15 03, 002 544 13 03, A 001 544 15 03, A 002 544 13 03
Opel	26 60 078, V26600780
Reisch	5002582
Rosenbauer	022343
Scania	1942134
Schmitz Cargobull	060594
Schwarzmüller	96837
Sommer	1402001680271
Tata	48 084 39 033
Terberg-Benschop	T25021388
Terex	3511850601
Yanmar	900588
