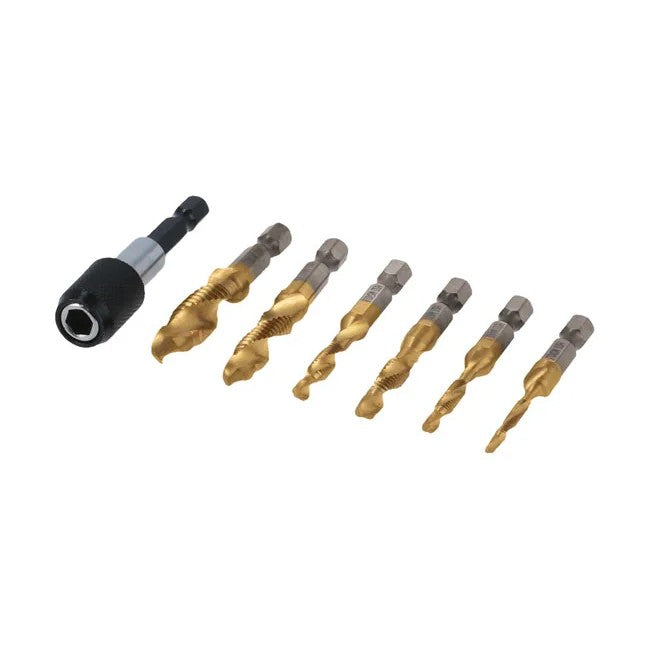

Laser Tools Combination Drill & Tap Bit Set 7pc - PL

Laser Tools Combination Drill & Tap Bit Set 7pc - PL

by Laser Tools
SKU 8405-LAS
£30.54 - £30.54
£30.54
£30.54 - £30.54
£30.54

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

A set of 6 combined drill tap bits designed to drill and tap a hole in a single pass. Each bit has been manufactured from high speed steel (HSS) with a Titanium-Nitride coating for hardness, rust resistance and longevity. The tap bits feature a drill section at the end of each bit which forms the perfect sized tap hole in the material for the following tap section to then cut the threads into, together with spiral flutes to clear the swarf created; plus a deburring shoulder to ensure the edge of the hole is finished without any sharp edges. The set also includes a 60mm long magnetic bit holder with a quick-chuck end for ease of use.

Features
  • 6x tap drill bits with 1/4" Hex drive: M3 x 0.5 (max 400rpm), M4 x 0.7 (max 400rpm), M5 x 0.8 (max 350rpm), M6 x 1.0 (max 300rpm), M8 x 1.25 (max 250rpm) and M10 x 1.5mm (max 200rpm). NOTE: The max rpm is a guide for use on wood and plastic only.
  • Supplied with a magnetic bit holder. Length: 60mm.
  • Suitable for drilling and tapping iron or carbon steel plate up to 3mm thick and aluminium or copper plate up to 6mm thick.
  • Bits manufactured from HSS4241 with Titanium-Nitride coating and quick chuck ends. Supplied in a storage case.
  • Spares available, Part Nos. 61871 (M3 x 0.5mm), 61872 (M4 x 0.7mm), 61873 (M5 x 0.8mm), 61867 (M6 x 1.0mm), 61868 (M8 x 1.25mm) and 61869 (M10 x 1.5mm). Note: manual tapping is not recommended, as this will affect the precise concentricity and adversly affect the product performance life.
Specifications
Brand Laser Tools
EAN 5018341084059
Type Drill Bit Sets
Sub-Type Rethreading
Item Weight 0.173 kg
Custom Bundle No
Item Width 106mm
Item Height 37mm
Item Depth 120mm
Country/Region of Manufacture China
Customs Tariff Number 82076030
Number in Set 7
Manufacturer Part Number (MPN) PL
