Laser Tools Digital Clamp Meter CAT III - 600V - PL

Laser Tools Digital Clamp Meter CAT III - 600V - PL

by Laser Tools
SKU 8820-LAS
£98.02 - £98.02
£98.02
£98.02 - £98.02
£98.02

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

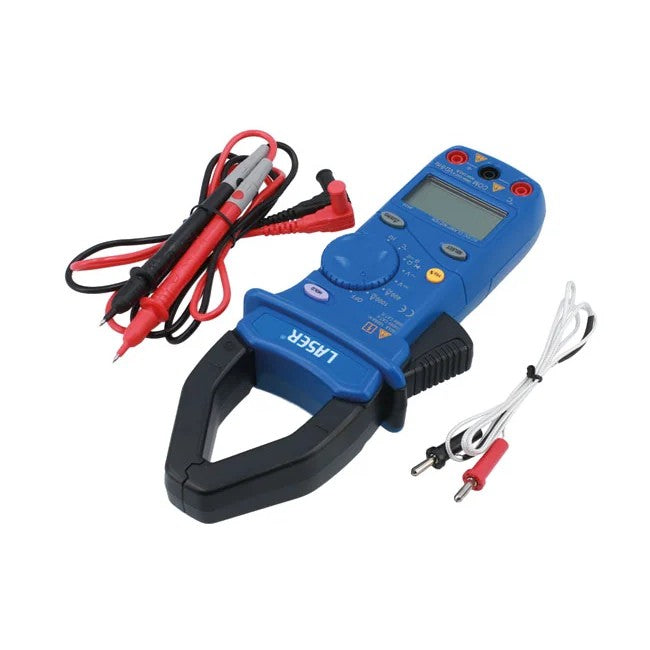

This CAT III auto-ranging clamp meter is for measuring voltages, current, resistance, diodes, continuity, capacitance, frequency and temperatures on both AC and DC electrical systems and equipment. The amps clamp design allows for safe measurement of high draw currents (up to 400 amps) without the need to disconnect the circuit, making it ideal for checking starter motor amps draw and alternator output when under load. It features an easy to read LCD screen, a large clamp with an opening diameter of 42mm, and is supplied with test leads, temperature probe and a protective carry case. For lower non-contact current measurement (4 to 80A) see Laser Part No. 6551.

Features
  • Features: Auto-ranging, data hold function, diode test, continuity, relative measurement, low battery indicator.
  • Size: 44 x 89 x 248mm. Clamp opening range: 42mm.
  • DC voltage: 400mV, 4V, 40V, 400V (accuracy; ±0.7% + 1), 1000V (±0.8% + 3). AC voltage: 4V, 40V, 400V (±0.8% + 5), 750V (±1% + 10). DC current: 400A, 1000A (±3% + 3). AC current: 400A, 1000A (±3% + 3).
  • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ (accuracy; ±1.2% + 1), 40 MΩ (±2% + 3). Frequency: 40, 400, 4k, 40k, 100kHz (±2% + 1). Capacitance: 4nF, 40nF, 400nF, 4μF, 40μF, 100μF (±4.0%+10). Temperature: -40 ~ 0°C (accuracy; ±1.0% + 6), 0 ~ 400°C (±1.0% + 3), 400 ~ 750°C (±1.0% + 5).
  • Supplied with test leads, test & temperature probes, carry case & 9V battery. CE compliant. CAT III.
Specifications
Brand Laser Tools
EAN 5018341088200
Type Clamp Meters
Item Weight 0.086 kg
Custom Bundle No
Item Width 130mm
Item Height 59mm
Item Depth 273mm
Country/Region of Manufacture China
Customs Tariff Number 90303100
Voltage 600V
Application Automotive
Manufacturer Part Number (MPN) PL
