Laser Tools Fork Cap Socket - Öhlins NPX-43 Honda/Triumph - PL

Laser Tools Fork Cap Socket - Öhlins NPX-43 Honda/Triumph - PL

by Laser Tools
SKU 9091-LAS
Sold out
£57.39 - £57.39
£57.39
£57.39 - £57.39
£57.39

Free Standard Delivery for Orders Over £40*

Product Information

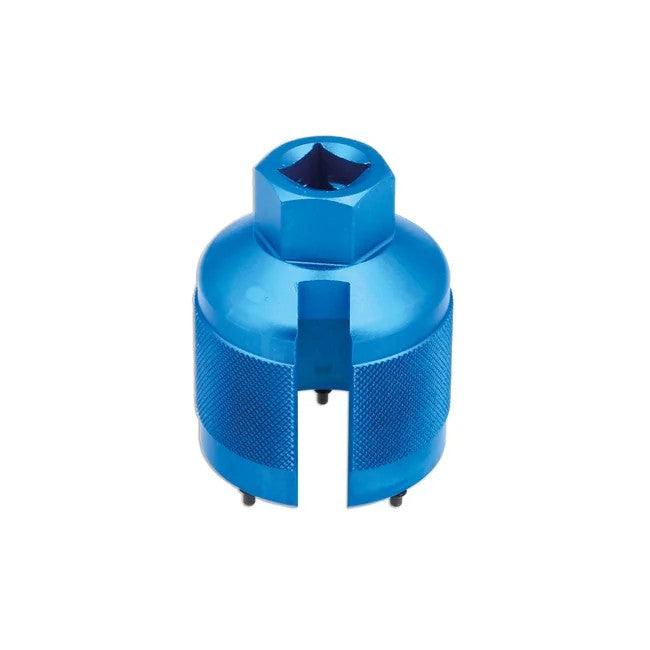

Specially designed to fit the fork caps found on the Öhlins NPX 43 forks fitted with Smart Electronic Control (S-EC). The socket has seven pin configuration with a 10mm wiring slot to allow the socket to fit snugly over the fork control wiring harness. The fork cap has 8 holes however only 7 can be used to allow for the harness slot.

Features
  • Applications include: Honda CBR 1000RR-R SP (from 2022), Triumph Speed Triple 1200 RR (from 2022).
  • 7 x 2.3mm pins, 42mm PCD, 10mm sensor wiring slot.
  • Aluminium body with steel pins protected by rubber base rings.
  • Use with 1/2"D socketry or 24mm ring spanner. Not suitable for impact use.
  • NOTE: Always loosen the top yoke (triple trees) fork tube clamps before attempting to loosen the cap.
Specifications
Brand Laser Tools
EAN 5018341090913
Type Strut Nut Sockets
Item Weight 0.155 kg
Custom Bundle No
Item Width 110mm
Item Height 50mm
Item Depth 195mm
Country/Region of Manufacture Taiwan Province of China
Customs Tariff Number 82042000
Application Electrical
Manufacturer Part Number (MPN) PL
