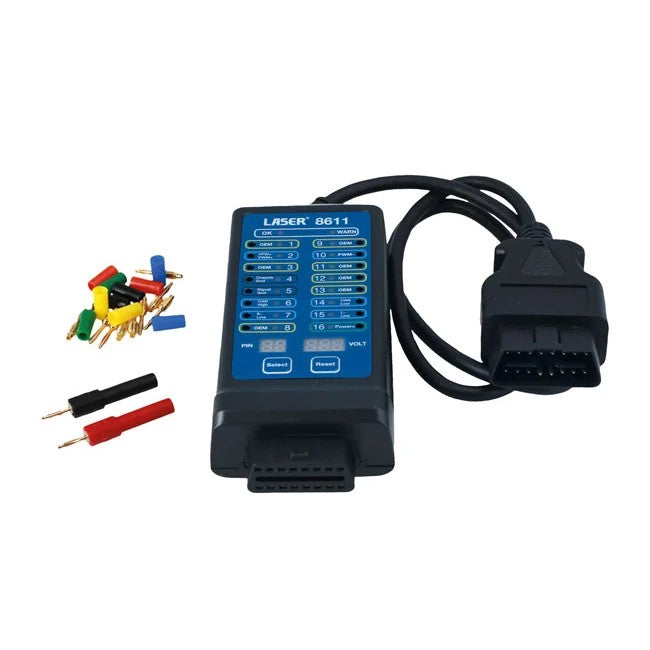

Laser Tools OBD Breakout Box & Signal Detector - PL

Laser Tools OBD Breakout Box & Signal Detector - PL

by Laser Tools
SKU 8611-LAS
£109.90 - £109.90
£109.90
£109.90 - £109.90
£109.90

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

A vehicle OBD (On Board Diagnostic) socket protocol signal identifier and break out box designed to be used in series with OBDII/EOBDII diagnostic equipment. The Laser 8611 allows the technician to test the signal data via an oscilloscope or multimeter whilst also accessing the vehicles on-board diagnostic data using the 16 pin OBD socket on the breakout box. This box also features a digital readout that allows the user to switch between the pins to identify whether the pins are live or earth and what type of voltage they carry.

Features
  • Compatible with 12 & 24V systems; plugs directly into the vehicles OBD socket.
  • Can be used with meter probes or 2mm & 4mm banana probes - adaptors included.
  • Selectable pin voltage digital indicator. Pin 16 is fused to protect diagnostic equipment from vehicle wiring errors.
  • Protocol indicator lights on appropriate pins - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2=VPW+, PWM+, Pin 10 PWM-, Pin 7 K_LINE & Pin 15 L_LINE.
  • Instruction manual included.
Specifications
Brand Laser Tools
EAN 5018341086114
Type Code Readers
Item Weight 0.341 kg
Custom Bundle No
Item Width 131mm
Item Height 47mm
Item Depth 186mm
Country/Region of Manufacture Taiwan Province of China
Customs Tariff Number 90318080
Application Automotive
Manufacturer Part Number (MPN) PL
