Laser Tools Short Circuit Diagnostic Kit 16pc - PL

Laser Tools Short Circuit Diagnostic Kit 16pc - PL

by Laser Tools
SKU 7386-LAS
£72.99 - £72.99
£72.99
£72.99 - £72.99
£72.99

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

Tracing a short circuit can be a very time consuming exercise. This Short Circuit Diagnostic Kit provides a solution in the form of a set of circuit breaker fuses, designed to fit in place of the traditional fuse. The circuit breaker will safely break the circuit when an overload is detected, just like a conventional fuse, but it is also manually resettable, allowing the technician to reset the circuit breaker fuse to run their tests as many times as they need.

Features

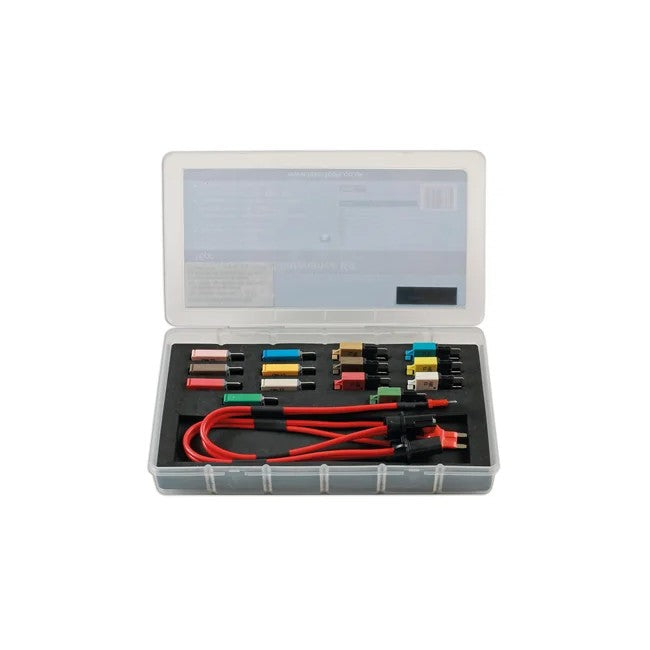

  • Contents includes: 7 standard blade manually resettable circuit breaker fuses & 7 mini blade manually resettable circuit breaker fuses.
  • Fuse ranges: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A.
  • Supplied with two, 300mm (12”) extension loop leads for better access for use with both blade sizes.
  • Manufactured to: SAE J553 (TYPE I & II & III) Circuit Breakers.
  • Ideal for use with Laser Part No. 6551 - Digital Amps Clamp. For re-settable standard fuse kit only, please see Laser Part No. 7387.
Specifications
Brand Laser Tools
EAN 5018341073862
Type Fuses & Relays
Item Weight 0.224 kg
Custom Bundle No
Item Width 120mm
Item Height 35mm
Item Depth 215mm
Country/Region of Manufacture Taiwan Province of China
Customs Tariff Number 85362010
Sub-Type TEST
Number in Set 16
Manufacturer Part Number (MPN) PL
