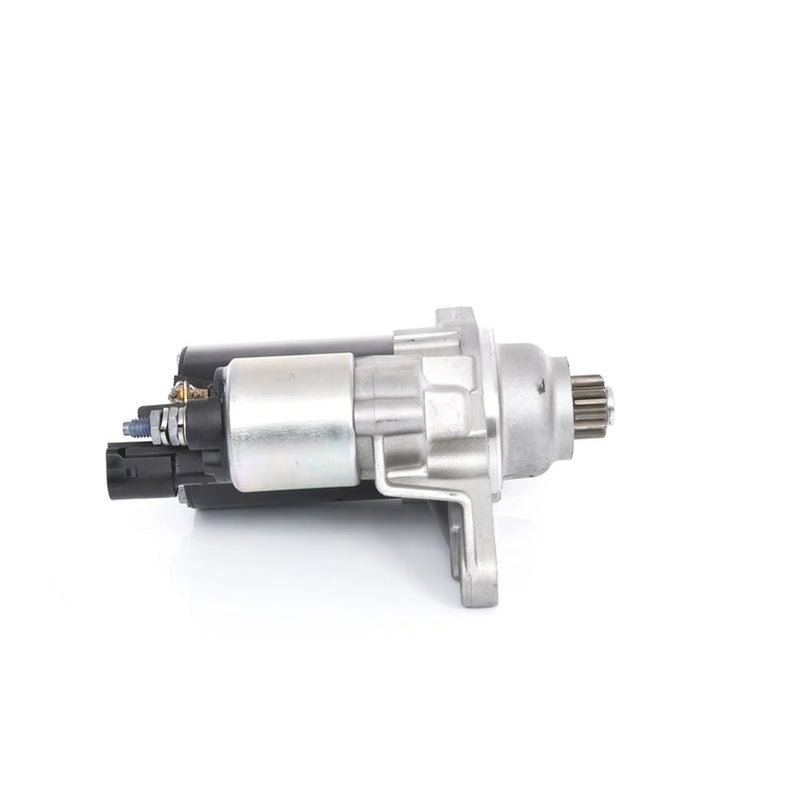

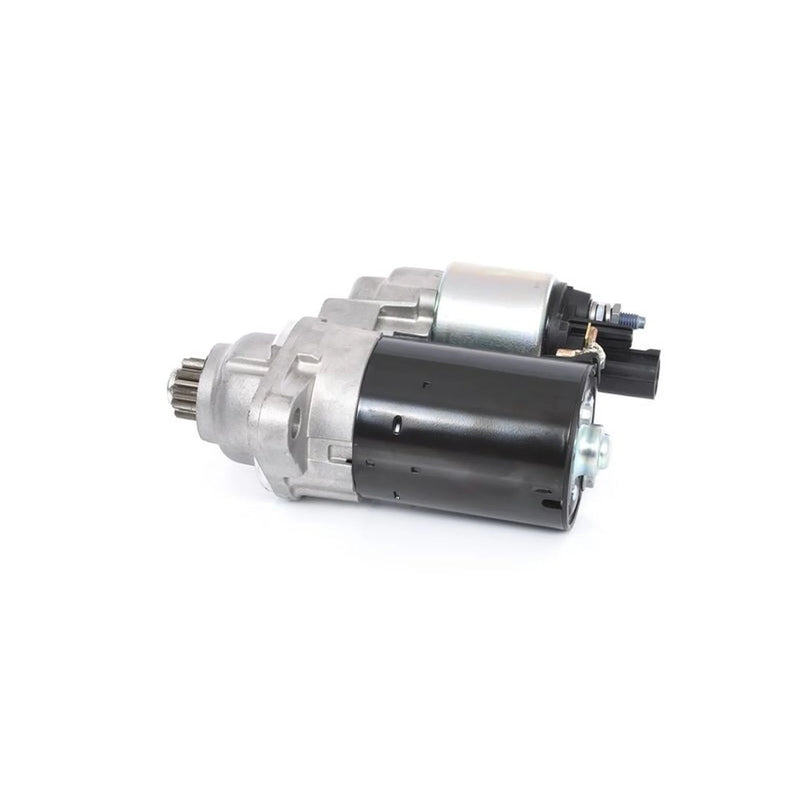

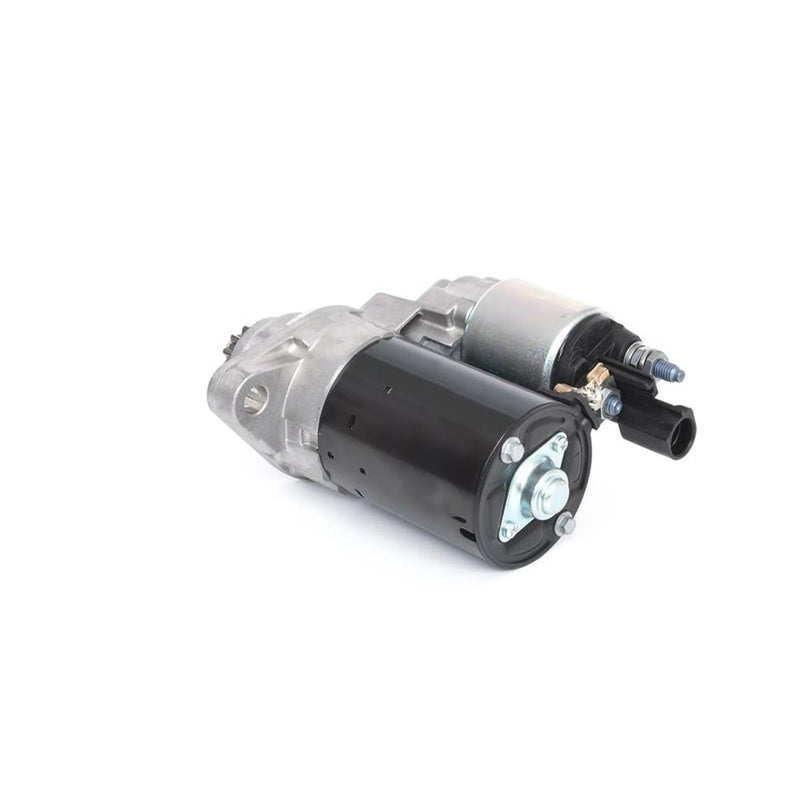

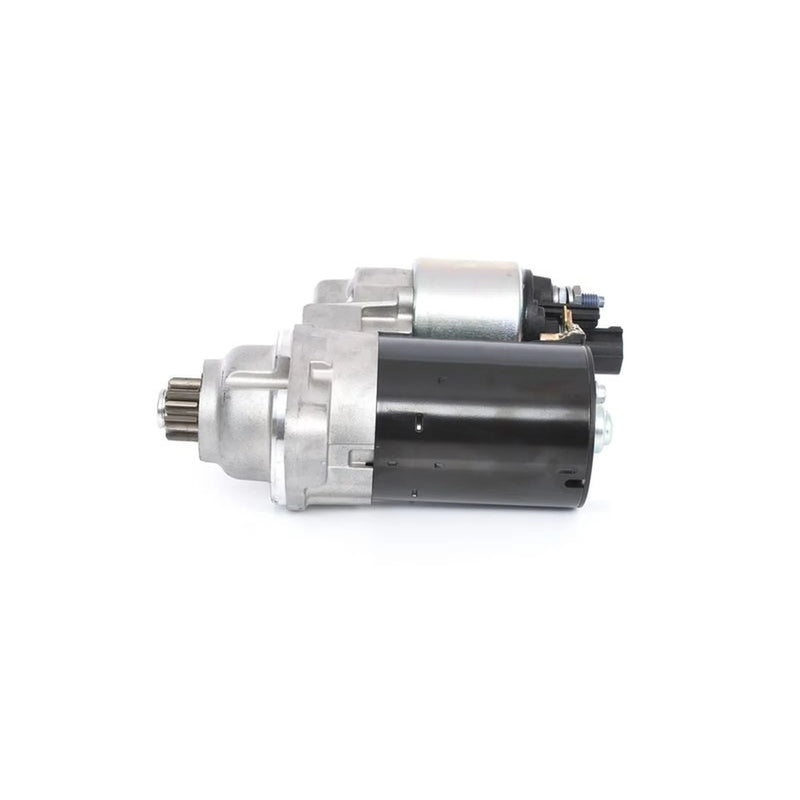

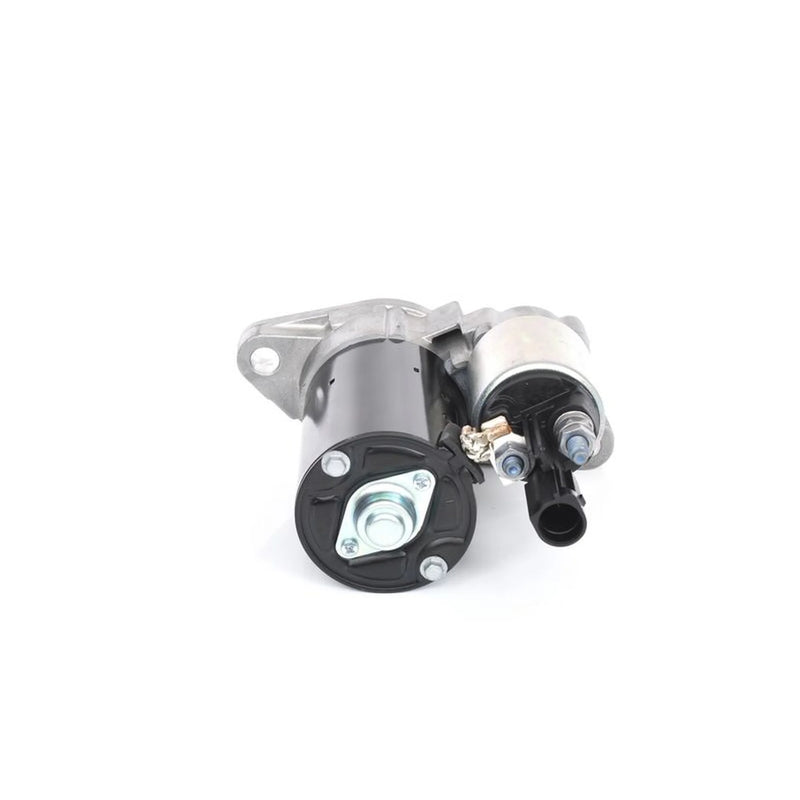

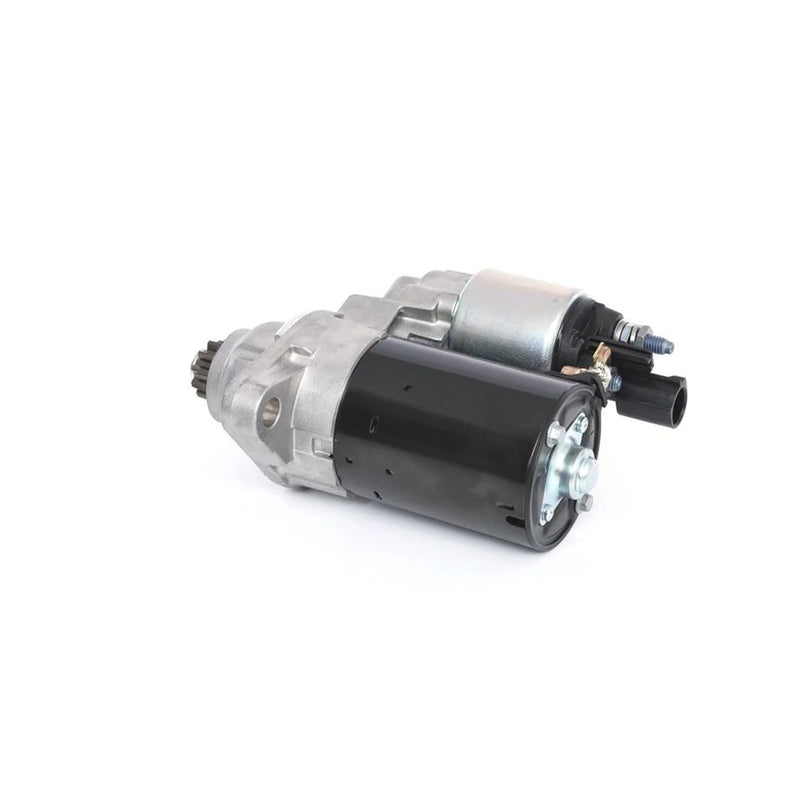

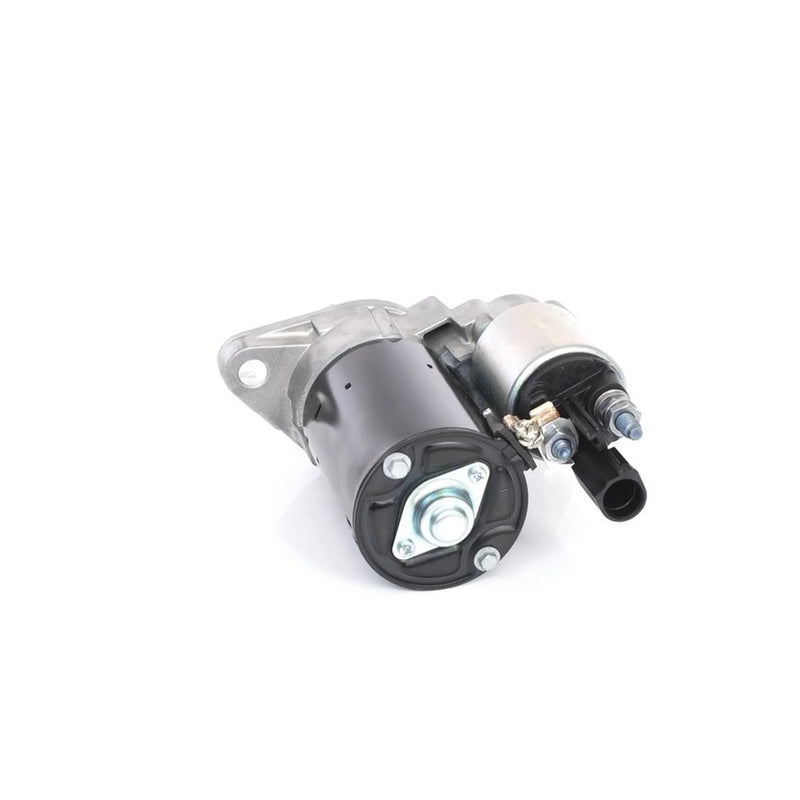

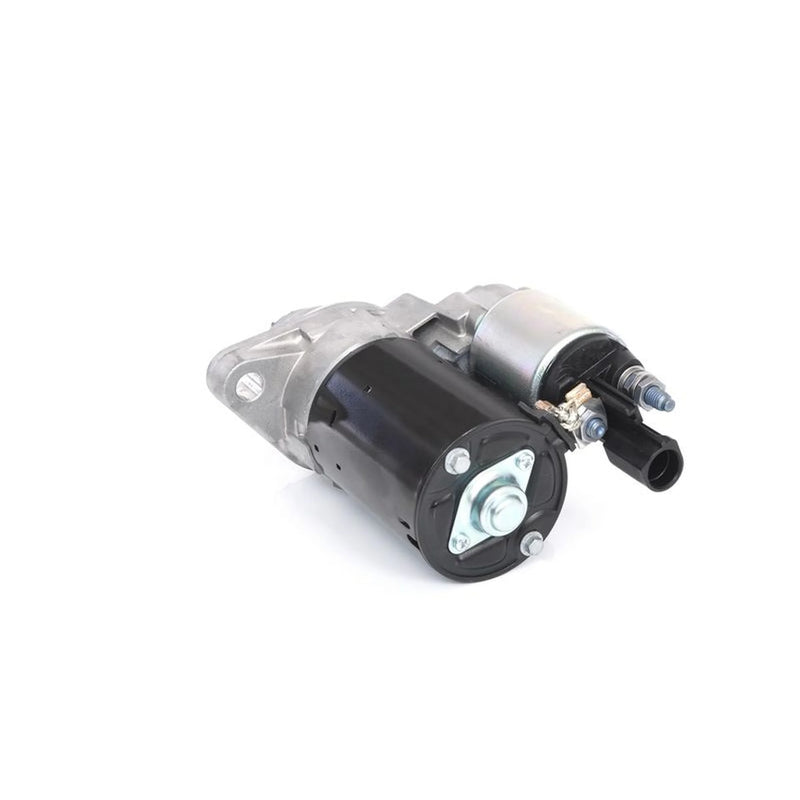

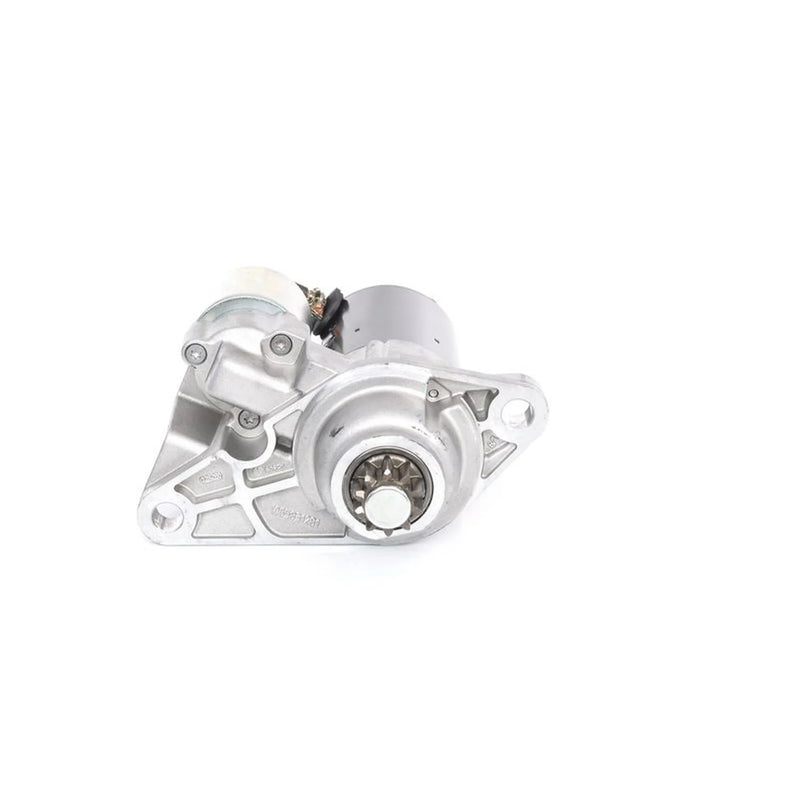

This Bosch Starter (Part Number 0 001 120 406) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

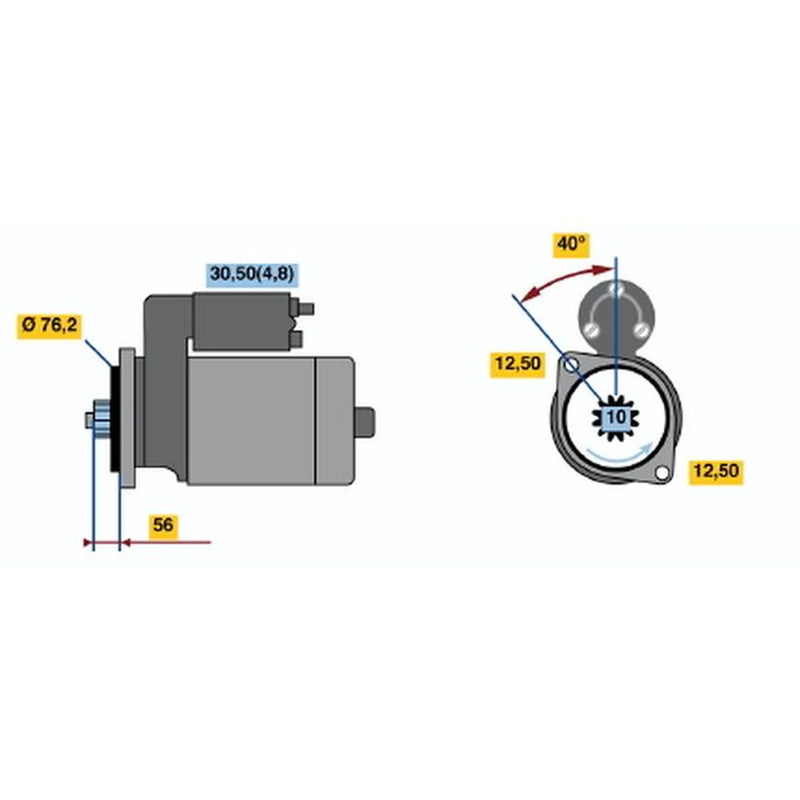

Specifications
Brand
Bosch
Part Type
Starter
Voltage
12V
Rated Power
1kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
10
Clamp
30
Flange Diameter
76.2mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.5mm
Starter Type
Floating pinion
Bore Diameter
12.5mm
Bore Diameter 2
12.5mm
Length
195mm
Position/Degree
links
Mounting Angle
40 degrees
Mounting bore angle measurement
40 degree
Manufacturer Part Number
0 001 120 406
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
Make
Reference
Audi
02T 911 023 R
SEAT
02T 911 023 R
Skoda
02T 911 023 R
VW
02T 911 023 R
