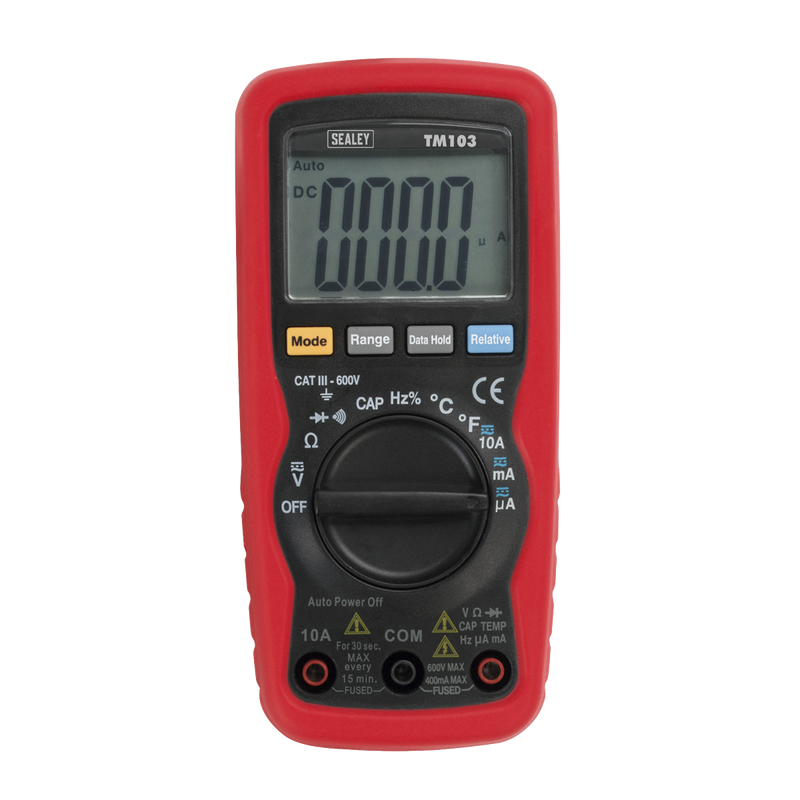

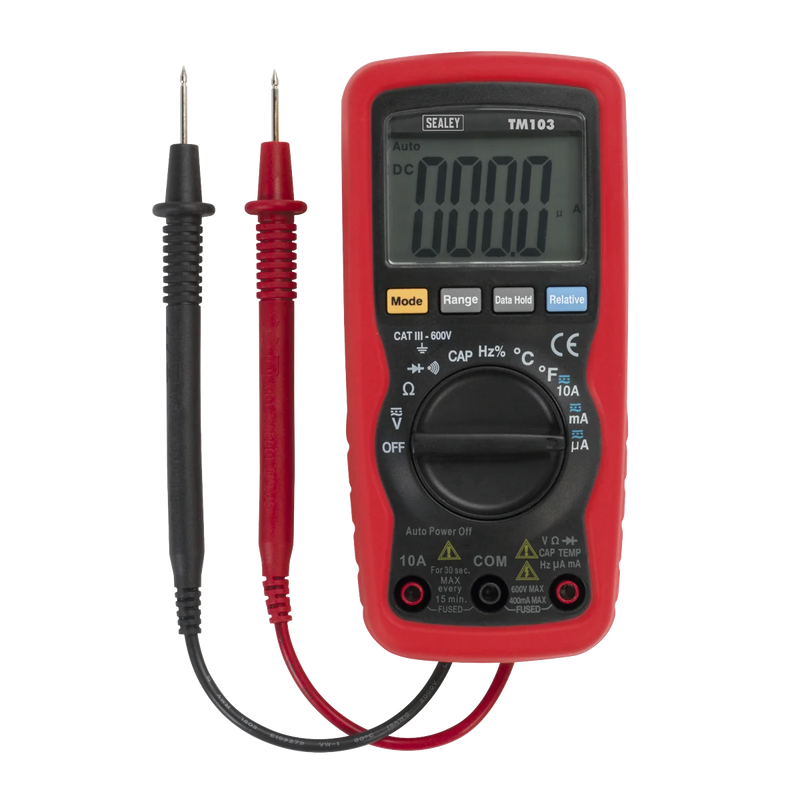

Sealey 11-Function Digital Multimeter TM103 600V AC/DC
Sealey 11-Function Digital Multimeter TM103 600V AC/DC

Sealey 11-Function Digital Multimeter TM103 600V AC/DC

by Sealey
SKU TM103-SEA
Sold out
£80.99 - £80.99
£80.99
£80.99 - £80.99
£80.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey TM103 Digital Multimeter is a professional-grade tool designed for accurate electrical measurements. With its auto-ranging feature, this multimeter can handle a variety of tasks with precision.

  • 11 Functions: Measures AC/DC voltage, current, resistance, capacitance, and temperature.
  • High Accuracy: AC voltage accuracy up to ±2% for 600V, DC voltage accuracy up to ±1.5% for 600V.
  • Durable Design: Comes with a hi-impact rubber case for protection and a large display for easy reading.
  • Convenient Features: Includes data-hold, auto-power-off, and low battery indicator.
  • Portable: Supplied in a zipped pouch with a carry strap for easy transport.
Specifications
Brand Sealey
EAN 5051747492905
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.47 kg
Custom Bundle No
Model No TM103
Nett Weight 255g
AC Voltage (Accuracy) 400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
DC Voltage (Accuracy) 0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
AC Current (Accuracy) 400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
DC Current (Accuracy) 400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy) 0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
Capacitance (Accuracy) 4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 100µF (±5%)
Temperature (Accuracy) -20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
Frequency (Accuracy) 9.999Hz to 9.999MHz
Duty Cycle 0.1%-99.9% (±1.2%)
Continuity Audible Yes
Diode Test Yes
Transistor Test No
Hi-Impact Rubber Case Yes
Digits x Height 2.1 x 24.5mm
Low Battery Indicator Yes
Battery (Supplied) 1 x 9V
Information Data-Hold & Auto-Power-Off
Size (L x W x D) 150 x 70 x 48mm
Weight 255g
Conformity EN 61010-1
Voltage 600V
Application Automotive
Manufacturer Part Number (MPN) TM103
