Sealey 12-Function Digital Automotive Multimeter TA302 600V
Sealey 12-Function Digital Automotive Multimeter TA302 600V
Sealey 12-Function Digital Automotive Multimeter TA302 600V

Sealey 12-Function Digital Automotive Multimeter TA302 600V

by Sealey
SKU TA302-SEA
Sold out
£99.99 - £99.99
£99.99
£99.99 - £99.99
£99.99

Free Standard Delivery for Orders Over £40*

Product Information

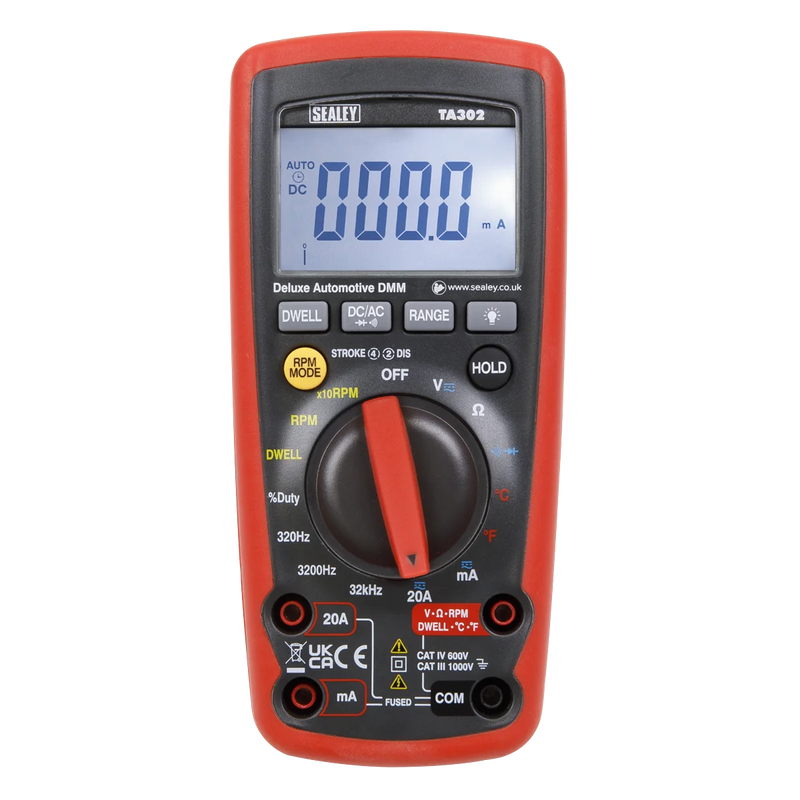

The Sealey TA302 12-Function Digital Automotive Multimeter is designed for comprehensive automotive diagnostics. It features a combination digital and bar graph display, providing accurate readings of various automotive parameters.

  • 12 functions including AC/DC voltage, current, resistance, and duty cycle.
  • Auto-ranging capability for quick and easy measurements.
  • Durable, workshop-tough case with an integral stand for convenience.
  • Bright backlit display for easy reading in low light conditions.

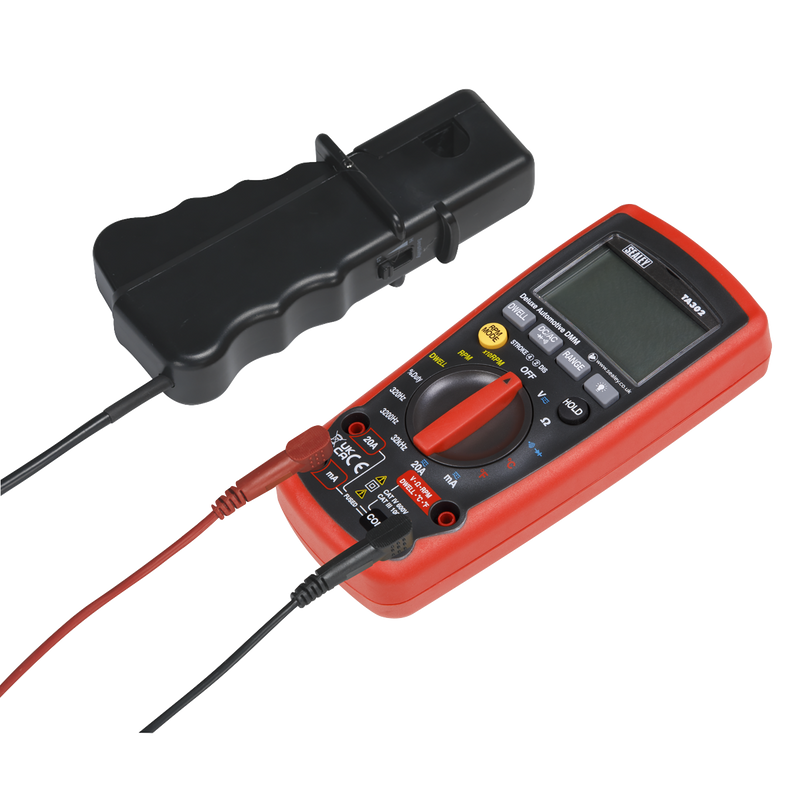

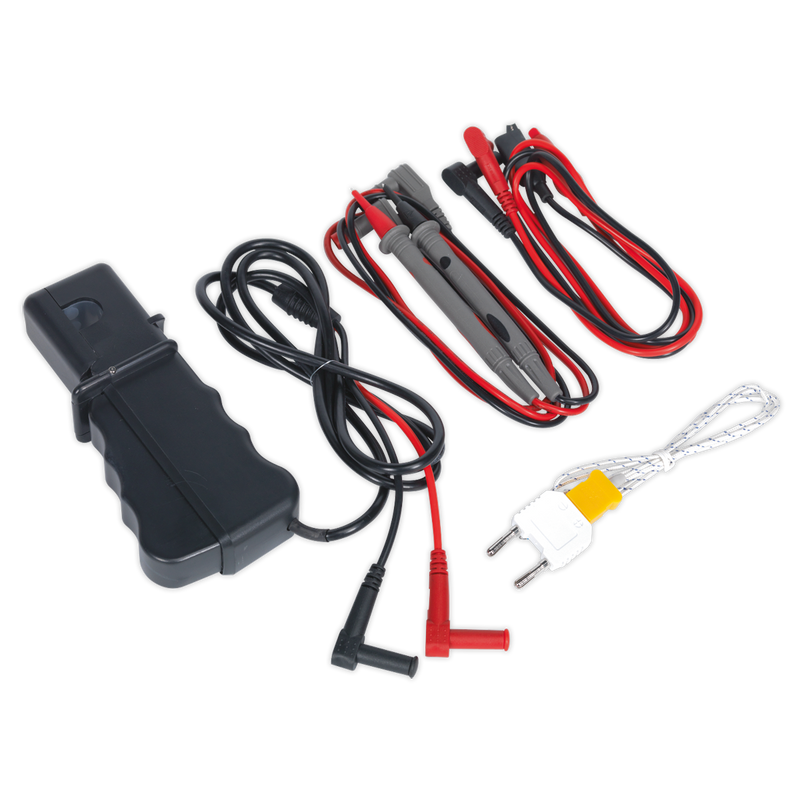

  • Includes an inductive coupler and test probes for immediate use.
Specifications
Brand Sealey
EAN 5051747600669
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 1.07 kg
Custom Bundle No
Model No TA302
Nett Weight 366g
Tach (rpm) 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
Dwell 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage 3.2V, 32V, 320V, 600V (Auto-Ranging)
DC Voltage 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
AC Current 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
DC Current 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
Capacitance No
Frequency 320Hz, 3200Hz, 32kHz (Auto-Ranging)
Duty Cycle 0.1-99.9%
Pulse Width No
Resistance 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
Continuity <35Ω Continuity Buzzer 2kHz
Temperature -20 to +760°C, -4 to +1400°F
IR Temperature No
Diode Check Yes
Transistor Test No
Back Light Yes
Bar Graph Display Yes
Display Hold Yes
Auto-Ranging Yes
Inductive Coupler Yes
PC Interface No
Digits Height 18mm
Auto Power Off n/a
Low Battery Indicator Yes
Batteries (supplied) 9V (PP3)
Hi-Impact Case Yes
Size (L x W x D) 167 x 79 x 50mm
Weight 366g
Voltage 600V
Application Automotive
Manufacturer Part Number (MPN) TA302
