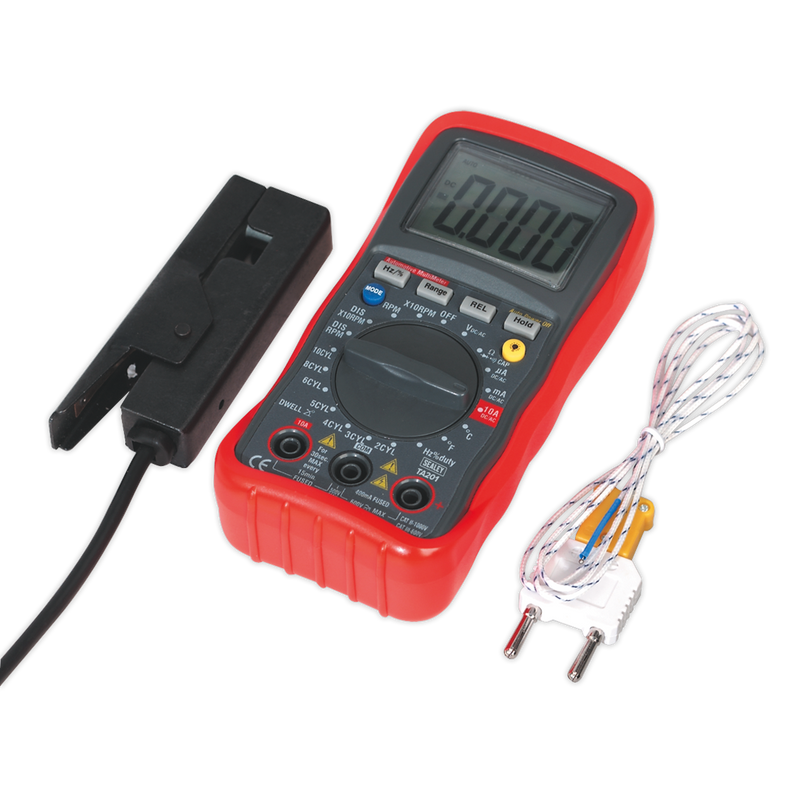

Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler
Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler
Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler
Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler
Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler
Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler

Sealey 13-Function Digital Automotive Multimeter TA201 with Inductive Coupler

by Sealey
SKU TA201-SEA
Sold out
£91.99 - £91.99
£91.99
£91.99 - £91.99
£91.99

Free Standard Delivery for Orders Over £40*

Product Information

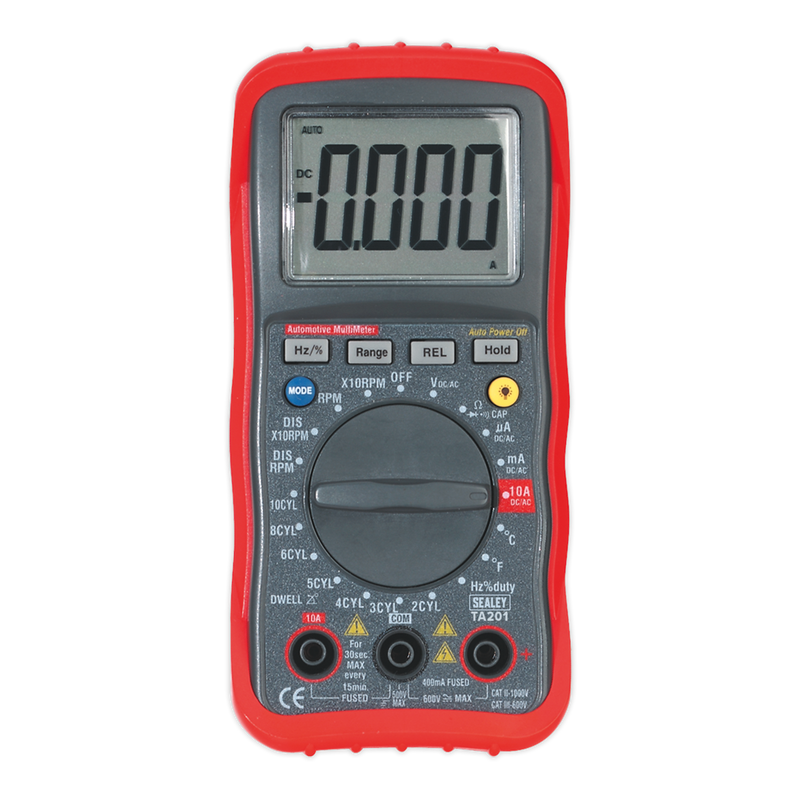

The Sealey 13-Function Digital Automotive Multimeter TA201 is designed for automotive diagnostics and electrical testing. This compact and user-friendly multimeter features a high-contrast LCD display with a backlight for easy reading in various lighting conditions.

  • 13 measurement functions including AC/DC voltage, current, resistance, capacitance, and temperature.
  • Auto-ranging capability for quick and accurate readings.

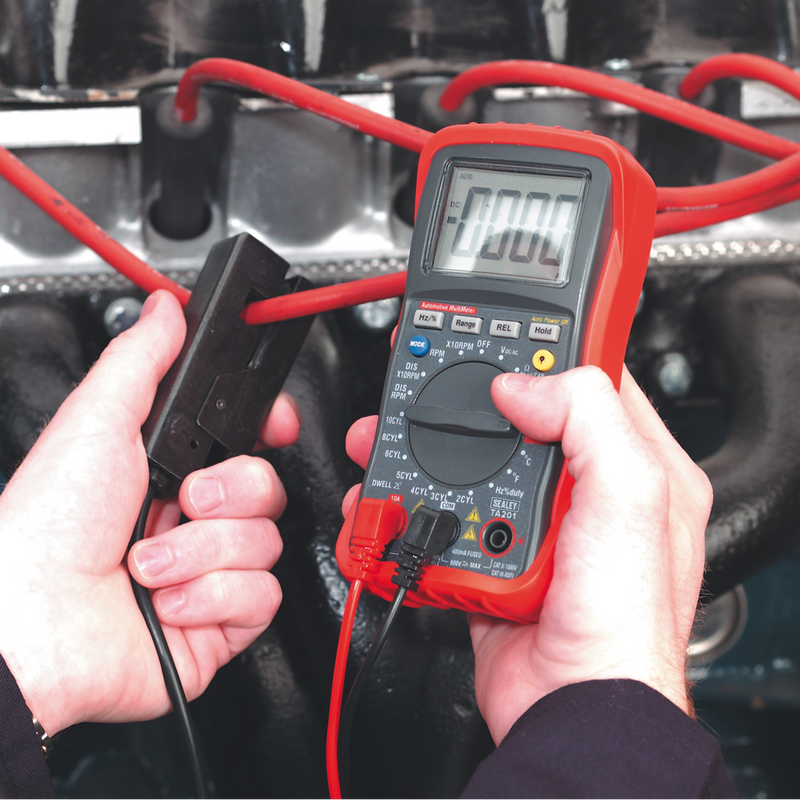

  • Inductive coupler included for fast and easy engine RPM readings.
  • Durable hi-impact case ensures protection during use.

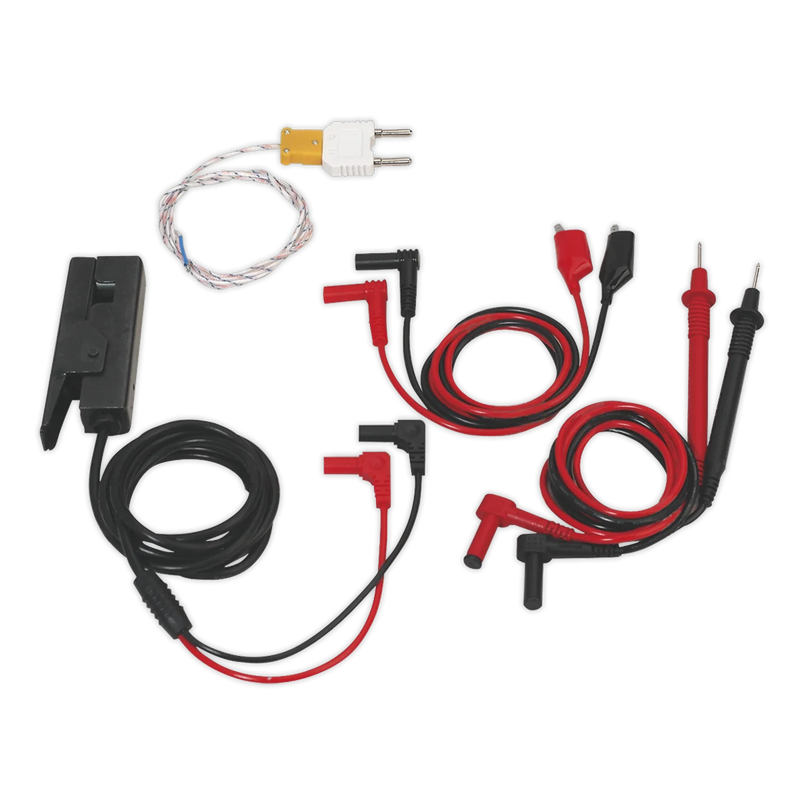

  • Supplied with probes, crocodile clips, and thermocouple leads for versatile connectivity.
  • Auto power-off feature to conserve battery life.
Specifications
Brand Sealey
EAN 5024209695374
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.77 kg
Custom Bundle No
Model No TA201
Nett Weight 330g
Tach (rpm) 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
AC Voltage 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
DC Voltage 400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
AC Current 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
DC Current 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
Capacitance 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Frequency 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
Duty Cycle 0.1-99.9%
Pulse Width No
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity <150Ω
Temperature -20 to +760°C/-4 to +1400°F
IR Temperature No
Diode Check Yes (Typical Test Current 0.3mA)
Transistor Test No
Back Light Yes
Bar Graph Display No
Display Hold Yes
Auto-Ranging Yes
Inductive Coupler Yes
PC Interface No
Digits Height 22mm
Auto Power Off Yes
Low Battery Indicator Yes
Batteries (supplied) 9V (PP3)
Hi-Impact Case Yes
Size (L x W x D) 146 x 66.2 x 41.5mm
Weight 330g
Application Automotive
Manufacturer Part Number (MPN) TA201
