Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph
Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph
Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph
Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph
Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph
Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph

Sealey 15-Function Digital Automotive Multimeter TA203 with Bar Graph

by Sealey
SKU TA203-SEA
Sold out
£168.99 - £168.99
£168.99
£168.99 - £168.99
£168.99

Free Standard Delivery for Orders Over £40*

Product Information

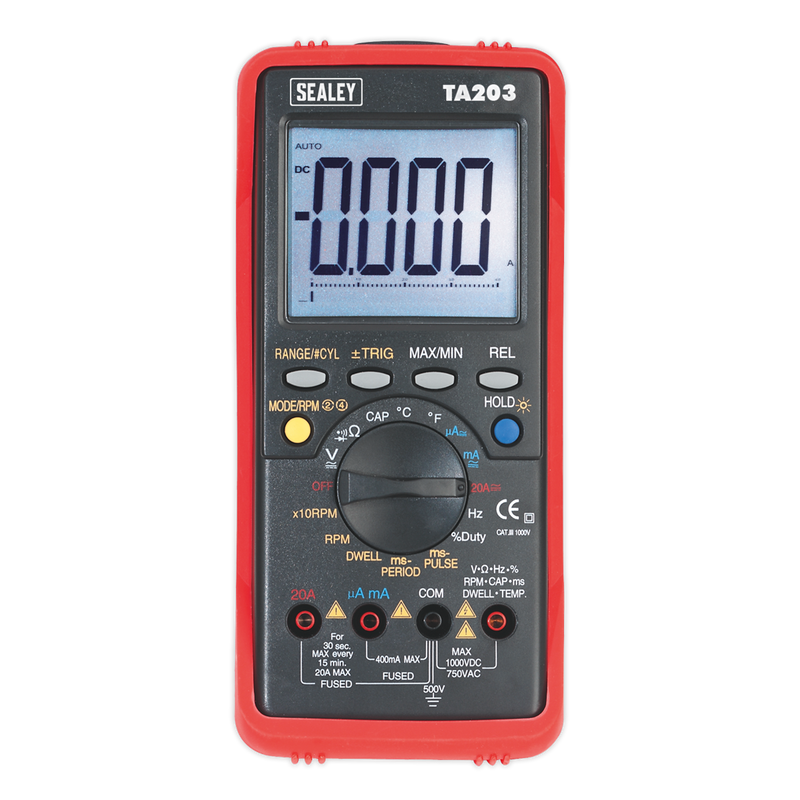

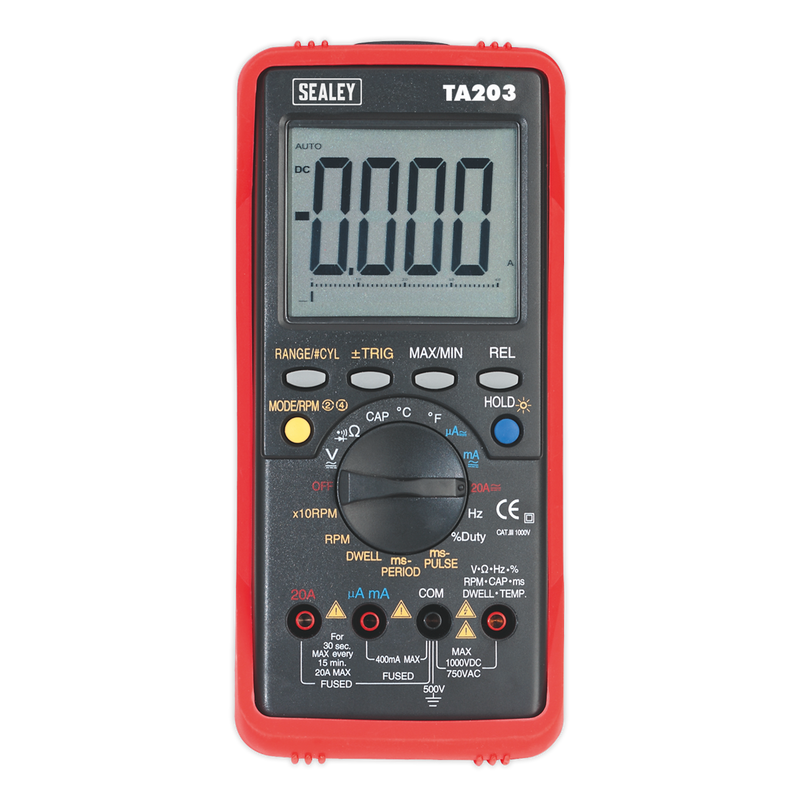

The Sealey 15-Function Digital Automotive Multimeter TA203 is designed for automotive professionals and enthusiasts alike. This multimeter features a large, high-contrast LCD display with a bar graph and backlight, making it easy to read in various lighting conditions.

  • 15 Functions: Includes measurements for AC/DC voltage, current, resistance, capacitance, frequency, and more.

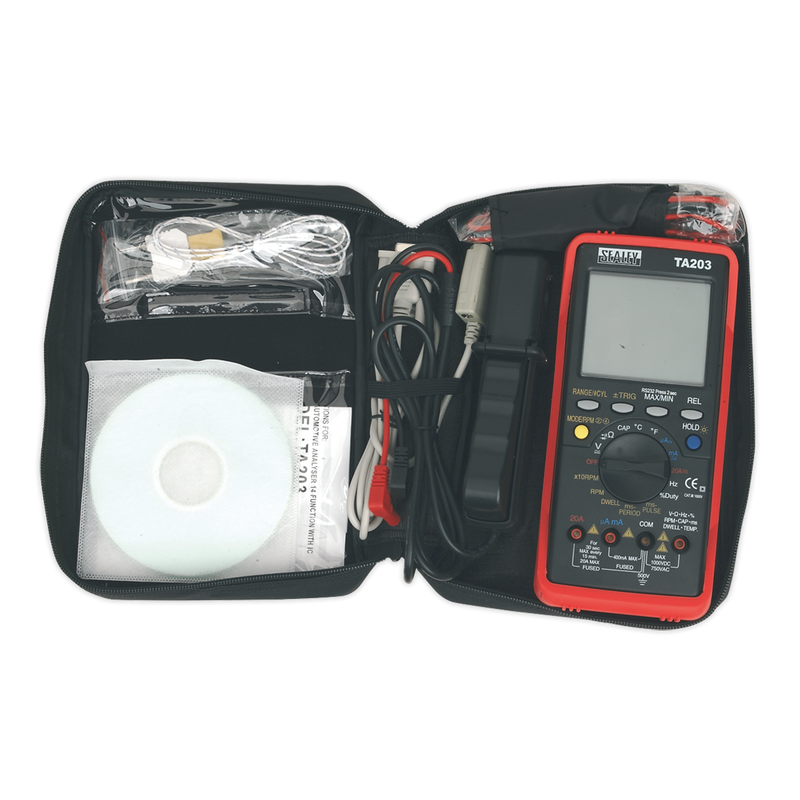

  • Durable Design: Built with a high-impact case that includes probe storage and an integral stand, perfect for tough workshop environments.
  • Auto-Ranging: Automatically selects the correct measurement range for ease of use.
  • Data Hold and Auto Power Off: Features to enhance user convenience and battery life.

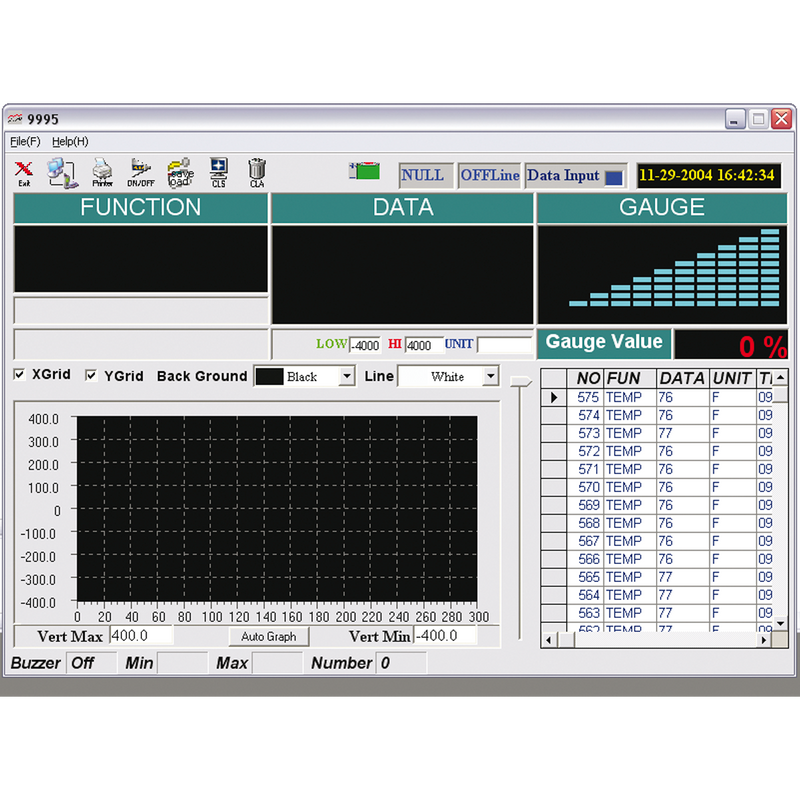

  • PC Interface: Comes with a USB cable and software for data download to your PC.

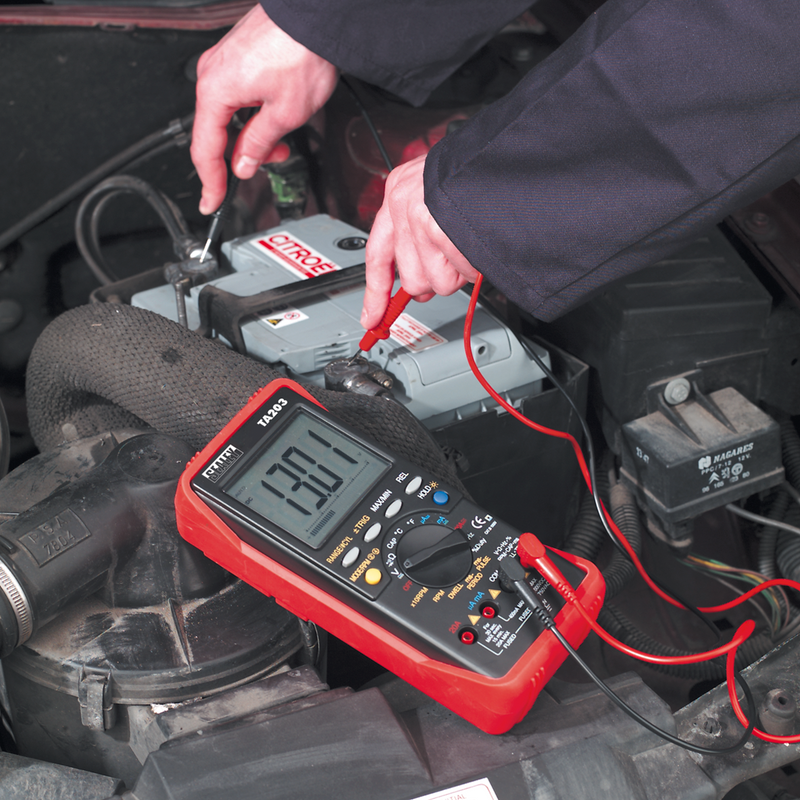

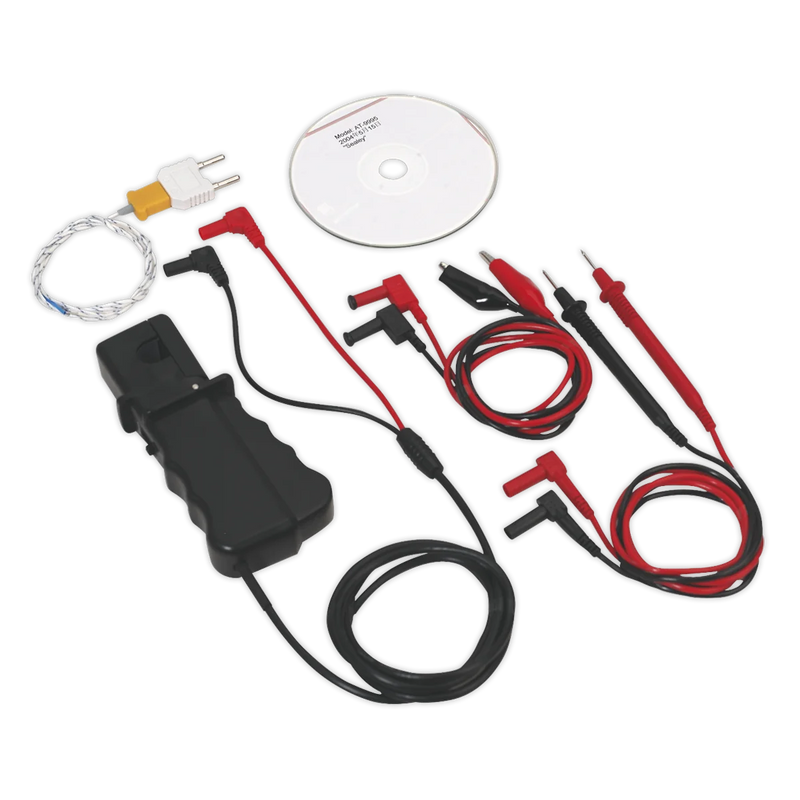

Whether you're testing lambda sensors or measuring engine RPM with the included inductive coupler, the Sealey TA203 is a reliable tool for accurate diagnostics.

Specifications
Brand Sealey
EAN 5024209700399
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 1.36 kg
Custom Bundle No
Model No TA203
Nett Weight 605g
Tach (rpm) 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30°
AC Voltage 400mV, 4V, 40V, 400V, 750V (Auto-Ranging, except 400mV)
DC Voltage 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
DC Current 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
Capacitance 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Frequency 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-Ranging)
Duty Cycle 0.1-99.9%
Period 2-20ms
Pulse Width 2-10ms
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity <150Ω
Temperature -20 to +760°C/-4 to +1400°F
IR Temperature No
Diode Check Yes (Typical Test Current 0.3mA)
Transistor Test No
Back Light Yes
Bar Graph Display Yes
Display Hold Yes
Auto-Ranging Yes
Inductive Coupler Yes
PC Interface Yes
Digits Height 36mm
Auto Power Off Yes
Low Battery Indicator Yes
Batteries (supplied) 9V (PP3)
Hi-Impact Case Yes
Size (L x W x D) 215 x 100 x 60mm
Weight 605g
Application Automotive
Manufacturer Part Number (MPN) TA203
