Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304
Sealey 15-Function Digital Automotive Multimeter TA304

Sealey 15-Function Digital Automotive Multimeter TA304

by Sealey
SKU TA304-SEA
Sold out
£240.99 - £240.99
£240.99
£240.99 - £240.99
£240.99

Free Standard Delivery for Orders Over £40*

Product Information

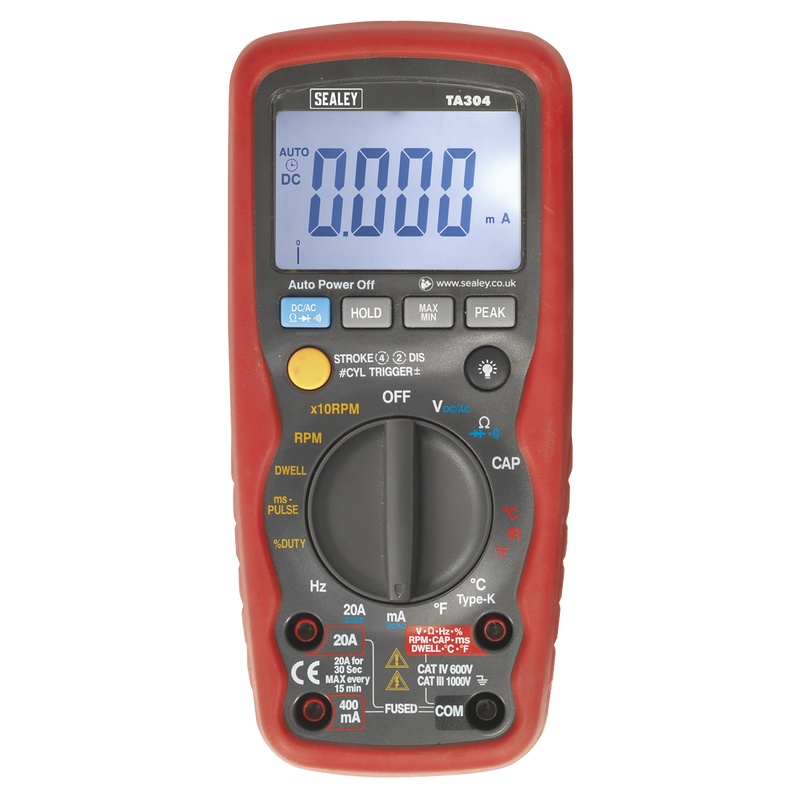

The Sealey 15-Function Digital Automotive Multimeter (Model TA304) is a highly versatile diagnostic tool designed for automotive applications. It features an infrared thermometer attachment and a combination digital/bar graph display for accurate readings.

  • 15 functions including AC/DC voltage, current, resistance, capacitance, and temperature measurements.
  • Auto-ranging capabilities for easy use across a variety of measurements.
  • Durable, workshop-tough case with integral stand and backlight for visibility in low light.

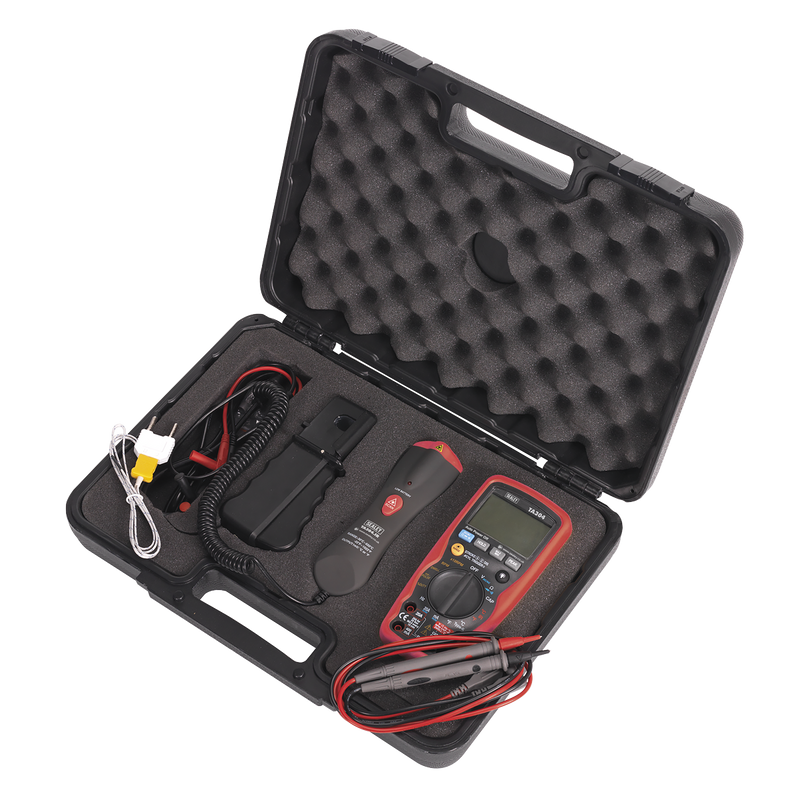

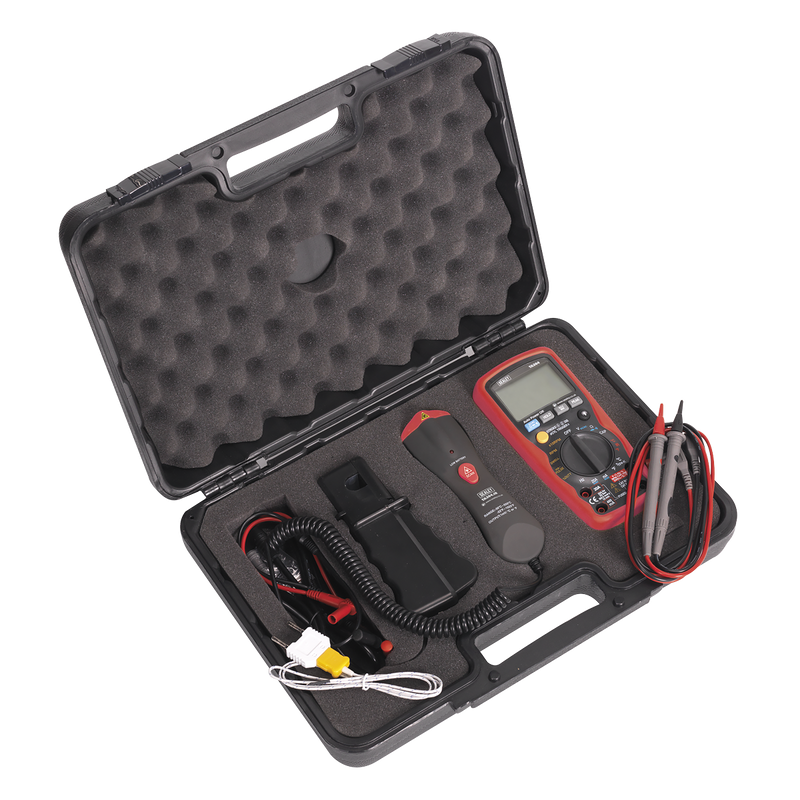

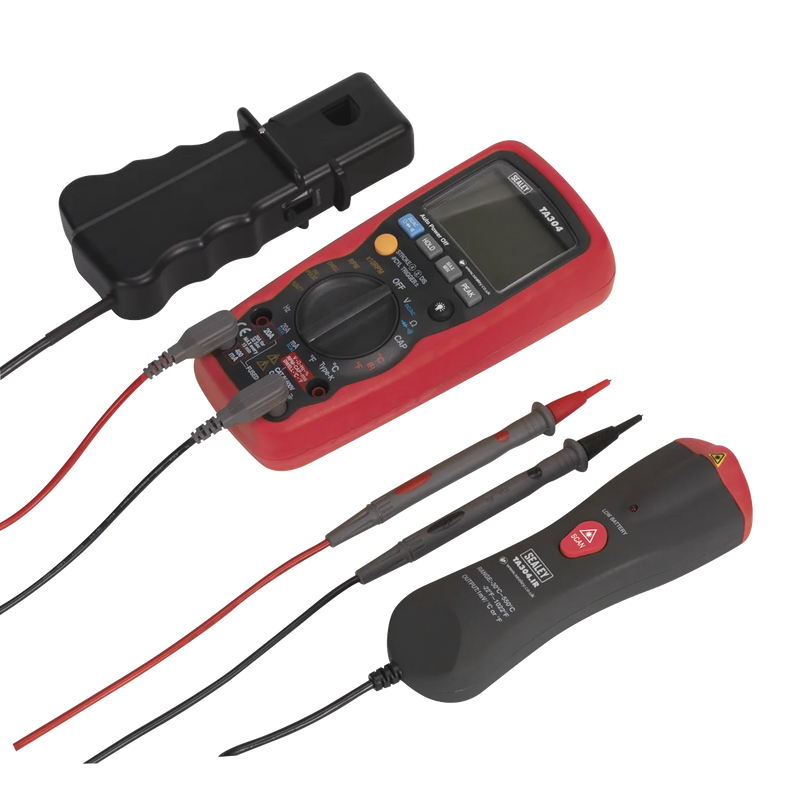

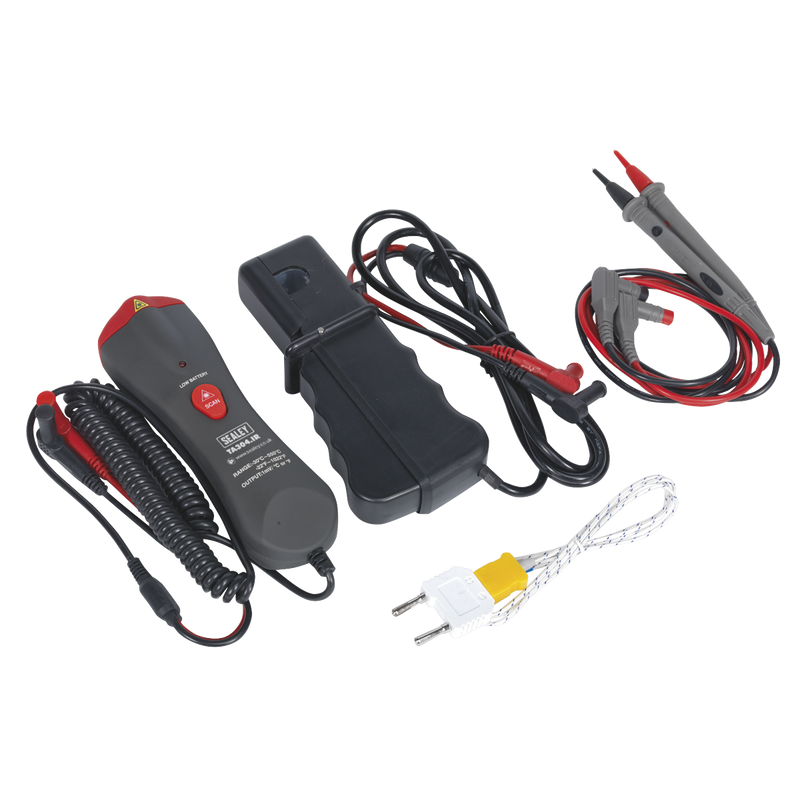

  • Includes inductive coupler, infrared temperature probe, and test probes in a convenient storage case.
  • Ideal for testing fuel injection systems with high-speed processing circuitry.
Specifications
Brand Sealey
EAN 5051747600683
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 2.22 kg
Custom Bundle No
Model No TA304
Nett Weight 360g
Tach (rpm) 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
Dwell 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage 400mV, 4V, 40V, 400V, 700V (Auto-Ranging)
DC Voltage 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
DC Current 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
Capacitance 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging)
Frequency 0.001Hz-9.99MHz (Auto-Ranging)
Duty Cycle 0.1-99.9%
Pulse Width 0.1-10ms
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity <30Ω Continuity Buzzer 2kHz
Temperature -20 to +760°C, -4 to +1400°F
IR Temperature -20 to +280°C, -4 to +536°F
Diode Check Yes
Transistor Test No
Back Light Yes
Bar Graph Display Yes
Display Hold Yes
Auto-Ranging Yes
Inductive Coupler Yes
PC Interface No
Digits Height 20mm
Auto Power Off Yes
Low Battery Indicator Yes
Batteries (supplied) 9V (PP3)
Hi-Impact Case Yes
Size (L x W x D) 182 x 82 x 55mm
Application Automotive
Manufacturer Part Number (MPN) TA304
