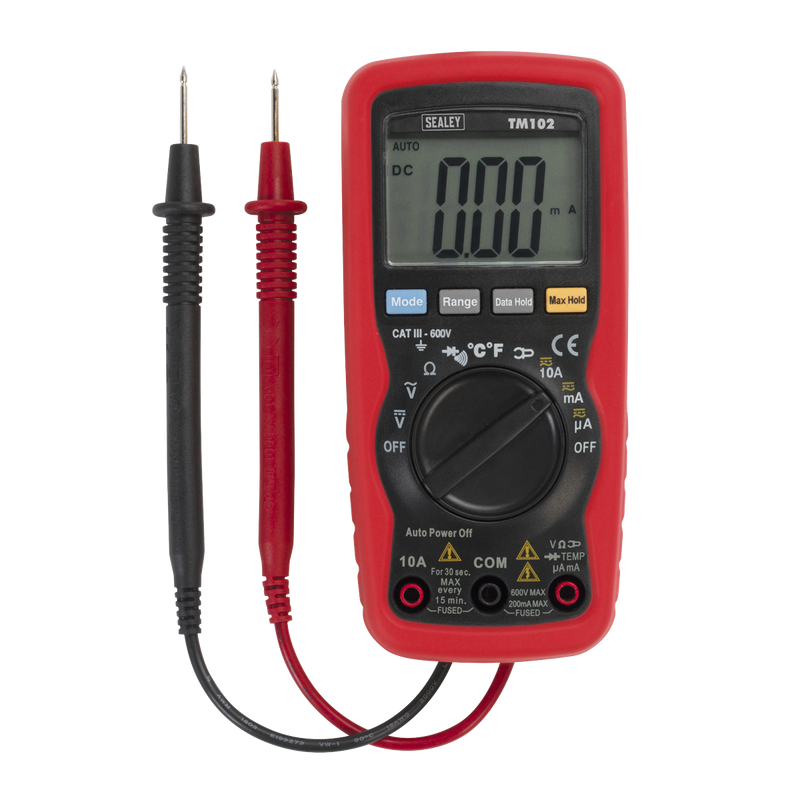

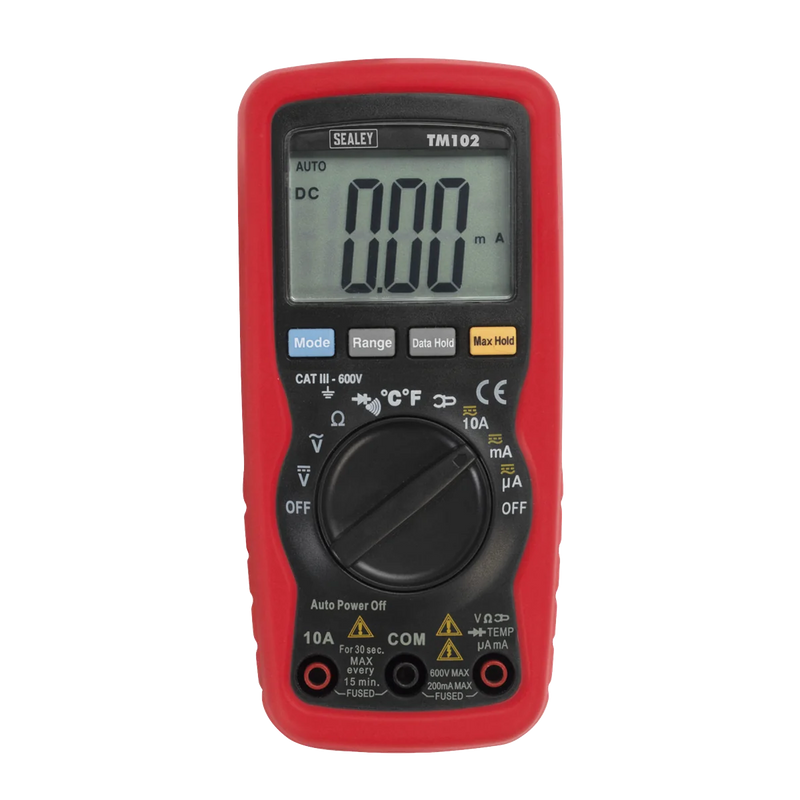

Sealey 8-Function Digital Multimeter TM102 600V AC/DC
Sealey 8-Function Digital Multimeter TM102 600V AC/DC

Sealey 8-Function Digital Multimeter TM102 600V AC/DC

by Sealey
SKU TM102-SEA
Sold out
£68.99 - £68.99
£68.99
£68.99 - £68.99
£68.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey TM102 Digital Multimeter is a high-precision, auto-ranging multimeter designed for both professional and DIY use. It features a robust design with a hi-impact rubber case, ensuring durability and ease of use.

  • 8 Functions: Measure AC and DC voltage, current, resistance, and temperature.
  • Safety Compliance: Conforms to EN 61010-1 CATIII 600V safety standards.
  • Temperature Measurement: Capable of measuring temperatures from -50ºC to 1000ºC.
  • Convenient Features: Includes data-hold, auto-power-off, and low battery indicator.
  • Easy to Use: Large display, practical probe storage, and an integral upright stand.
  • Portable: Supplied in a zipped pouch with a carry strap for easy transport.
Specifications
Brand Sealey
EAN 5051747492912
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.47 kg
Custom Bundle No
Model No TM102
Nett Weight 255g
AC Voltage (Accuracy) 200mV (±1.5%), 2V (±1.2%), 20V, 200V (±1.5%), 600V (±2%)
DC Voltage (Accuracy) 0-200mV (±0.5%), 2V, 20V, 200V (±1.2%), 600V (±1.5%)
AC Current (Accuracy) 200µA (±1.5%), 2000µA, 20mA, 200mA (±1.8%), 10A (±3%)
DC Current (Accuracy) 200µa (±1%), 2000µa, 20mA, 200mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy) 0-200Ω (±1.2%), 2kΩ (±1%), 20kΩ, 200kΩ, 2MΩ (±1.2%), 20MΩ (±2%)
Capacitance (Accuracy) No
Temperature (Accuracy) -50ºC to 1000ºC (±3%), -58 to 1832ºF (±3%)
Frequency (Accuracy) No
Duty Cycle No
Continuity Audible Yes
Diode Test Yes
Transistor Test No
Hi-Impact Rubber Case Yes
Digits x Height 1.96 x 24.5mm
Low Battery Indicator Yes
Battery (Supplied) 1 x 9V
Information Data-Hold, Auto-Power-Off
Size (L x W x D) 150 x 70 x 48mm
Weight 255g
Conformity EN 61010-1
Voltage 600V
Application Automotive
Manufacturer Part Number (MPN) TM102
