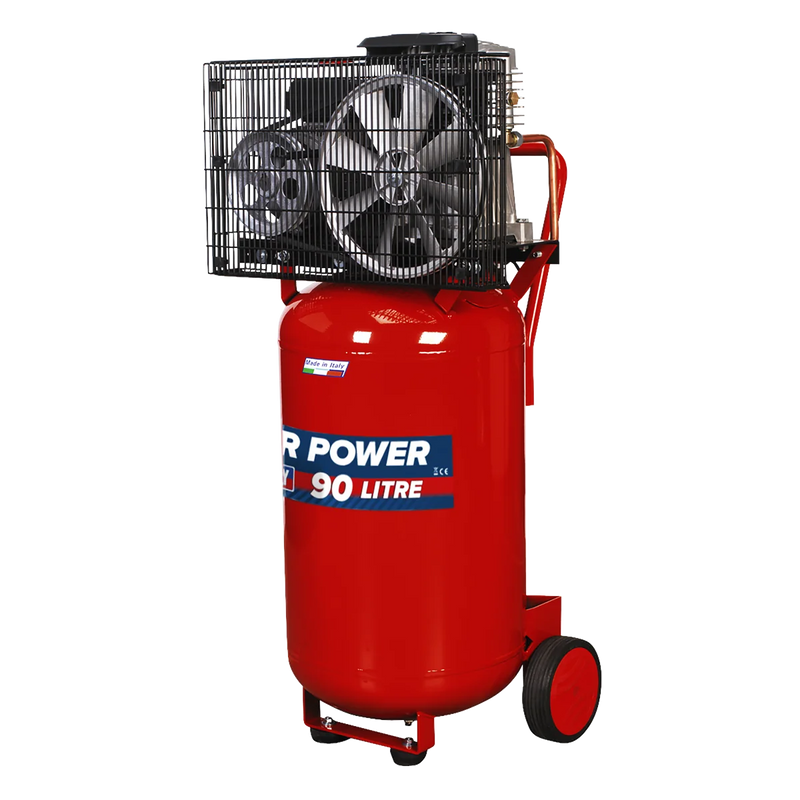

Sealey 90L Belt Drive Vertical Compressor 3hp
Sealey 90L Belt Drive Vertical Compressor 3hp

Sealey 90L Belt Drive Vertical Compressor 3hp

by Sealey
SKU SAC1903B-SEA
Sold out
£1,221.99 - £1,221.99
£1,221.99
£1,221.99 - £1,221.99
£1,221.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey 90L Belt Drive Vertical Compressor is designed for professional workshops, providing powerful performance and efficient air delivery.

  • Air Displacement: 13.4cfm (380L/min)
  • Maximum Free Air Delivery: 9.7cfm (275L/min)
  • Maximum Pressure: 145psi (10bar)
  • Receiver Capacity: 90L
  • Motor Output: 3hp
  • Quick Release Coupling: for easy tool attachment

Its vertical tank design saves space while maintaining high performance. The unit features heavy-duty full cast cylinders and alloy heads for improved heat dissipation and longevity. Additionally, twin capacitors and a centrifugal switch ensure reliable start-up on a 13A supply.

Specifications
Brand Sealey
EAN 5051747570405
Type Compressors
Sub-Type Belt Drive
Item Weight 75 kg
Custom Bundle No
Model No SAC1903B
Air Displacement cfm(L/min) 13.4(380)
Maximum Free Air Delivery cfm(L/min) 9.7(275)
Maximum Pressure 145psi(10bar)
Minimum Rated Supply 13A
Motor Output 3hp
Nett Weight 65kg
Oil Capacity 0.45L
Outlet Quick Release Coupling
Phase 1ph
Receiver Capacity 90L
Size (W x D x H) 525 x 495 x 1130mm
Speed 1636rpm
Supply 230V/13A
Application Automotive
Manufacturer Part Number (MPN) SAC1903B
