Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH

Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH

by Sealey
SKU YK20FAH-SEA
Sold out
£688.99 - £688.99
£688.99
£688.99 - £688.99
£688.99

Free Standard Delivery for Orders Over £40*

Product Information

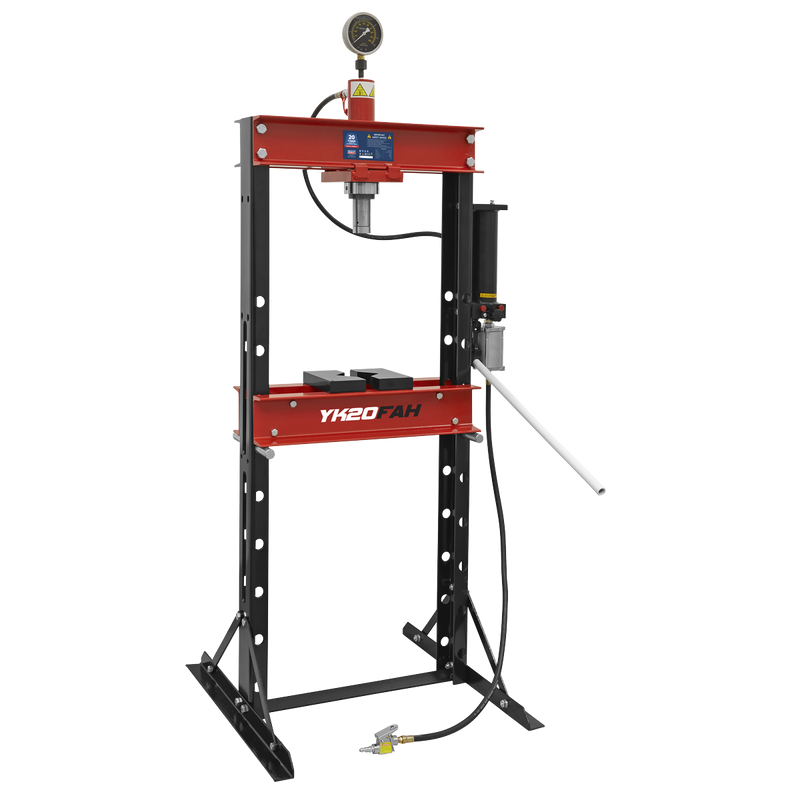

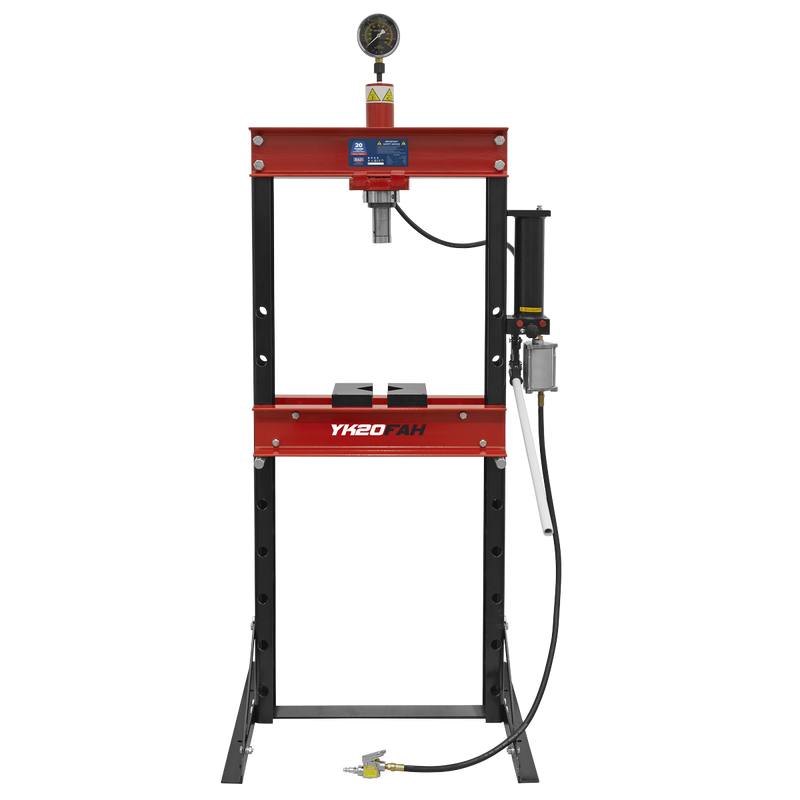

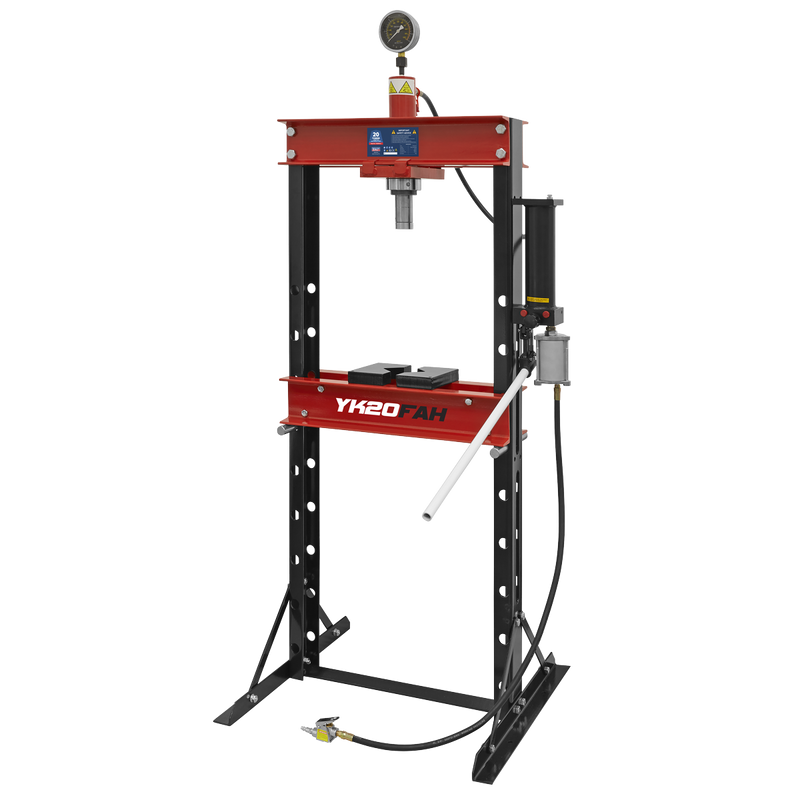

The Sealey Air/Hydraulic Floor Type Press is designed for heavy-duty applications, featuring a robust steel frame and a powerful air motor that drives the hydraulic pump unit.

  • Capacity: 20 Tonne
  • Air Consumption: 7.06 cfm
  • Sliding Hydraulic Ram: 403mm lateral travel for off-centre pressing
  • Ram Stroke: 185mm with a ram diameter of Ø48mm

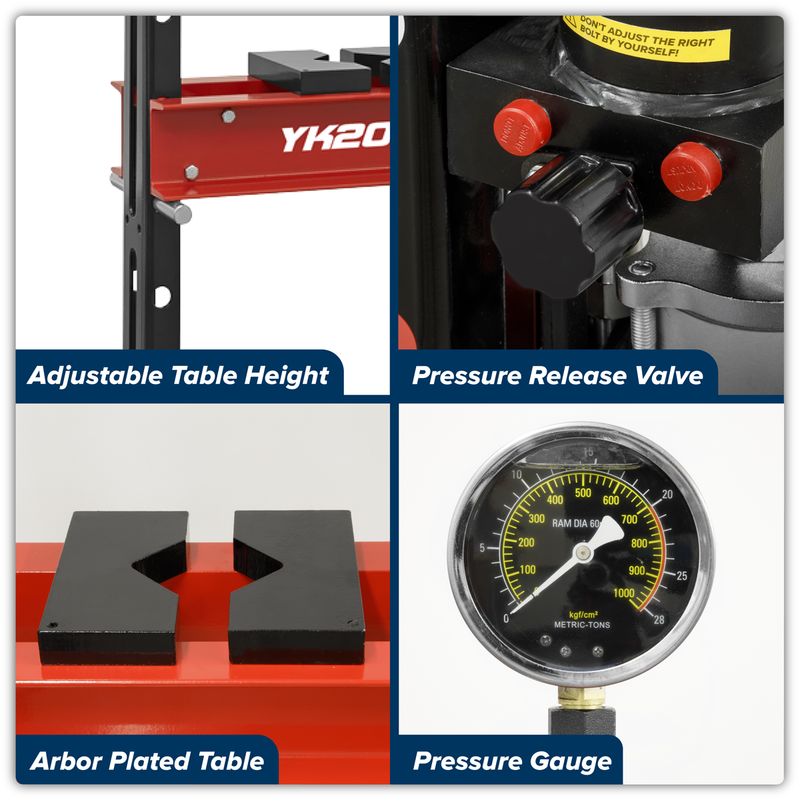

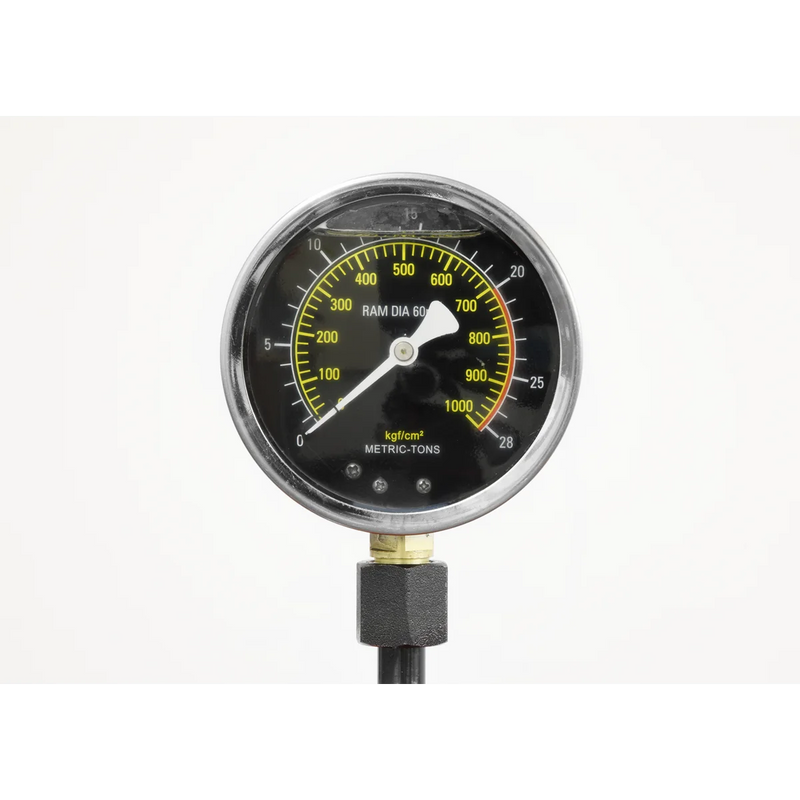

  • Fitted with Gauge: Includes a ram pressure gauge for precise measurement
  • Dimensions: Overall height of 1796mm and working table width of 630mm

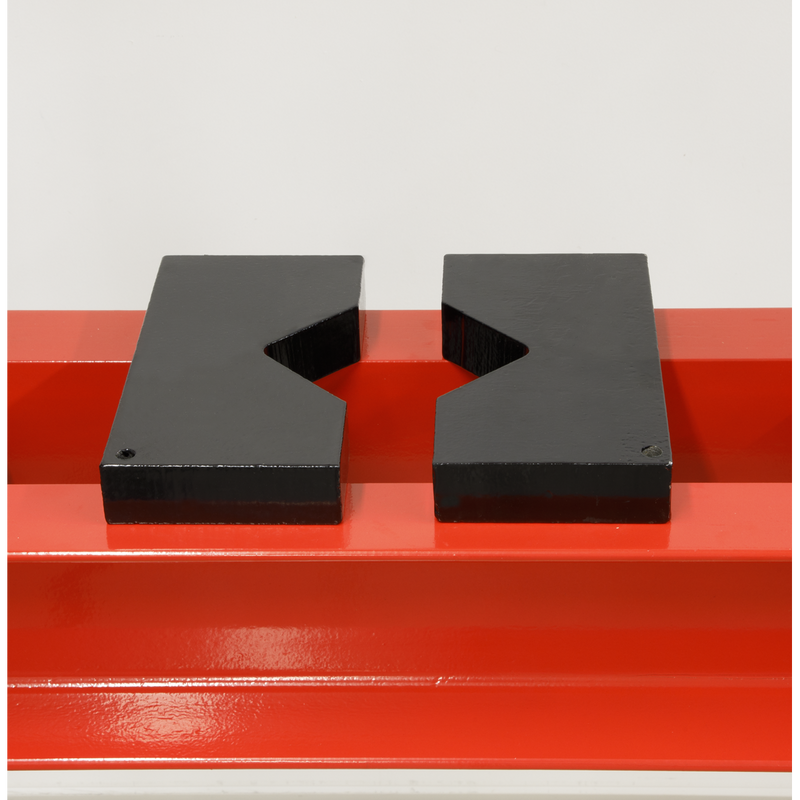

This press is supplied with flat pressing plates and V-blocks to facilitate various pressing tasks. Please note that due to its weight of 105kg, extra assistance is required for safe delivery.

Specifications
Brand Sealey
EAN 5054511718218
Type Jacking & Lifting
Sub-Type Presses
Item Weight 105 g
Custom Bundle No
Model No YK20FAH
Air Consumption 7.06cfm
Bench or Floor Mounting Floor
Capacity 20 Tonne
Gauge Included Yes
Lateral Ram Travel 403mm
Maximum Height - Ram to Table 1018mm
Minimum Height - Ram to Table 58mm
Nett Weight 93kg
Operating Table Width 542mm
Optional Accessories YKPP8 - Press Pin Set
Overall Height 1796mm
Ram Diameter Ø48mm
Ram Stroke 185mm
Table Aperture 105mm
Working Table Depth 211mm
Working Table Width 630mm
Power Source Hydraulic
Manufacturer Part Number (MPN) YK20FAH
