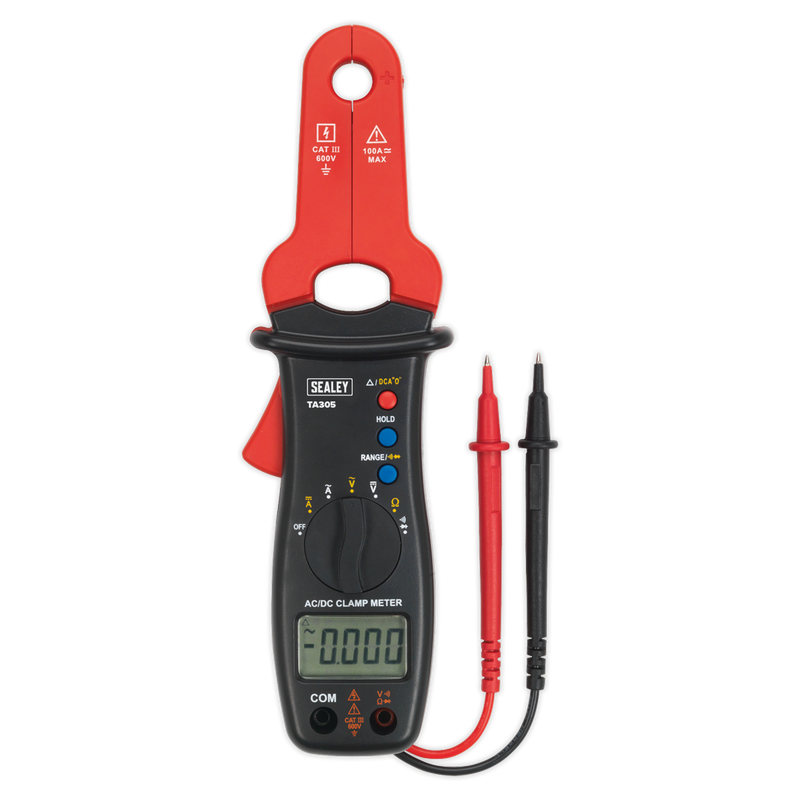

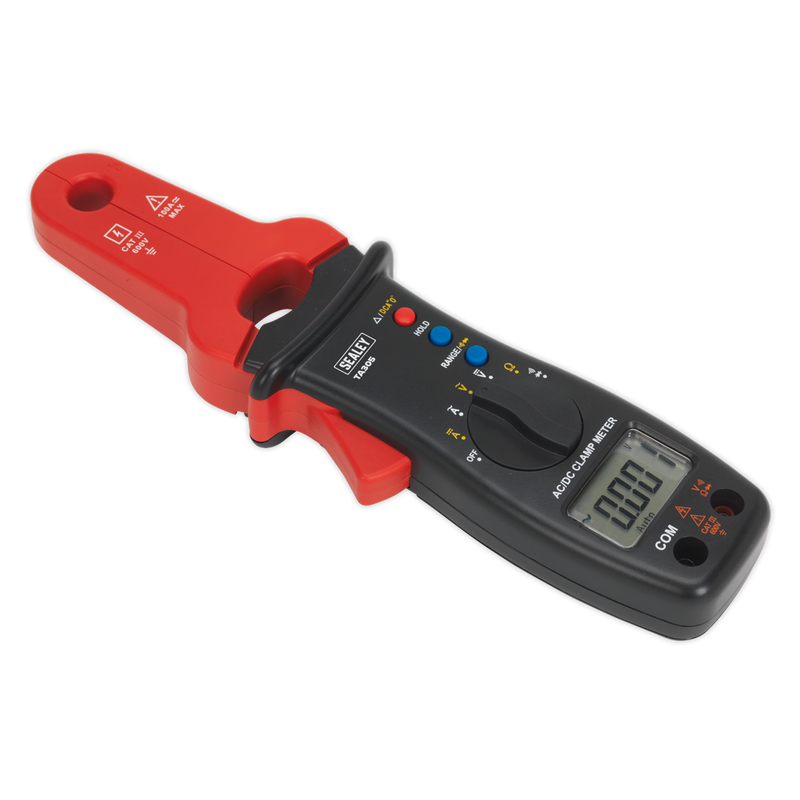

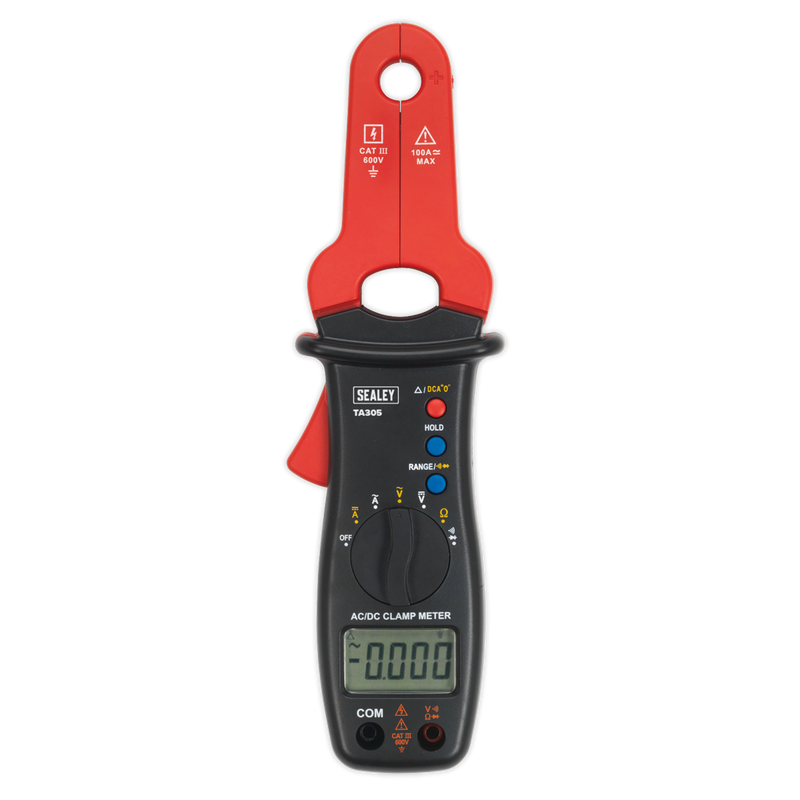

Sealey Clamp Meter & Multimeter TA305 AC/DC 600V
Sealey Clamp Meter & Multimeter TA305 AC/DC 600V
Sealey Clamp Meter & Multimeter TA305 AC/DC 600V
Sealey Clamp Meter & Multimeter TA305 AC/DC 600V
Sealey Clamp Meter & Multimeter TA305 AC/DC 600V
Sealey Clamp Meter & Multimeter TA305 AC/DC 600V

Sealey Clamp Meter & Multimeter TA305 AC/DC 600V

by Sealey
SKU TA305-SEA
Sold out
£97.99 - £97.99
£97.99
£97.99 - £97.99
£97.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey TA305 Clamp Meter & Multimeter is designed specifically for automotive electricians, providing precise measurements for various electrical parameters.

  • AC/DC Voltage Measurement: Measures up to 600V with high accuracy.
  • AC/DC Current Measurement: Capable of measuring currents up to 100A.
  • Compact Design: Features a 10mm jaw opening for easy access to wires.
  • Auto-Ranging: Automatically selects the correct measurement range for convenience.
  • Data Hold Function: Allows you to freeze the reading for easy viewing.
Specifications
Brand Sealey
EAN 5054511099751
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.37 kg
Custom Bundle No
Model No TA305
Nett Weight 185g
Jaw Opening Capacity 10mm
Maximum Measurable Conductor Ø10mm
Tach (rpm) No
Dwell No
AC Voltage (Accuracy) 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
DC Voltage (Accuracy) 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
AC Current (Accuracy) 40A, 100A (±2.5%)
DC Current (Accuracy) 40A, 100A (±2.5%)
Capacitance No
Input Impedance 10MΩ
Frequency Range 40Hz-400Hz
Duty Cycle No
Pulse Width No
Resistance 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)
Continuity <50Ω
Temperature No
IR Temperature No
Insulation Test No
Diode Test Yes
Transistor Test No
Back Light No
Bar Graph Display No
Data Hold Yes
Auto-Ranging Yes
Inductive Coupler No
PC Interface No
Digits Height 11mm
Auto Power Off Yes
Low Battery Indicator Yes
Batteries (Supplied) 2 x 1.5V
Hi-Impact Case No
Size (L x W x D) 226 x 71 x 38mm
Weight 185g
Voltage 600V
Application Automotive
Manufacturer Part Number (MPN) TA305
