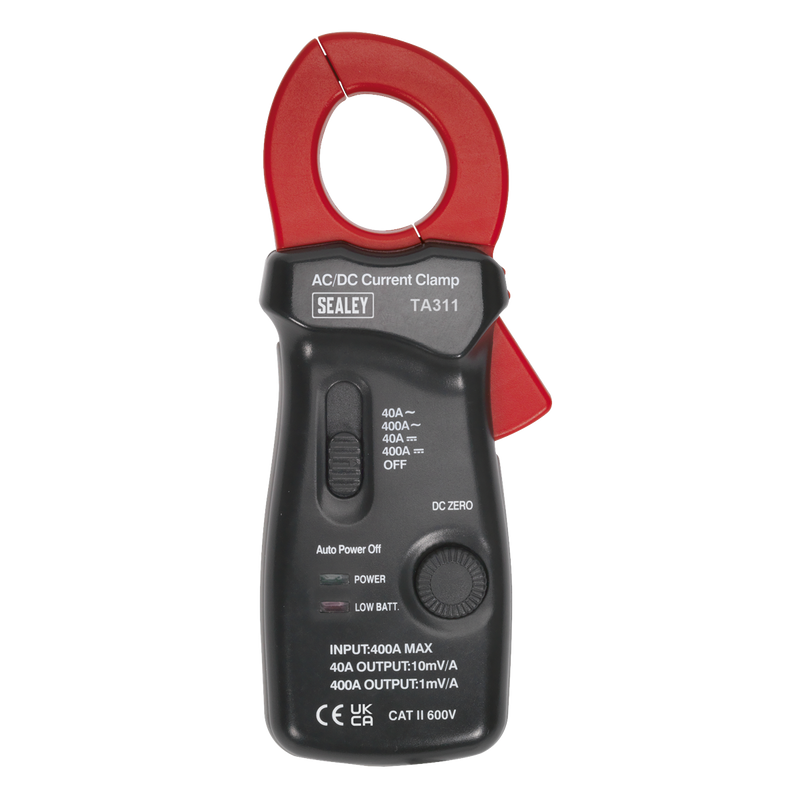

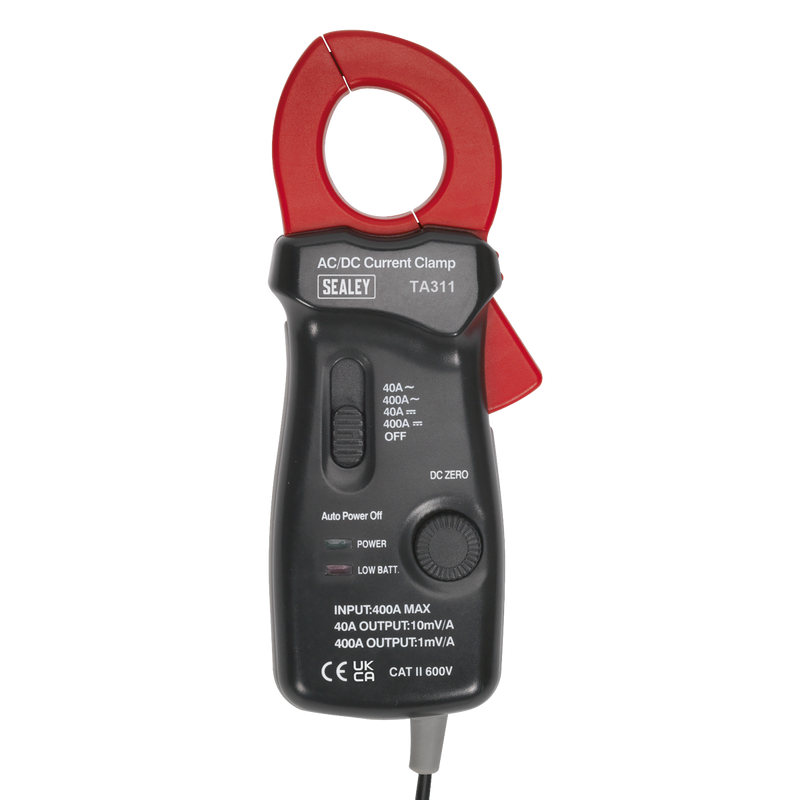

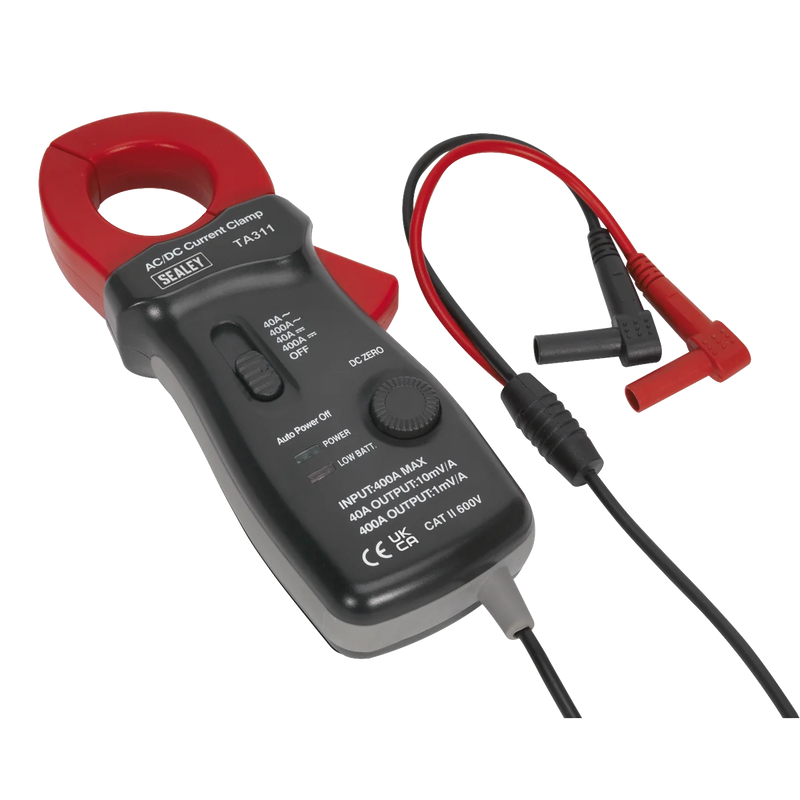

Sealey Current Clamp AC/DC 40A/400A 28mm
Sealey Current Clamp AC/DC 40A/400A 28mm
Sealey Current Clamp AC/DC 40A/400A 28mm

Sealey Current Clamp AC/DC 40A/400A 28mm

by Sealey
SKU TA311-SEA
Sold out
£82.99 - £82.99
£82.99
£82.99 - £82.99
£82.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey Current Clamp AC/DC 40A/400A is designed for use with standard multimeters, allowing you to measure current draw from vehicle components without interrupting the circuit.

  • Suitable for both AC and DC current measurement.
  • Features a Ø28mm clamp, ideal for testing wire bundles.
  • Includes 4mm banana connectors and comes with a storage pouch.
  • Powered by a 9V battery (included) with a typical battery life of 80 hours.
  • Operating temperature range: 0°C to 50°C.
Specifications
Brand Sealey
EAN 5051747779693
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.41 kg
Custom Bundle No
Model No TA311
Nett Weight 0.36kg
TA311 Captured Conductor Size Ø20mm maximum
Low Battery Indicator LED red
Operating Temperature 0°C to 50°C.
Storage Temperature -15°C to 50°C.
Battery Type 9V DC
Typical Battery Life 80hrs (alkaline)
Weight 240g
TA311 Dimensions (H x W x D) 175mm x 70mm x 38mm
Output Connection Banana plugs (red & black)
40A (output: 10mV/A) DC or rms AC for 200mV or 400mV range of the multimeter.
400A (output: 1mV/A) DC or rms AC for 400mV range of the multimeter.
Length 28mm
Application Automotive
Manufacturer Part Number (MPN) TA311
