Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool
Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool

Sealey Dial Bore Gauge DBG5010 50-160mm Measuring Tool

by Sealey
SKU DBG5010-SEA
£90.99 - £90.99
£90.99
£90.99 - £90.99
£90.99

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

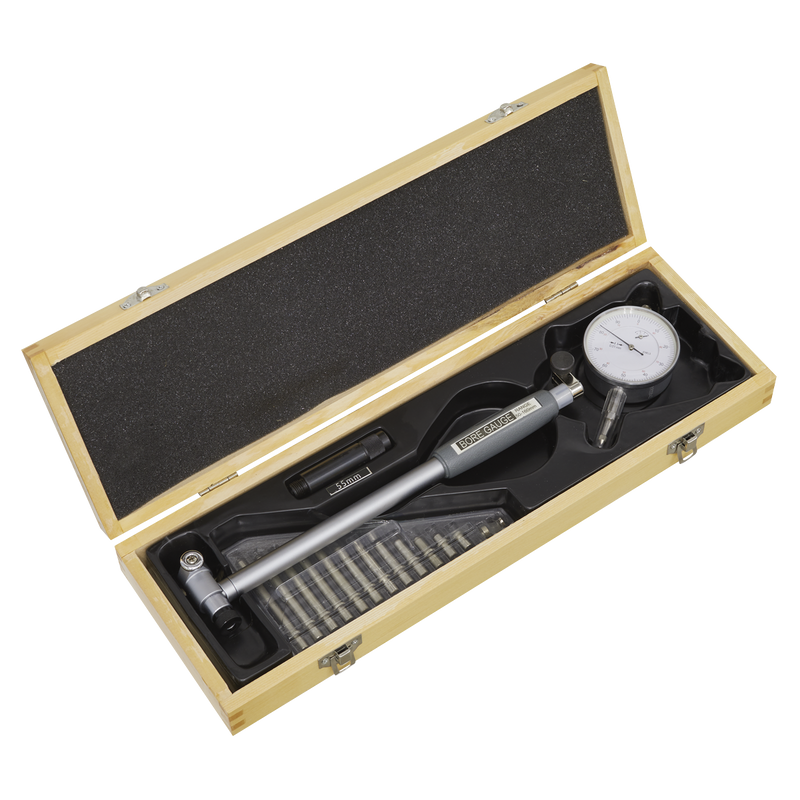

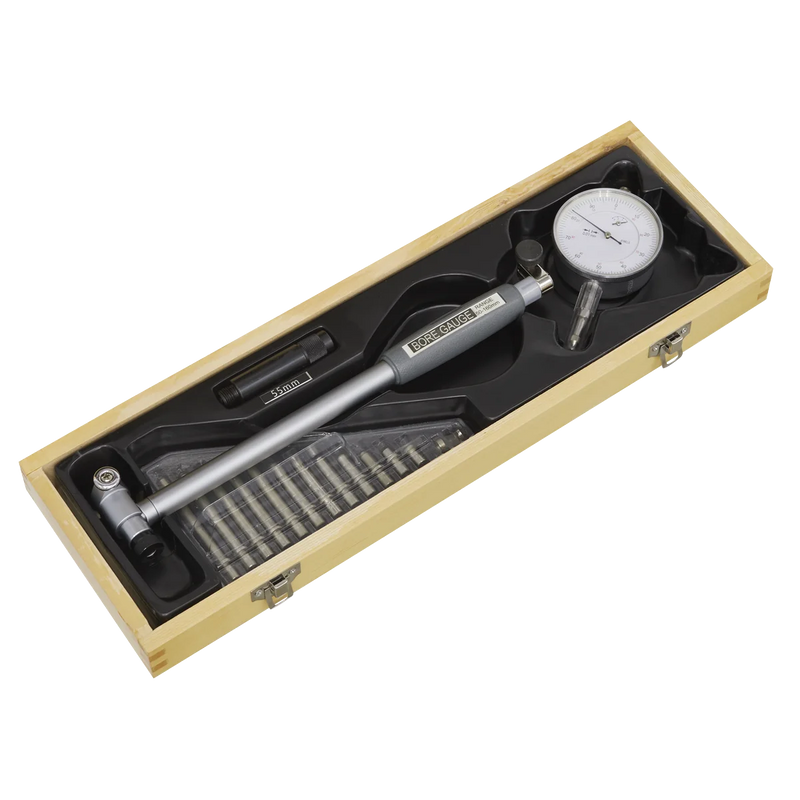

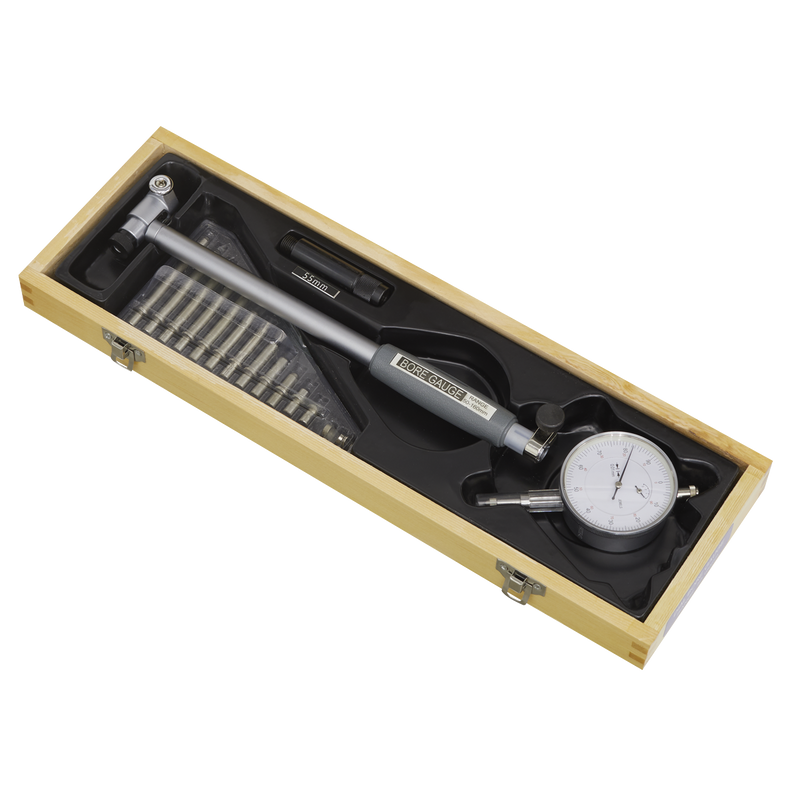

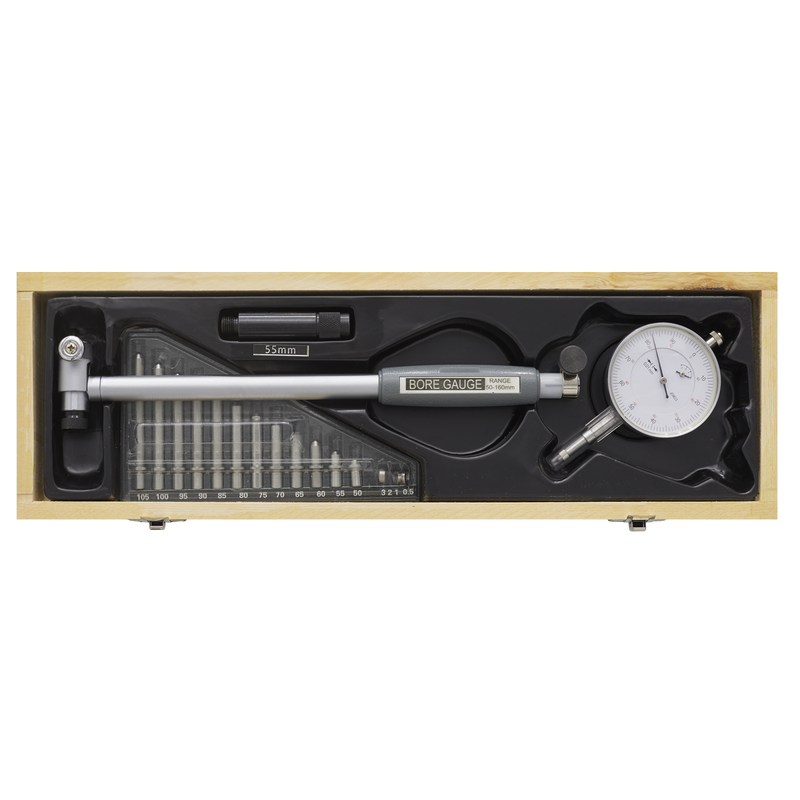

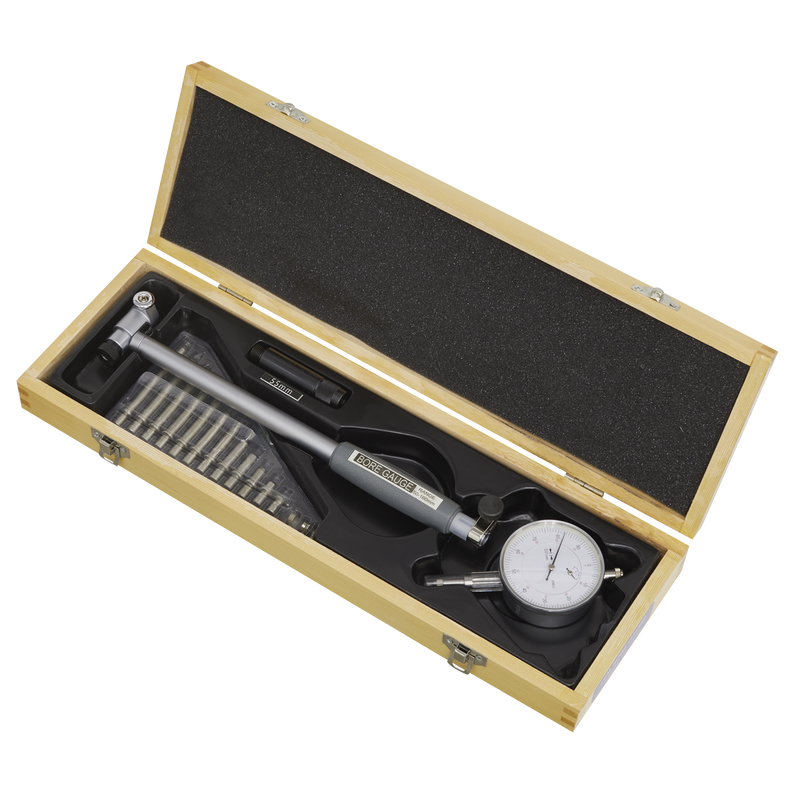

The Sealey Dial Bore Gauge is designed for precision measurement of bore sizes, taper, and ovality. With a measuring range of 50-160mm and a 55mm dial, this tool offers exceptional accuracy and ease of use.

  • Precision Mechanism: Features a Ø55mm dial with a locking rotating bezel.
  • Measuring Range: 50-160mm with a maximum deviation of 3mm.
  • High Accuracy: Indicates deviation from set size with an accuracy of 0.01mm.
  • Complete Set: Includes probe body, dial indicator, anvil, and spacer rings.
  • Storage: Supplied in a wooden storage case for protection and easy transport.
Specifications
Brand Sealey
EAN 5054511878547
Type Vehicle Service Tools
Sub-Type Engine
Item Weight 1.03 kg
Custom Bundle No
Model No DBG5010
Dial Diameter 55mm
Maximum Deviation Measurement with Stem 1mm
Maximum Deviation Measurement, Gauge 3mm
Nett Weight 1.12kg
Range 50-160mm
Length 160mm
Manufacturer Part Number (MPN) DBG5010
