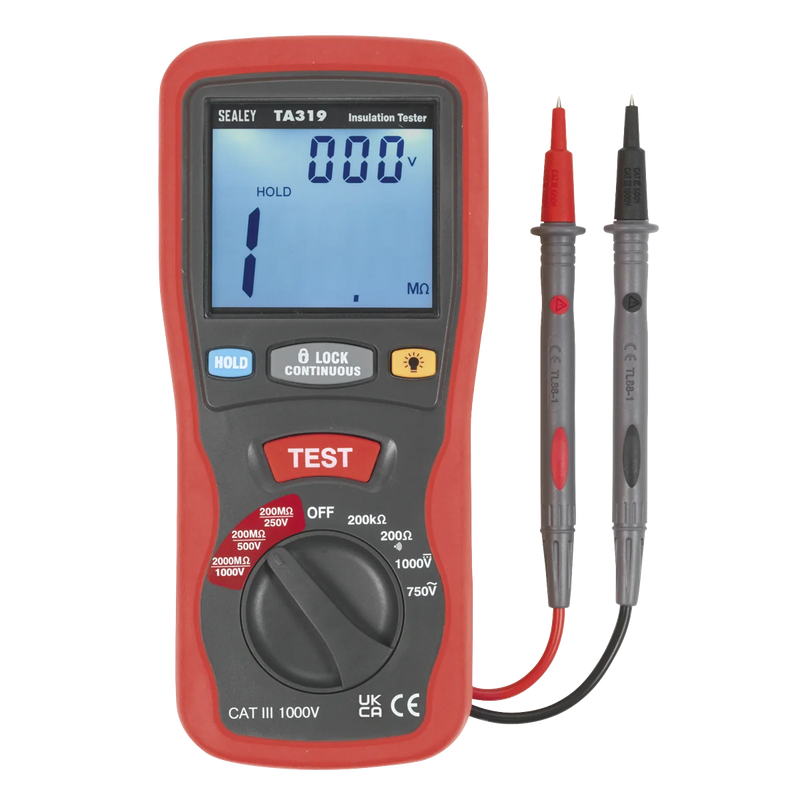

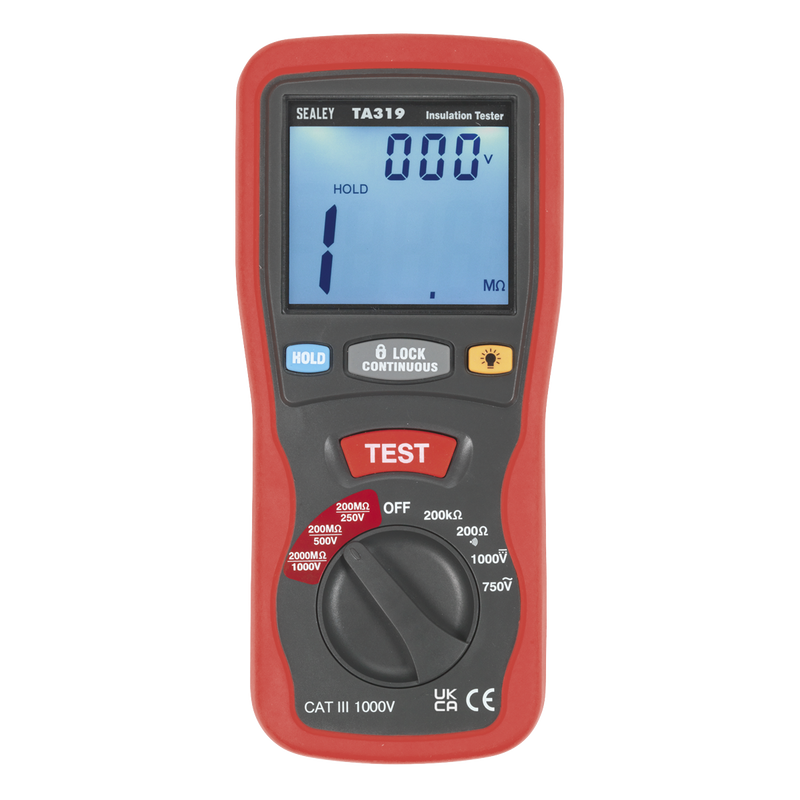

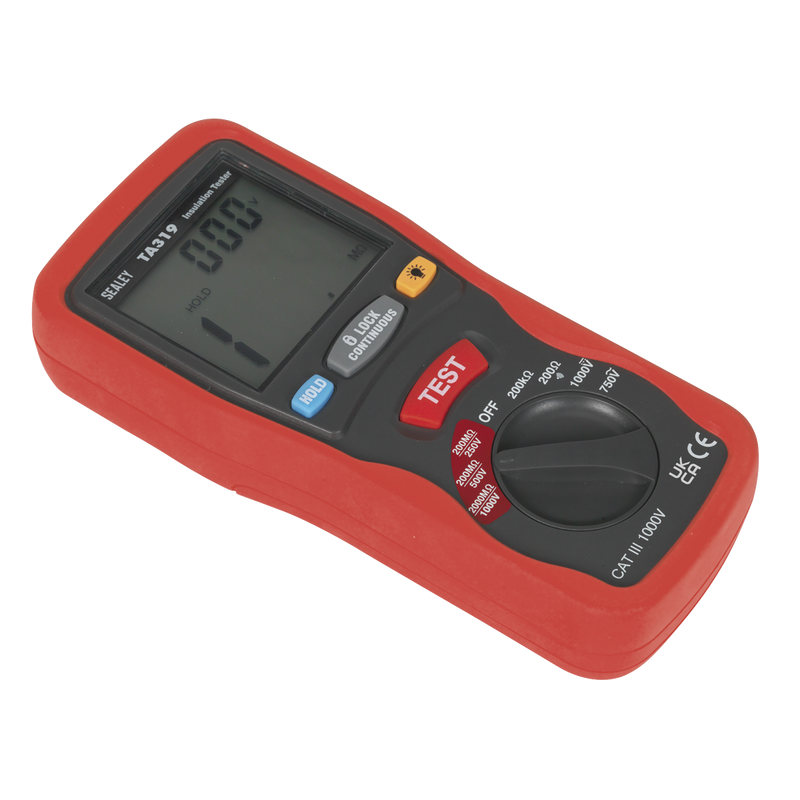

Sealey Digital Insulation Tester TA319 1000V
Sealey Digital Insulation Tester TA319 1000V
Sealey Digital Insulation Tester TA319 1000V
Sealey Digital Insulation Tester TA319 1000V
Sealey Digital Insulation Tester TA319 1000V
Sealey Digital Insulation Tester TA319 1000V

Sealey Digital Insulation Tester TA319 1000V

by Sealey
SKU TA319-SEA
Sold out
£221.99 - £221.99
£221.99
£221.99 - £221.99
£221.99

Free Standard Delivery for Orders Over £40*

Product Information

The Sealey Digital Insulation Tester TA319 is specially designed for testing insulation on high voltage cables, making it an essential tool for professionals working with hybrid and electric vehicles.

  • Test Voltage: 250V, 500V, and 1000V ranges for insulation resistance.
  • Resistance measurement up to 2000Ω with high accuracy.

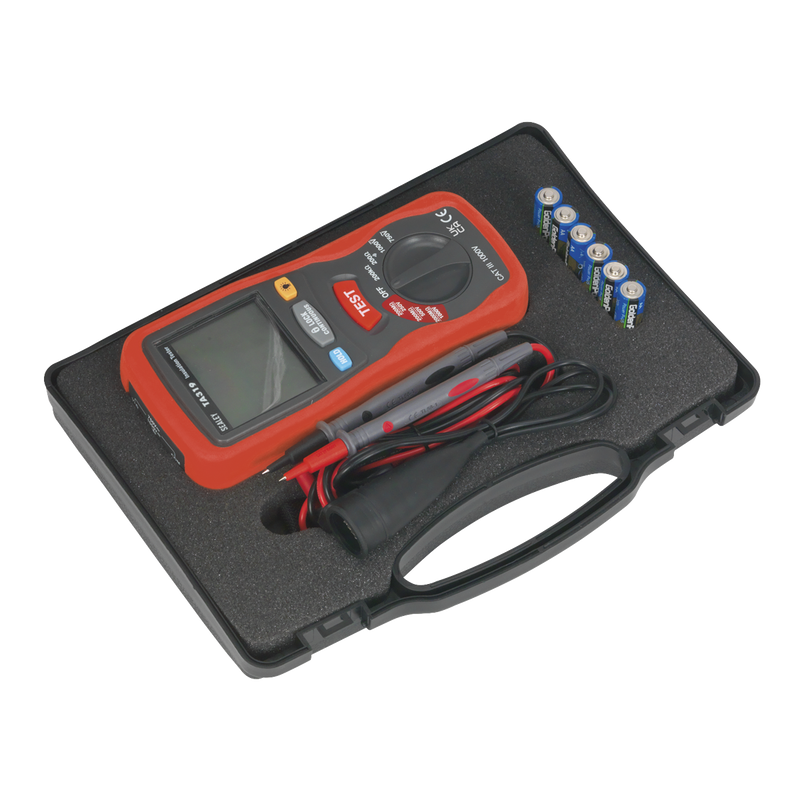

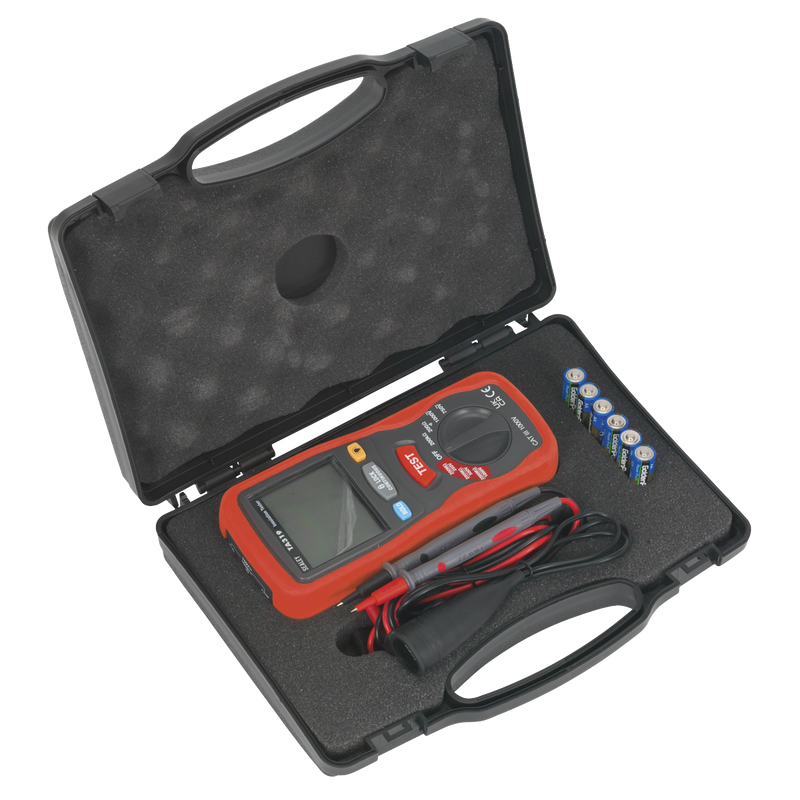

  • Supplied with test leads, batteries, and a convenient storage case.
  • Conforms to EN61010 CAT III (1000V) standards for safety.
  • Operating temperature range of 0ºC to +40ºC.
Specifications
Brand Sealey
EAN 5054630019869
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 1.31 kg
Custom Bundle No
Model No TA319
Nett Weight 1.29kg
Voltage AC Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Resistance Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Insulation Resistance Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Test Voltage 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Continuity Test Active Sound Level; ≤40Ω, Test Current; ≤200mA
Operating Temperature 0ºC to +40ºC, (<80%R.H)
Storage Temperature -10ºC to +60ºC, (<70%R.H)
Batteries 6 x 1.5V (supplied)
Voltage 1000V
Application Electrical
Manufacturer Part Number (MPN) TA319
