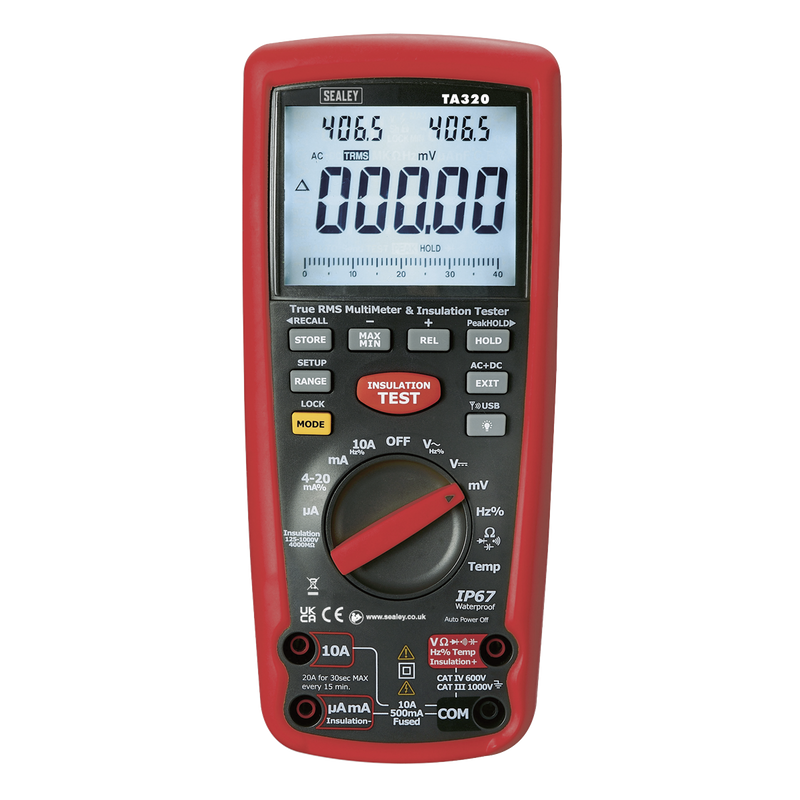

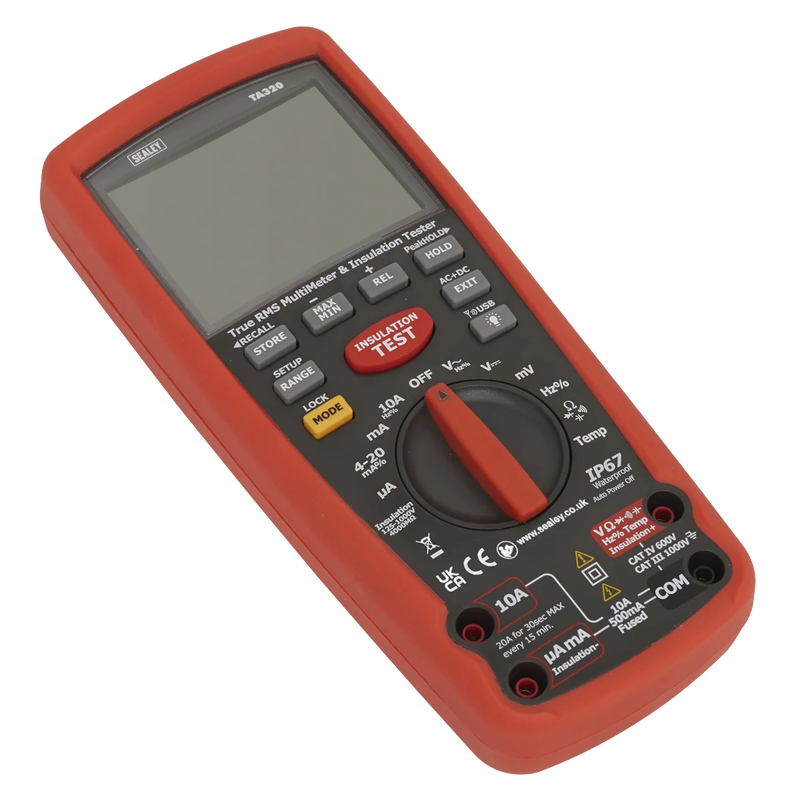

Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V
Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V

Sealey Digital Multimeter TA320 for Hybrid Vehicles 1000V

by Sealey
SKU TA320-SEA
Sold out
£384.99 - £384.99
£384.99
£384.99 - £384.99
£384.99

Free Standard Delivery for Orders Over £40*

Product Information

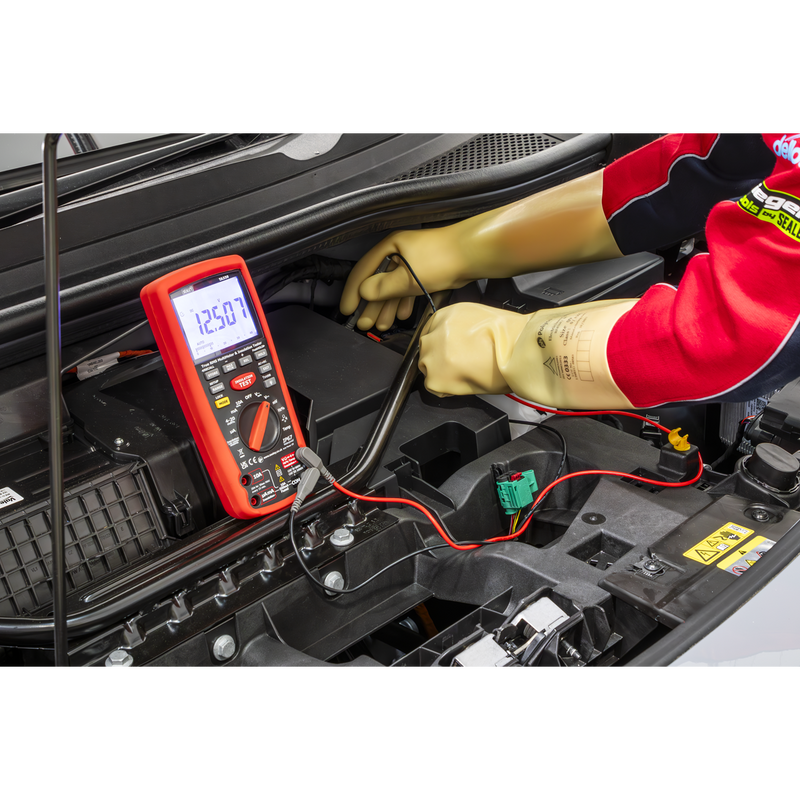

The Sealey TA320 Digital Automotive Multimeter is specially designed for hybrid vehicles, conforming to EN61010 CAT III (1000V) and CAT IV (600V). This multimeter features an insulation test function, allowing for the testing of high voltage cables and motor generator units found in hybrid vehicles.

  • Can be used as a stand-alone device or connected wirelessly to a PC or laptop for data management.

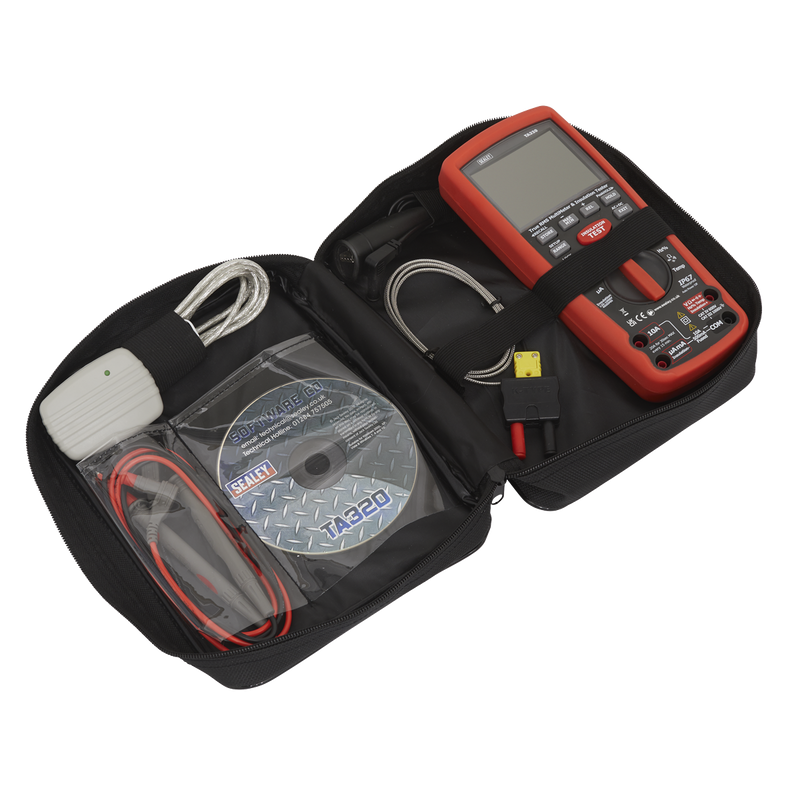

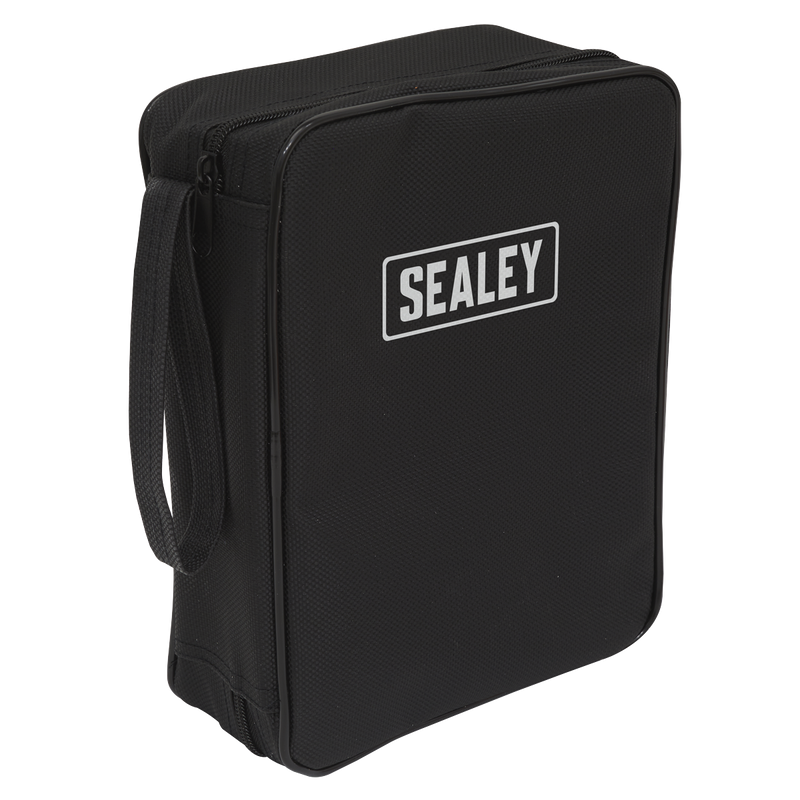

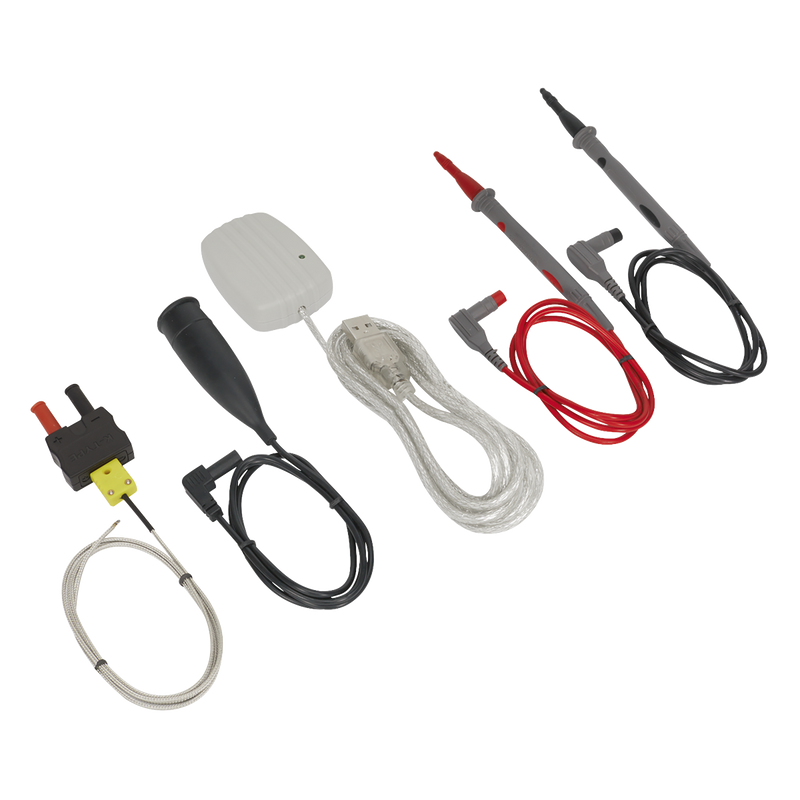

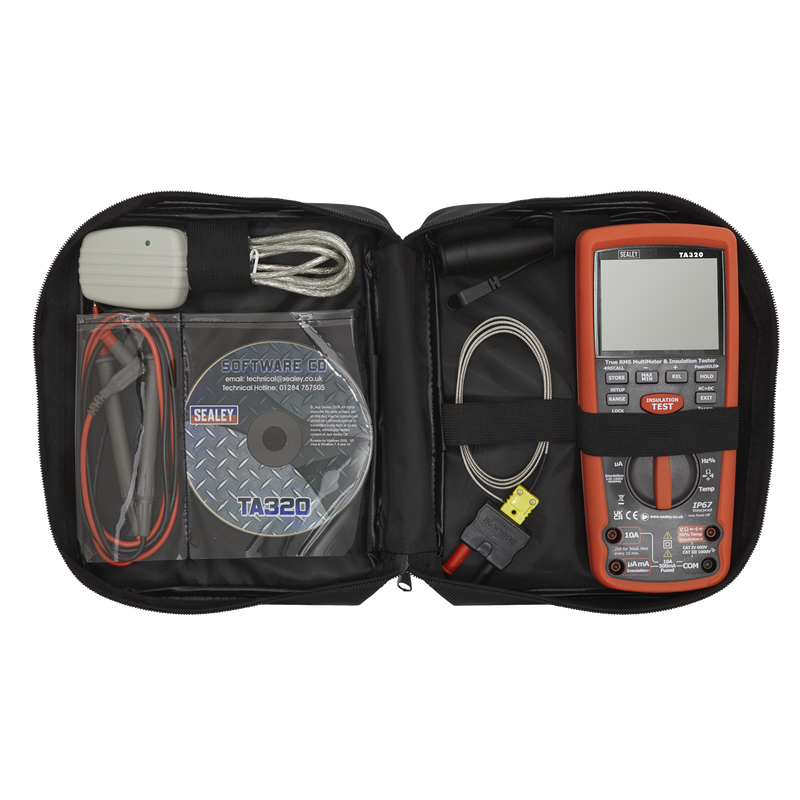

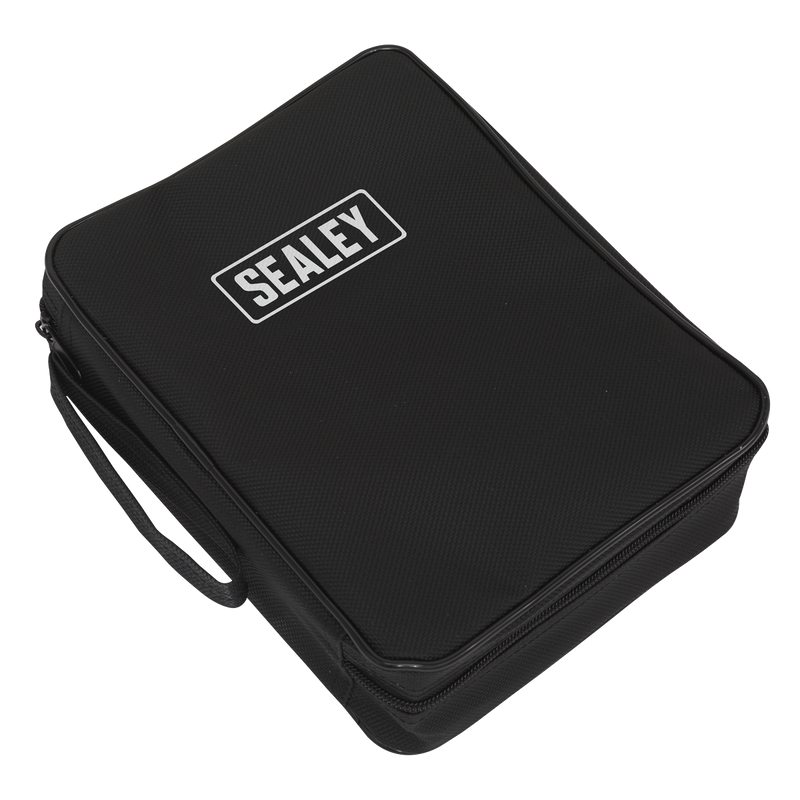

  • Includes high voltage probes, a thermocouple soft storage bag, and a wireless USB cable.
  • Features true RMS measurement and an IP67 waterproof rating for enhanced durability.
Specifications
Brand Sealey
EAN 5054511976939
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 1.25 kg
Custom Bundle No
Model No TA320
Nett Weight 700g
Tach (rpm) No
Dwell No
AC Voltage 400mV, 4V, 40V, 400V, 1000V
DC Voltage 400mV, 4V, 40V, 400V, 1000V
AC Current 400µA, 4000µA, 40mA, 400mA, 10A
DC Current 400µA, 4000µA, 40mA, 400mA, 10A
Capacitance 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF
Frequency 40Hz-10kHz
Duty Cycle 0.1-99.9%
Pulse Width 100µs-100ms
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Continuity <35Ω
Temperature -50 to +1000°C, -58 to +1832°F
IR Temperature No
Insulation Test 125V, 250V, 500V, 1000V
Diode Check Yes
Transistor Test No
Back Light Yes
Bar-Graph Display Yes
Display Hold Yes
Auto-Ranging Yes
Inductive Coupler No
PC Interface Yes
Digits Height 20mm
Auto Power Off Yes
Low Battery Indicator Yes
Batteries (Supplied) 6 x 1.5V AA
Hi-Impact Case Yes
Size (L x W x D) 220 x 95 x 56mm
Weight 700g
PC Compatibility Windows 2000, XP, Vista, Win7
Voltage 1000V
Manufacturer Part Number (MPN) TA320
