Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity
Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity

Sealey Fixed Frame Engine Crane PH30 3 Tonne Capacity

by Sealey
SKU PH30-SEA
Sold out
£873.99 - £873.99
£873.99
£873.99 - £873.99
£873.99

Free Standard Delivery for Orders Over £40*

Product Information

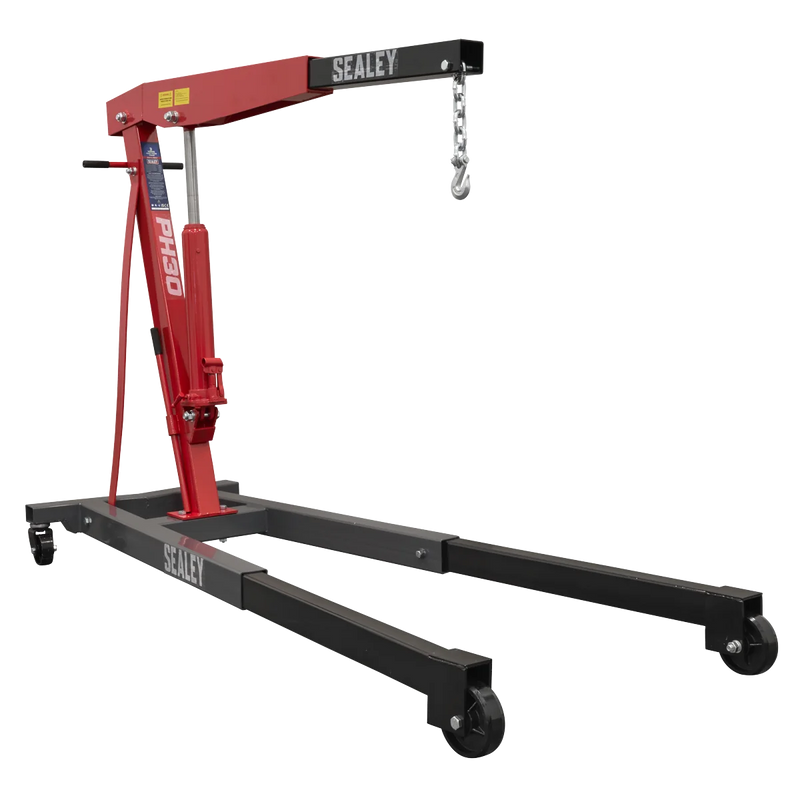

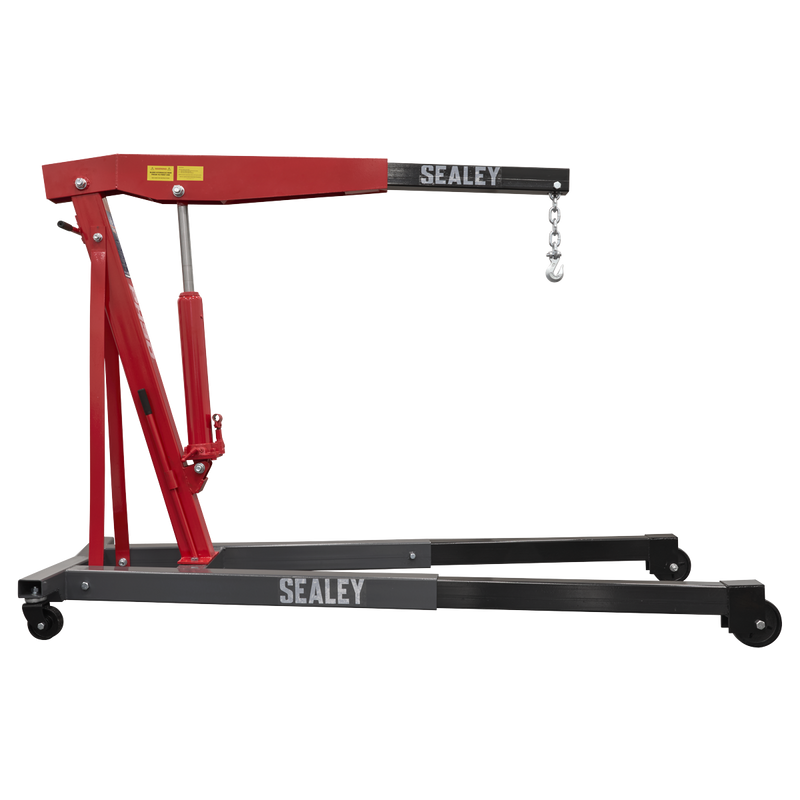

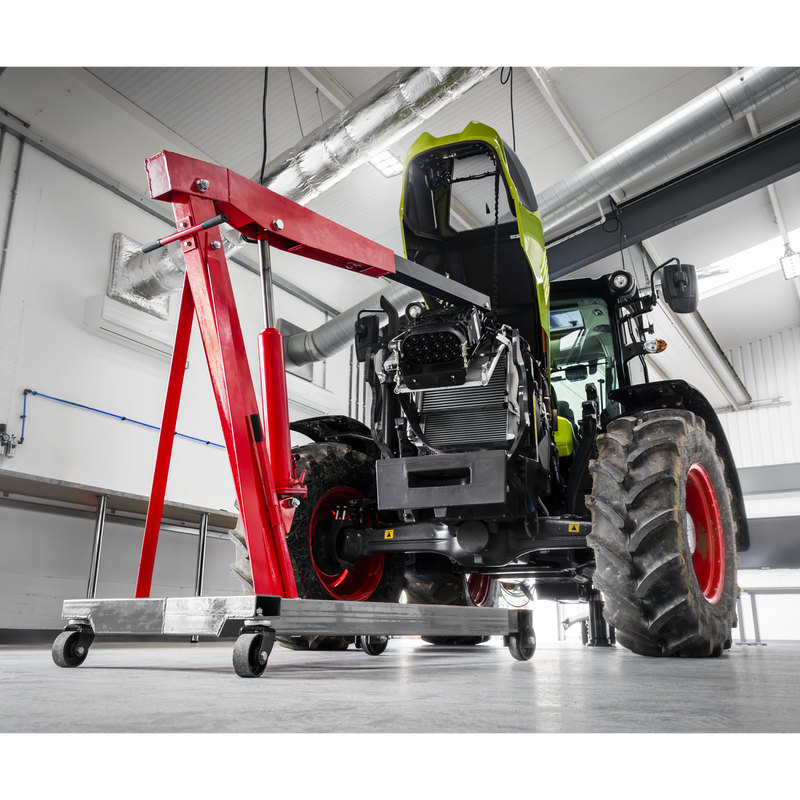

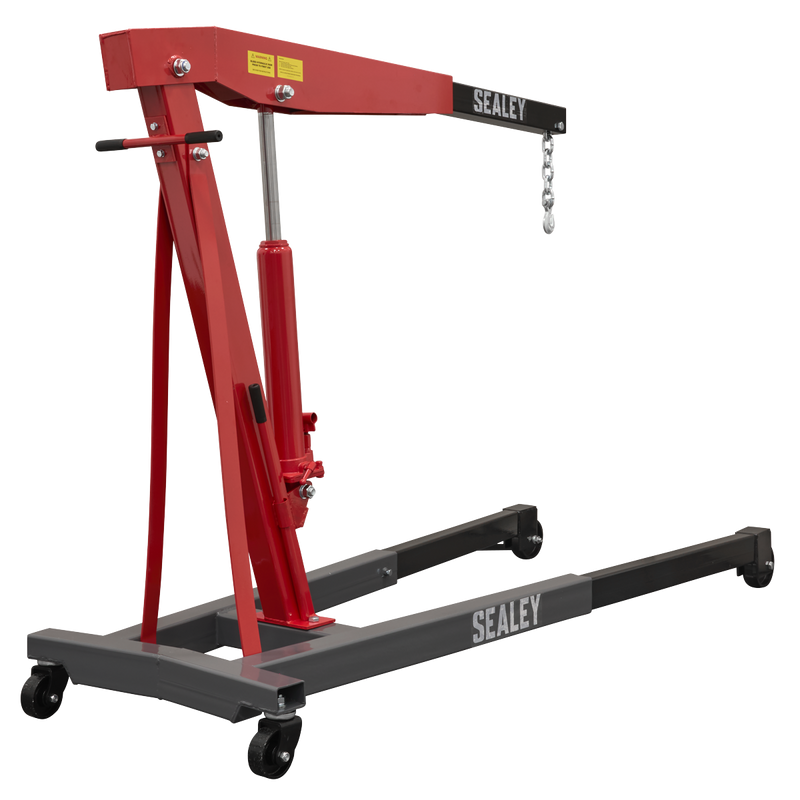

The Sealey Fixed Frame Engine Crane PH30 is designed for heavy-duty lifting tasks, making it ideal for industrial and workshop use. With a maximum lifting capacity of 3000kg at a jib extension of 1200mm, this crane is built for performance and stability.

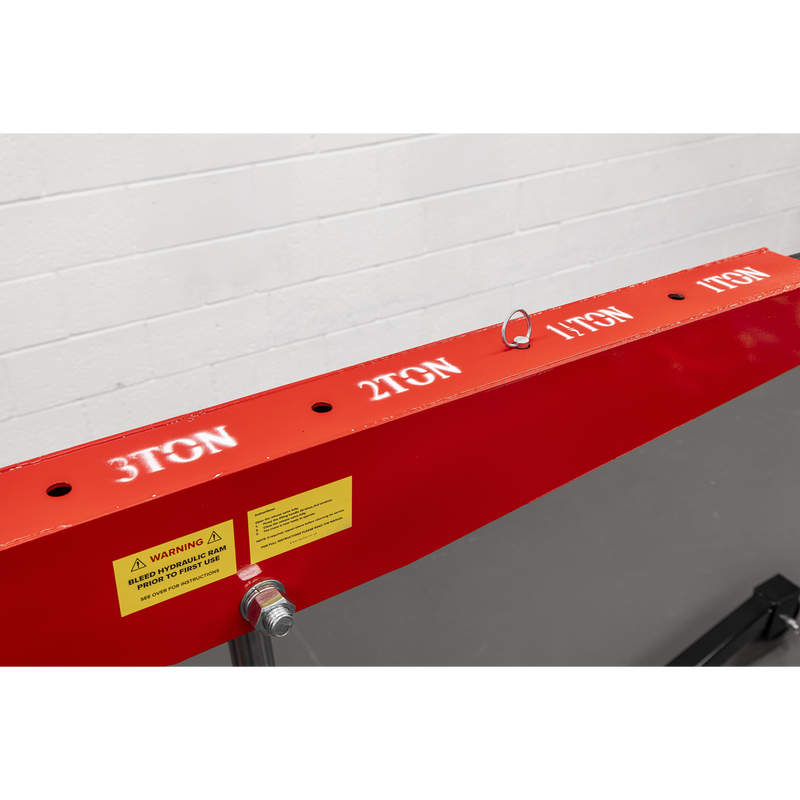

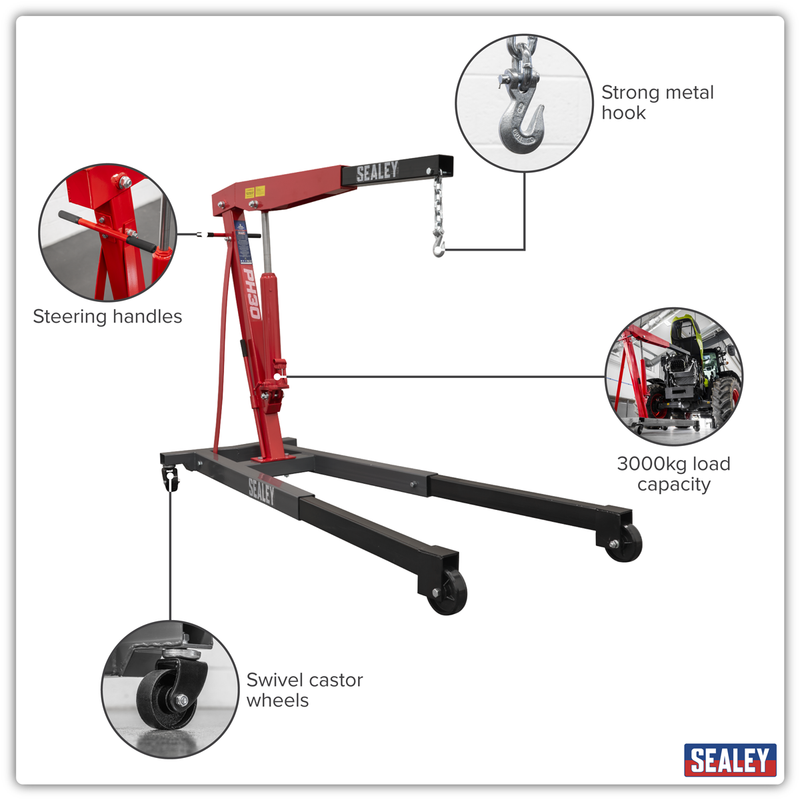

  • High Capacity: Lifts up to 3000kg with various jib positions.

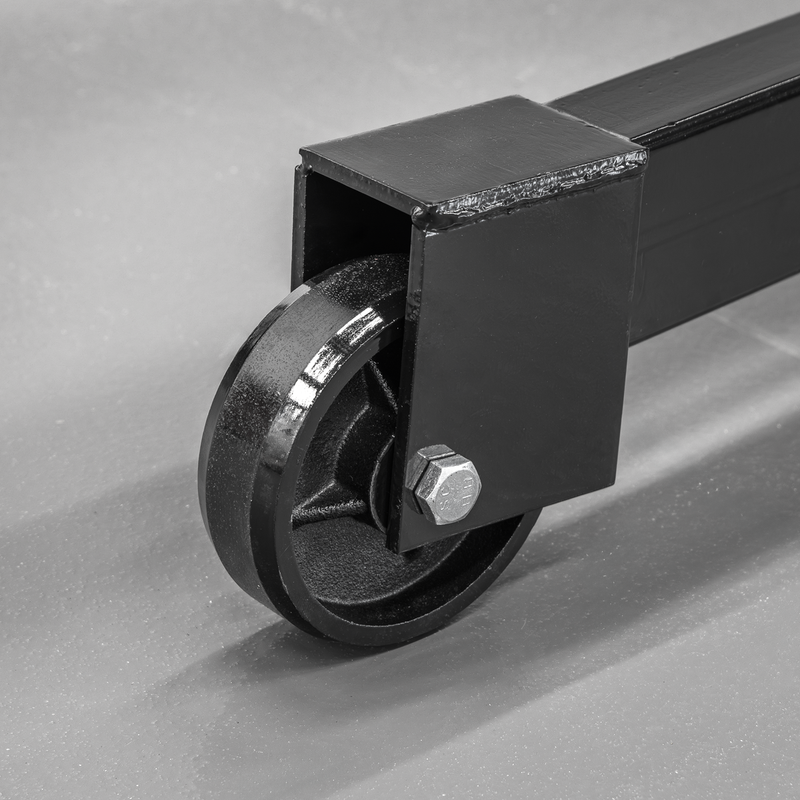

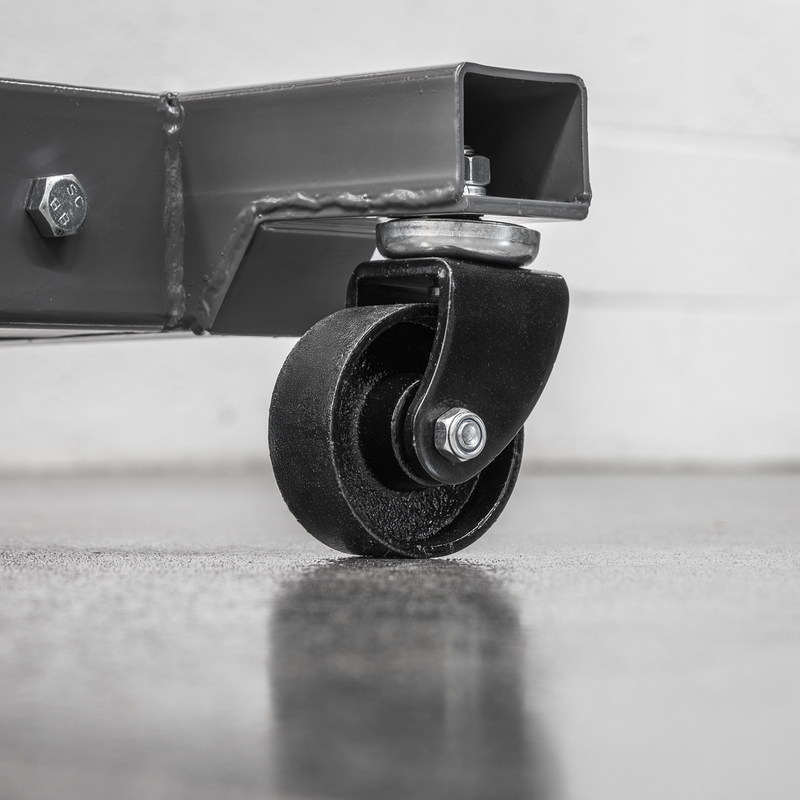

  • Easy Manoeuvrability: Equipped with heavy-duty fixed front wheels and rear castors.

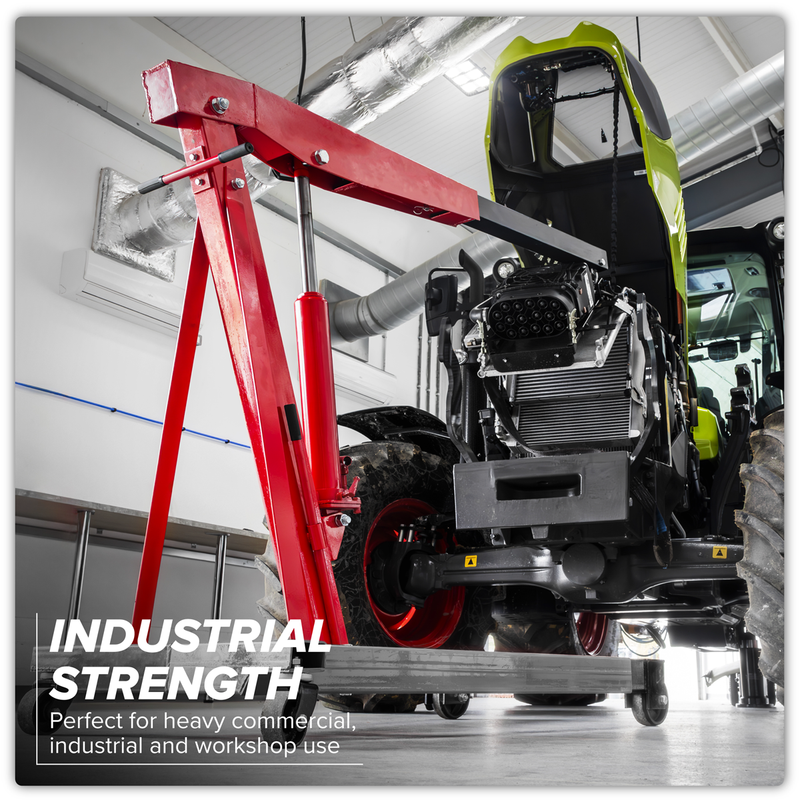

  • Industrial Strength: Suitable for heavy commercial and workshop applications.
  • Stable Design: Extendable legs enhance stability, especially at maximum jib extensions.

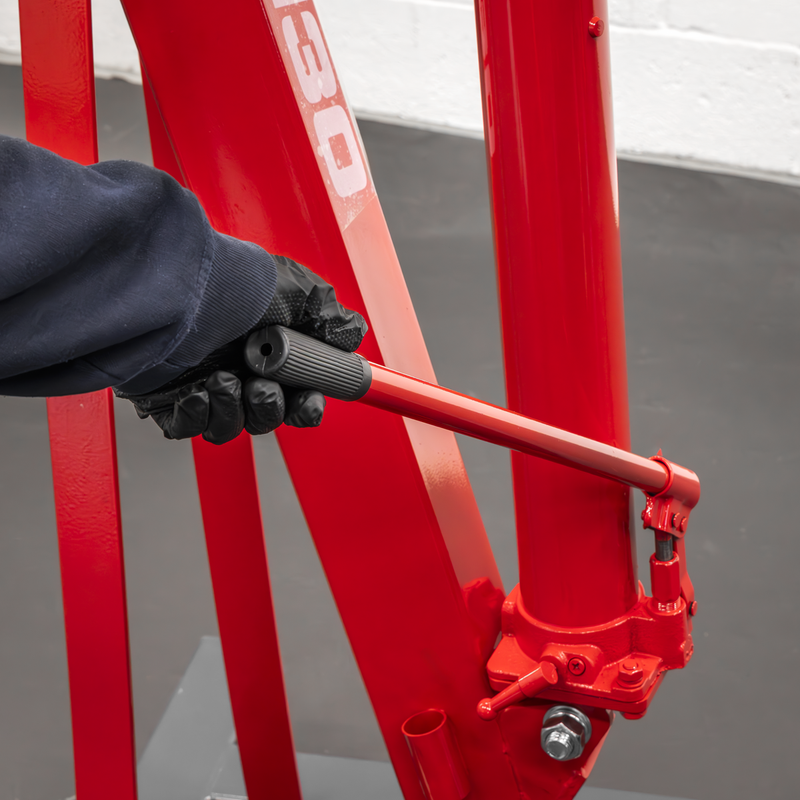

  • Simple Access: Side pump access allows for safe handling of heavy loads.
  • Knock-down Delivery: Delivered in parts to reduce freight costs.
Specifications
Brand Sealey
EAN 5054630451256
Type Jacking & Lifting
Sub-Type Cranes
Item Weight 165 g
Custom Bundle No
Model No PH30
Height Jib Down 1610mm
Height Legs Folded N/A
Height of Frame 195mm
Length Legs Extended 950mm
Length of Jib Position 1 1200mm
Length of Jib Position 2 1400mm
Length of Jib Position 3 1610mm
Length of Jib Position 4 1820mm
Length of Jib Position 5 n/a
Length 1555mm
Lifting Capacity in Position 1 3000kg
Lifting Capacity in Position 2 2000kg
Lifting Capacity in Position 3 1500kg
Lifting Capacity in Position 4 1000kg
Lifting Capacity in Position 5 n/a
Max. Lift Ht at Jib Position 1 1880mm
Max. Lift Ht at Jib Position 2 1970mm
Max. Lift Ht at Jib Position 3 2010mm
Max. Lift Ht at Jib Position 4 2220mm
Max. Lift Ht at Jib Position 5 n/a
Nett Weight 155kg
Note *Legs Extended
Rear Width 780mm
Width Front Frame 855mm*
Width Inside Front Frame 700mm*
Manufacturer Part Number (MPN) PH30
