Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne
Sealey KD Type Folding Engine Crane 1 Tonne

Sealey KD Type Folding Engine Crane 1 Tonne

by Sealey
SKU SC10-SEA
Sold out
£278.99 - £278.99
£278.99
£278.99 - £278.99
£278.99

Free Standard Delivery for Orders Over £40*

Product Information

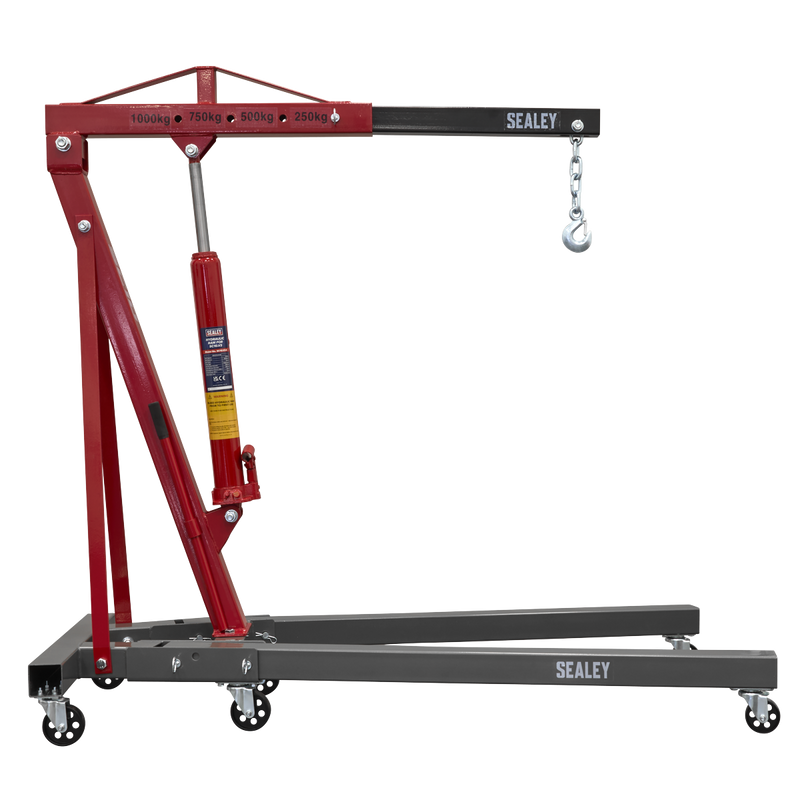

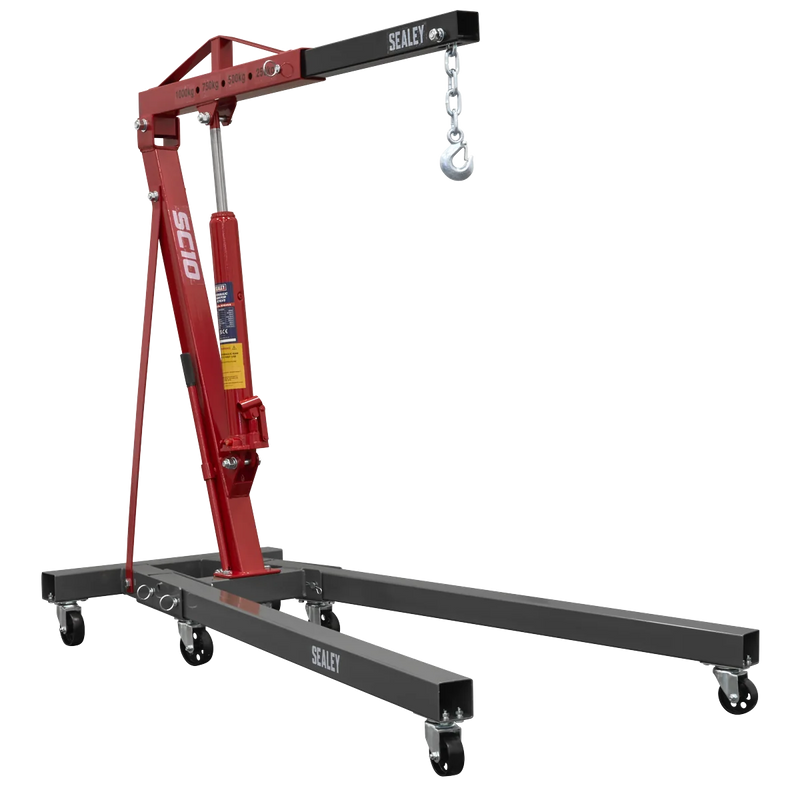

The Sealey KD Type Folding Engine Crane is designed for efficient lifting and easy storage. With a maximum lifting capacity of 1 tonne, this crane is ideal for workshops and garages.

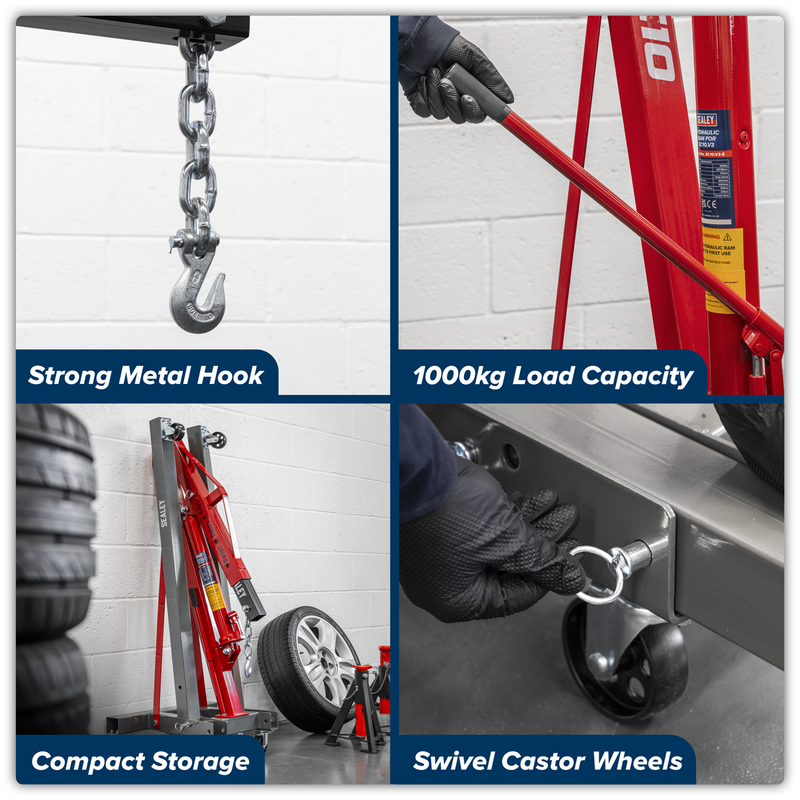

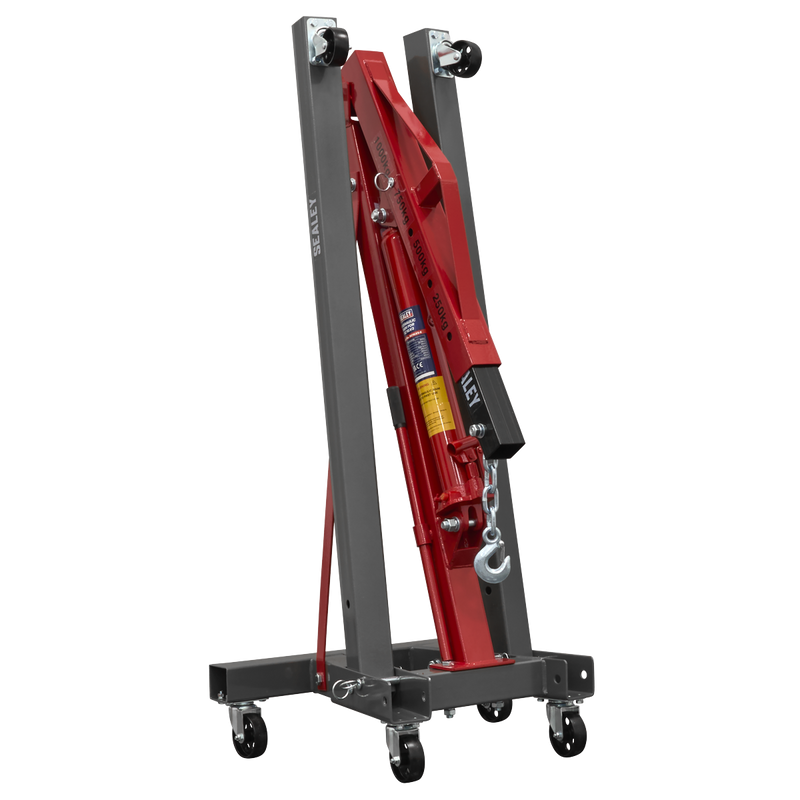

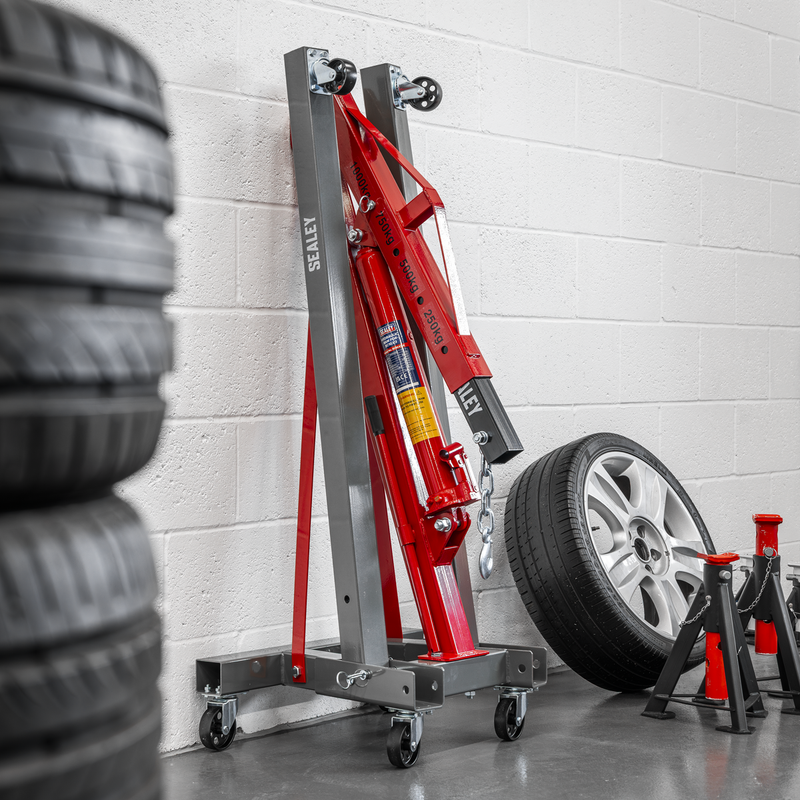

  • Space Saving: Folds for easy storage, maximizing workshop space.
  • Easy Manoeuvrability: Equipped with six heavy-duty castor wheels for smooth movement.

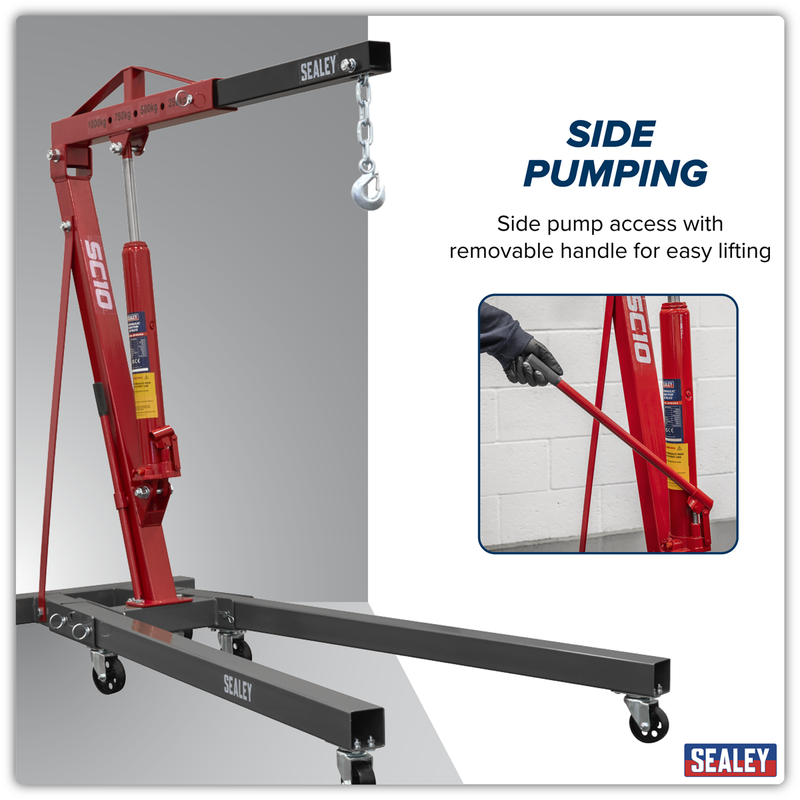

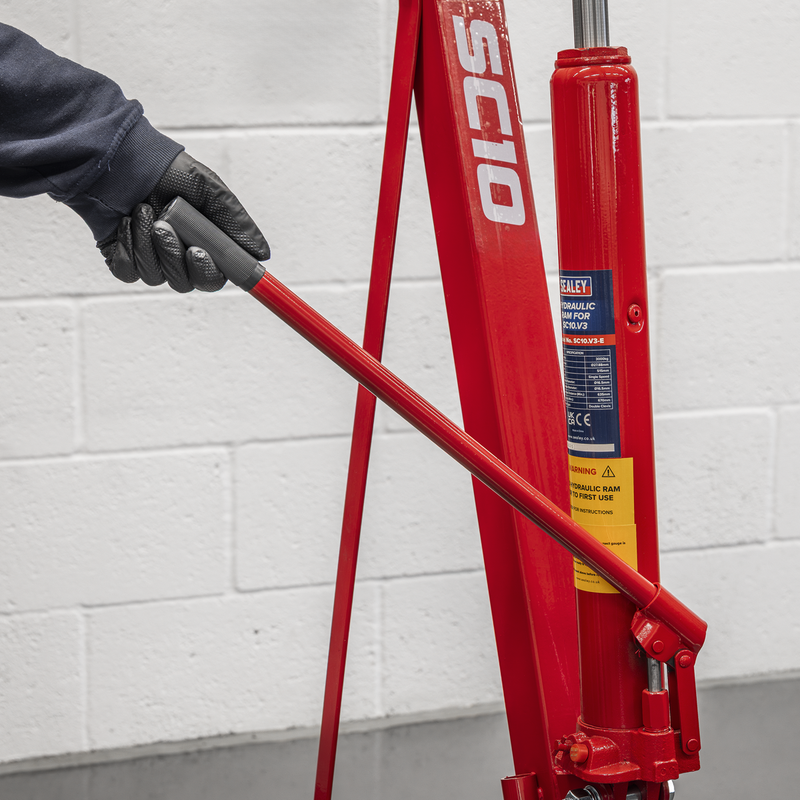

  • Simple Access: Side pump access allows for safe handling of heavy loads.
  • Knock-Down Delivery: Delivered in parts to reduce freight costs.

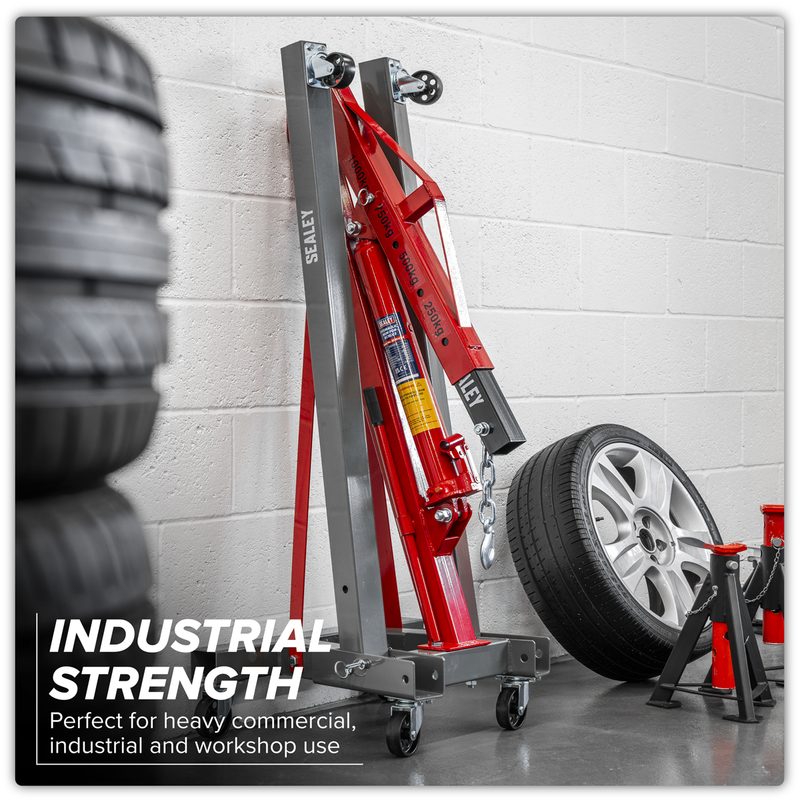

  • Heavy Duty: Built to handle substantial weights with ease.
Specifications
Brand Sealey
EAN 5054630451942
Type Jacking & Lifting
Sub-Type Cranes
Item Weight 49.7 kg
Custom Bundle No
Model No SC10
Height Jib Down 1405mm
Height Legs Folded 1440mm
Height of Frame 185mm
Length of Jib Position 1 830mm
Length of Jib Position 2 950mm
Length of Jib Position 3 1070mm
Length of Jib Position 4 1190mm
Length of Jib Position 5 N/A
Length 1620mm

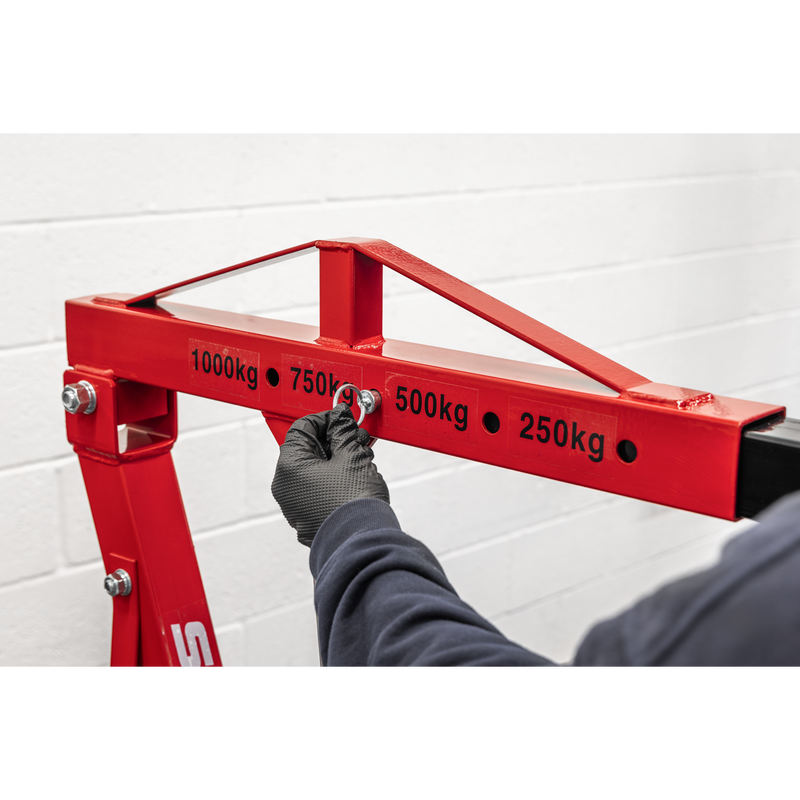

Lifting Capacity in Position 1 1000kg
Lifting Capacity in Position 2 750kg
Lifting Capacity in Position 3 500kg
Lifting Capacity in Position 4 250kg
Lifting Capacity in Position 5 N/A
Max. Lift Ht at Jib Position 1 1820mm
Max. Lift Ht at Jib Position 2 1935mm
Max. Lift Ht at Jib Position 3 2030mm
Max. Lift Ht at Jib Position 4 2150mm
Max. Lift Ht at Jib Position 5 N/A
Nett Weight 67kg
Rear Width 700mm
Width Front Frame 920mm
Width Inside Front Frame 780mm
Application Automotive
Manufacturer Part Number (MPN) SC10
