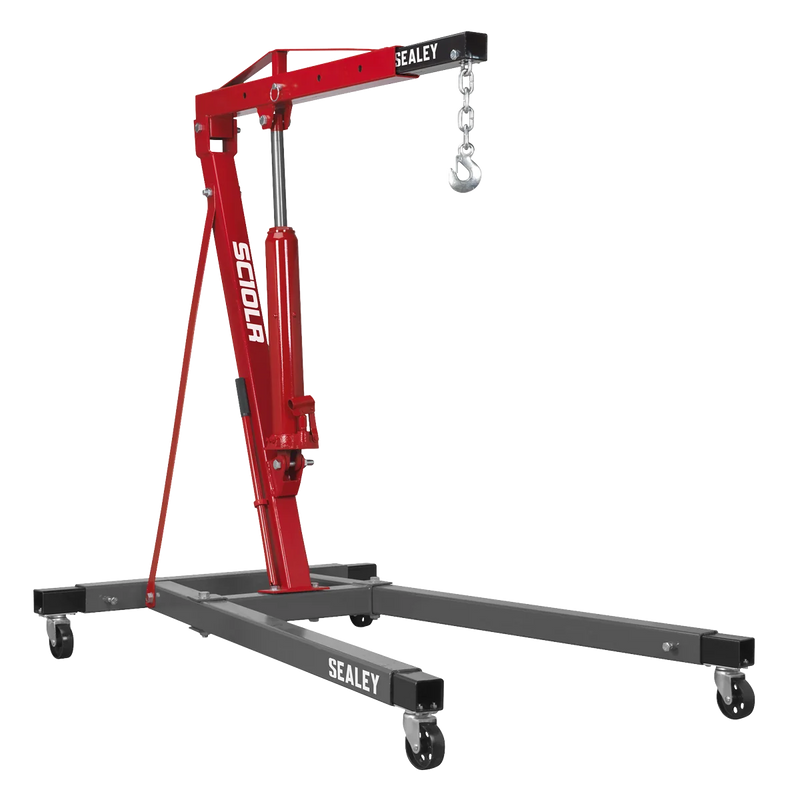

Sealey Long Reach Engine Crane SC10LR 1 Tonne Capacity
Sealey Long Reach Engine Crane SC10LR 1 Tonne Capacity

Sealey Long Reach Engine Crane SC10LR 1 Tonne Capacity

by Sealey
SKU SC10LR-SEA
Sold out
£447.99 - £447.99
£447.99
£447.99 - £447.99
£447.99

Free Standard Delivery for Orders Over £40*

Product Information

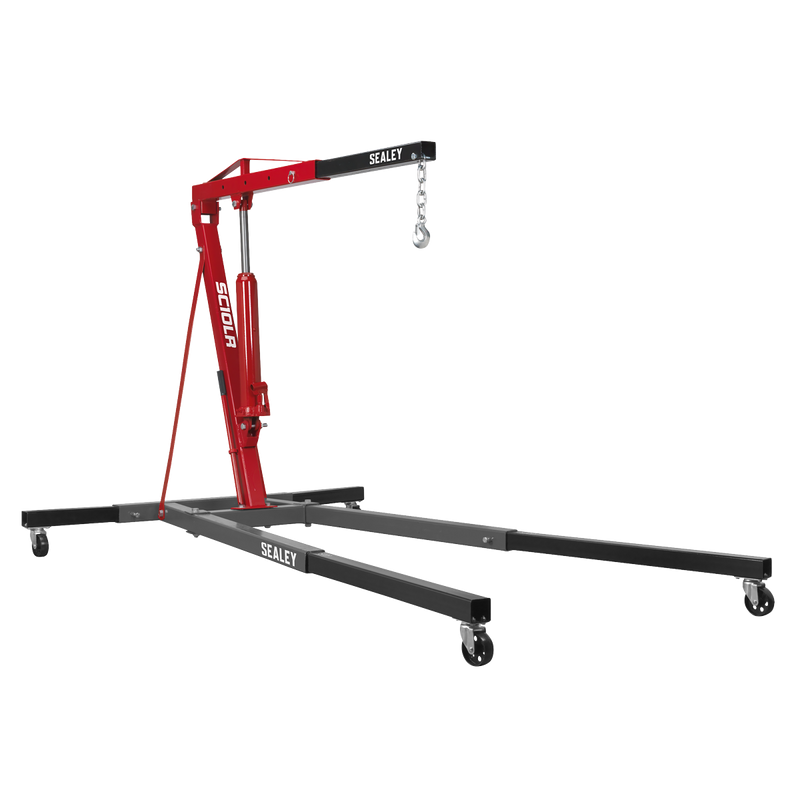

The Sealey Long Reach Engine Crane SC10LR is designed for heavy-duty lifting tasks, offering a maximum lifting capacity of 1 tonne. This crane features extendable legs for enhanced stability, especially when operating at maximum jib extension.

  • Long Reach: Maximum jib extension of 1447mm for versatile lifting.
  • Easy Access: Side pump allows for easy access while maintaining sight of the load.
  • Foldable Design: Convenient folding for easy transportation and storage.
  • Simple Assembly: Delivered in knock-down form to reduce freight costs.
  • Heavy Item: Extra assistance required for safe delivery due to weight.
Specifications
Brand Sealey
EAN 5054630444517
Type Jacking & Lifting
Sub-Type Cranes
Item Weight 85.5 kg
Custom Bundle No
Model No SC10LR
Height Jib Down 1446mm
Height of Frame 180mm
Length Legs Extended 1600mm
Length of Jib Position 1 937mm
Length of Jib Position 2 1107mm
Length of Jib Position 3 1277mm
Length of Jib Position 4 1447mm
Length of Jib Position 5 n/a
Length 1450mm
Lifting Capacity in Position 1 1000kg
Lifting Capacity in Position 2 750kg
Lifting Capacity in Position 3 500kg
Lifting Capacity in Position 4 250kg
Lifting Capacity in Position 5 n/a
Max. Lift Ht at Jib Position 1 1750mm
Max. Lift Ht at Jib Position 2 1850mm
Max. Lift Ht at Jib Position 3 1950mm
Max. Lift Ht at Jib Position 4 2050mm
Max. Lift Ht at Jib Position 5 n/a
Nett Weight 81.5kg
Rear Width 860/1160mm
Standard Leg Length 1450mm
Extended Leg Length 1590mm
Extendable Distance 140mm
Width Front Frame 690-720mm
Width Inside Front Frame 381/605mm
Manufacturer Part Number (MPN) SC10LR
