by Sealey
SKU MINIMIG160i-SEA
£280.93 - £280.93
£280.93
£280.93 - £280.93
£280.93

Free Standard Delivery for Orders Over £40*

In Stock

Order before 2pm for fastest dispatch

Product Information

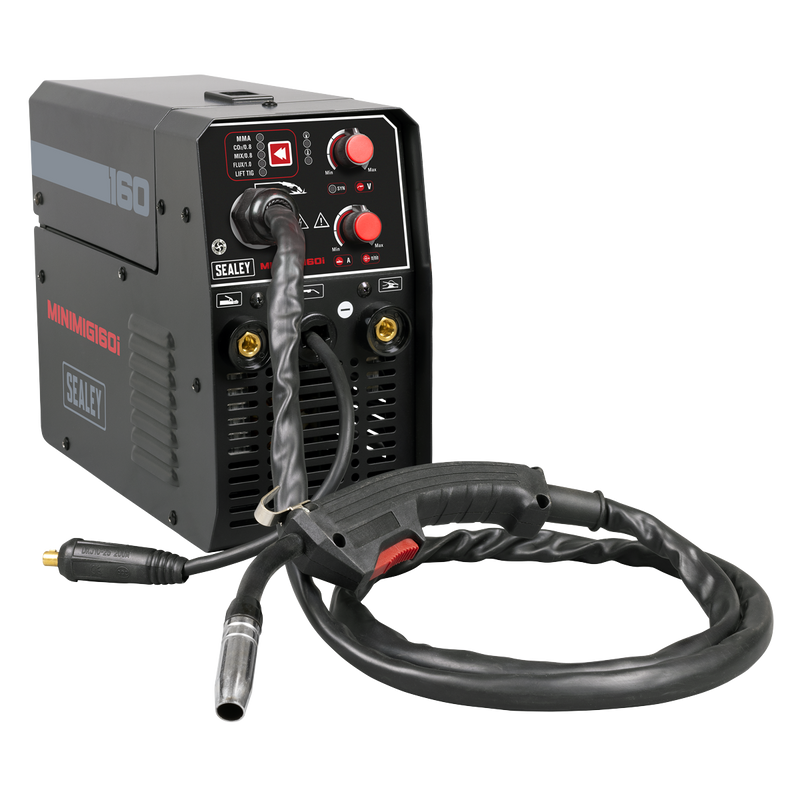

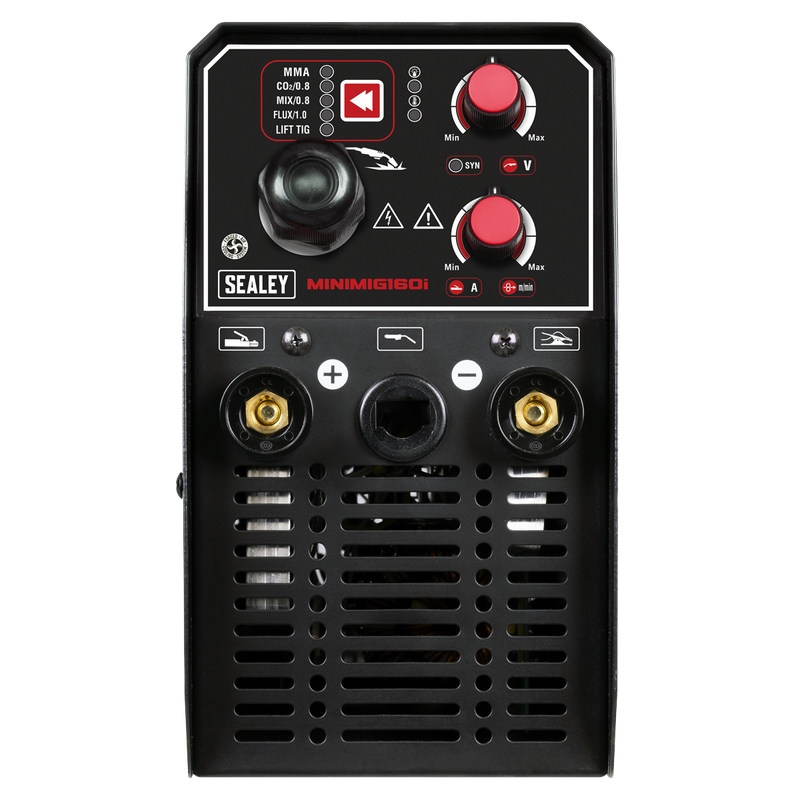

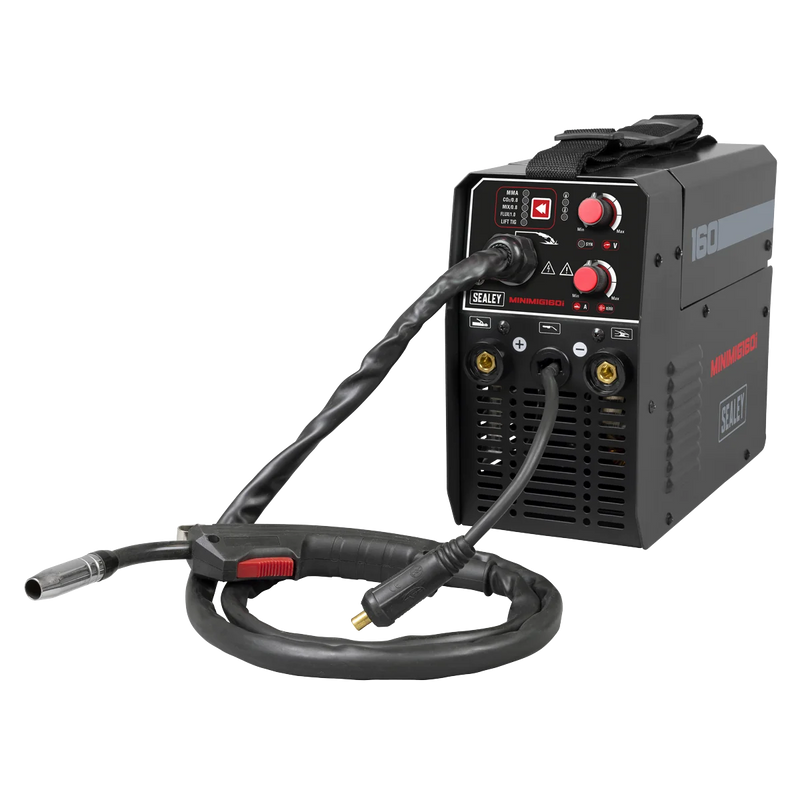

The Sealey MINIMIG160i is a versatile 3-in-1 inverter welder designed for MIG, TIG, and MMA welding applications. With a maximum output of 160A, this compact unit is perfect for both professional and hobbyist use.

  • IGBT Inverter Technology: Provides reliable DC power supply for various welding tasks.
  • Highly Portable: Weighing only 6.9kg, it features a carry strap for easy transport.
  • Welding Capability: Compatible with 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored wire for MIG, and Ø1.6-4mm electrodes for MMA.
  • Duty Cycle: 60% @ 160A for MIG, TIG, and MMA applications.
  • Safety Features: Includes hot start, anti-stick, forced air cooling, and thermal cut out protection.

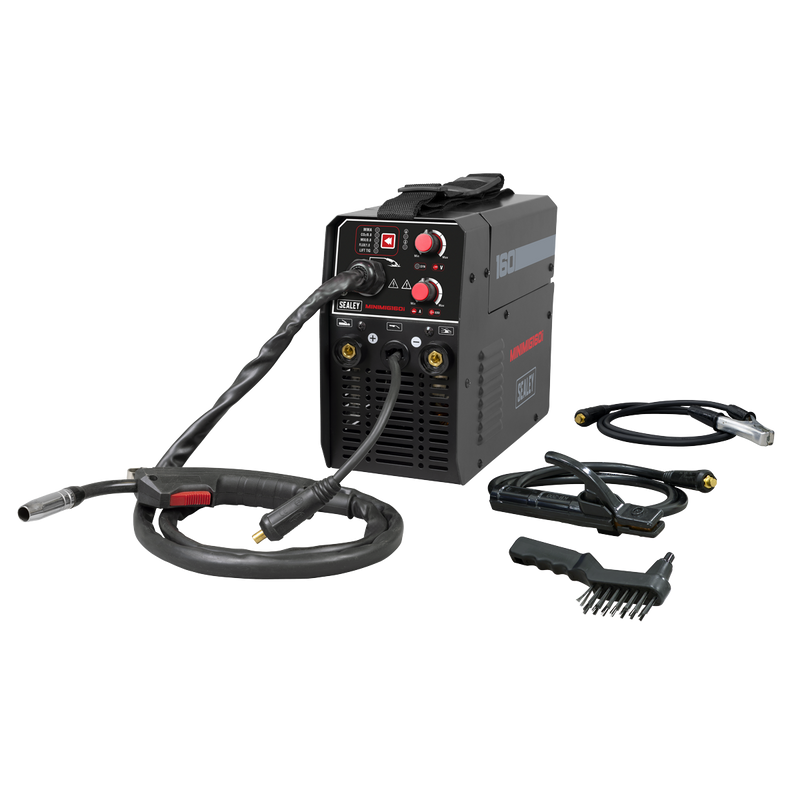

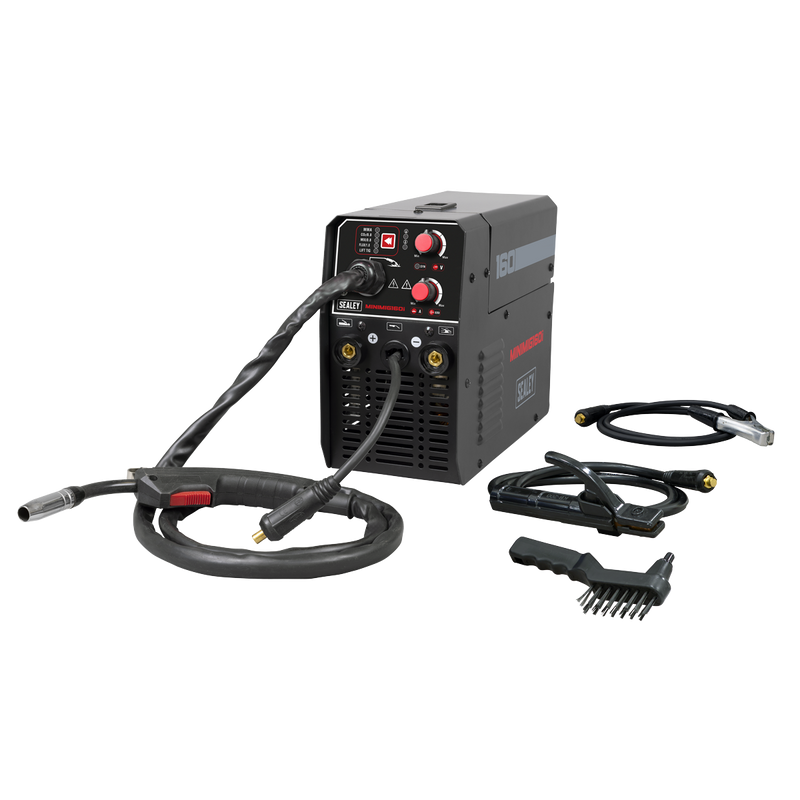

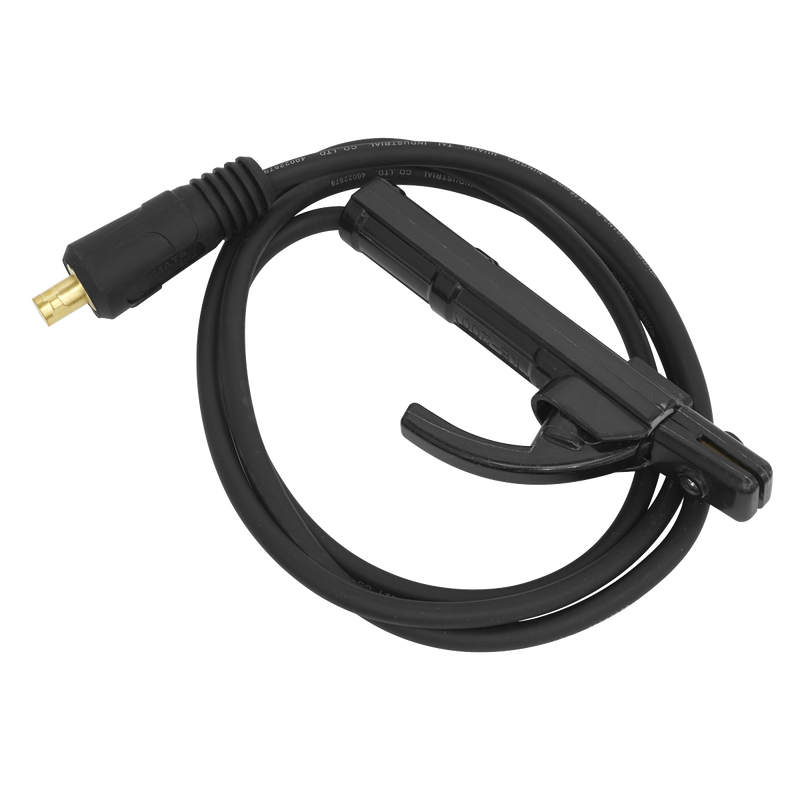

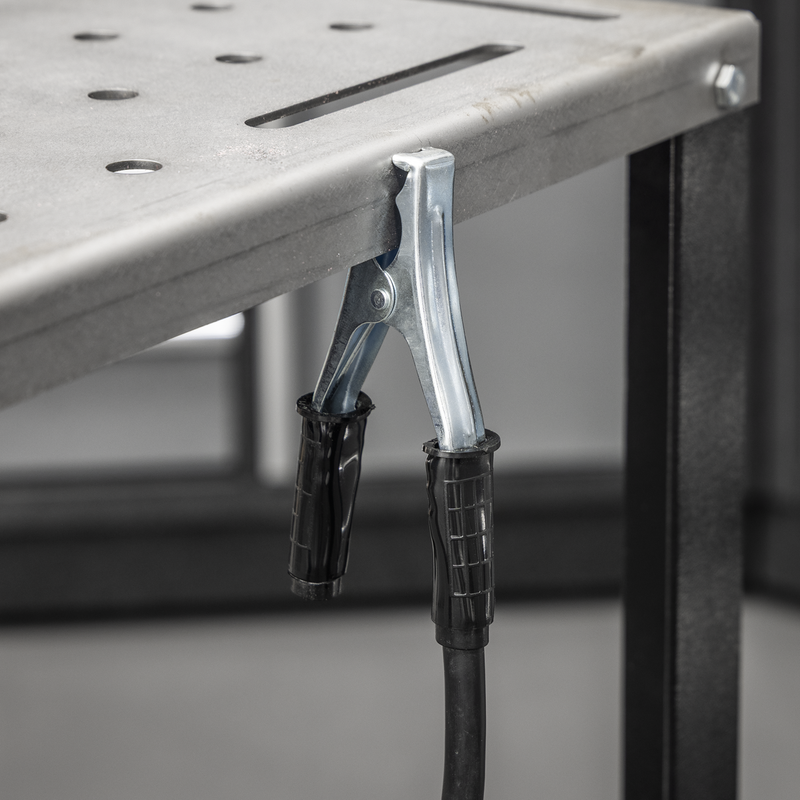

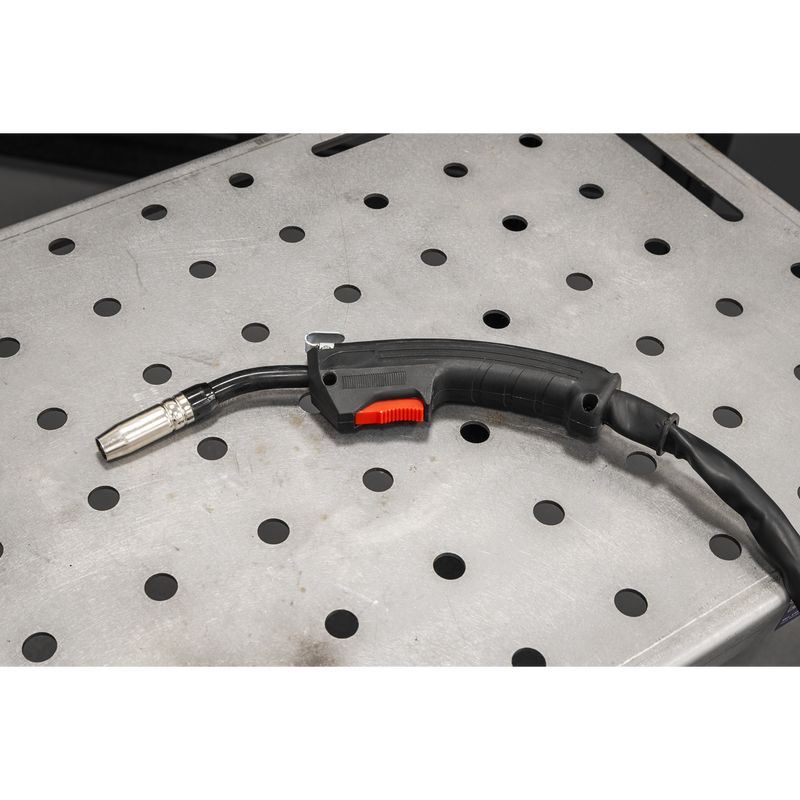

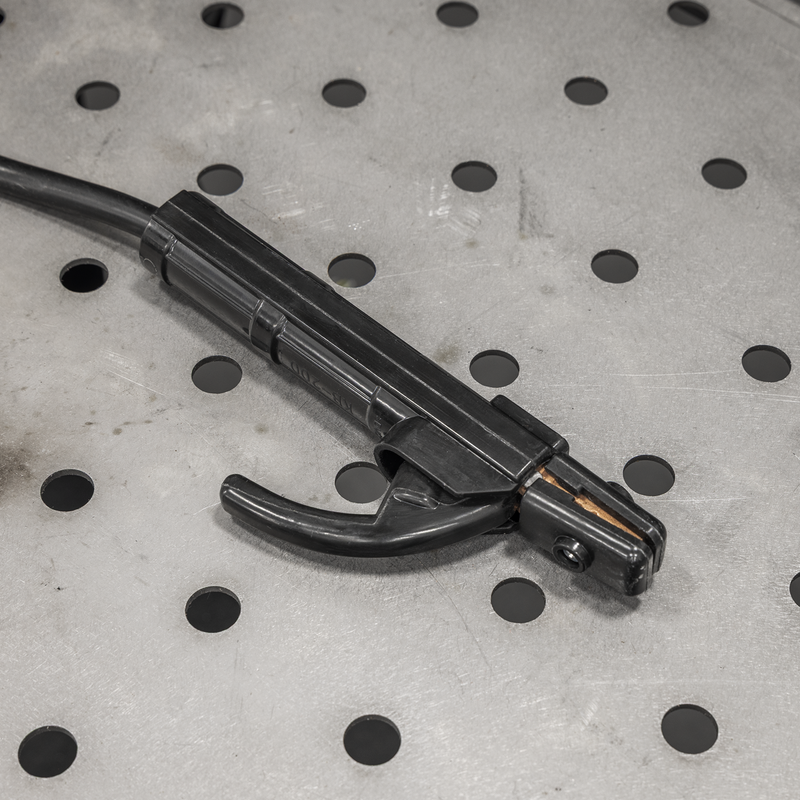

Supplied with a fixed non-live MIG torch, 1.4m earth cable/clamp, and 1.6m electrode holder, this welder is ready for use right out of the box.

Specifications
Brand Sealey
EAN 5054630460814
Type Welding & Cutting
Sub-Type Inverters
Item Weight 7.5 kg
Custom Bundle No
Model No MINIMIG160i
Nett Weight 6.9kg
Welding Current 10-160A
Duty Cycle MIG 60% @ 160A, 100% @ 124A
Duty Cycle MMA/ARC 60% @ 160A, 100% @ 124A
Duty Cycle TIG 60% @ 160A, 100% @ 124A
Wire Capacity 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire
Electrode Capacity 1.6-4mm
Absorbed Power 4.4kW
Supply 230V 16A*
Insulation Class H
IP Rating IP21S
Note * To achieve maximum power a 16A supply may be required.
Voltage 230V
Power Source Mains
Manufacturer Part Number (MPN) MINIMIG160i
