Sealey Relay Tester TA131 12V DC with 4 & 5 Pin Configurations
Sealey Relay Tester TA131 12V DC with 4 & 5 Pin Configurations

Sealey Relay Tester TA131 12V DC with 4 & 5 Pin Configurations

by Sealey
SKU TA131-SEA
Sold out
£65.99 - £65.99
£65.99
£65.99 - £65.99
£65.99

Free Standard Delivery for Orders Over £40*

Product Information

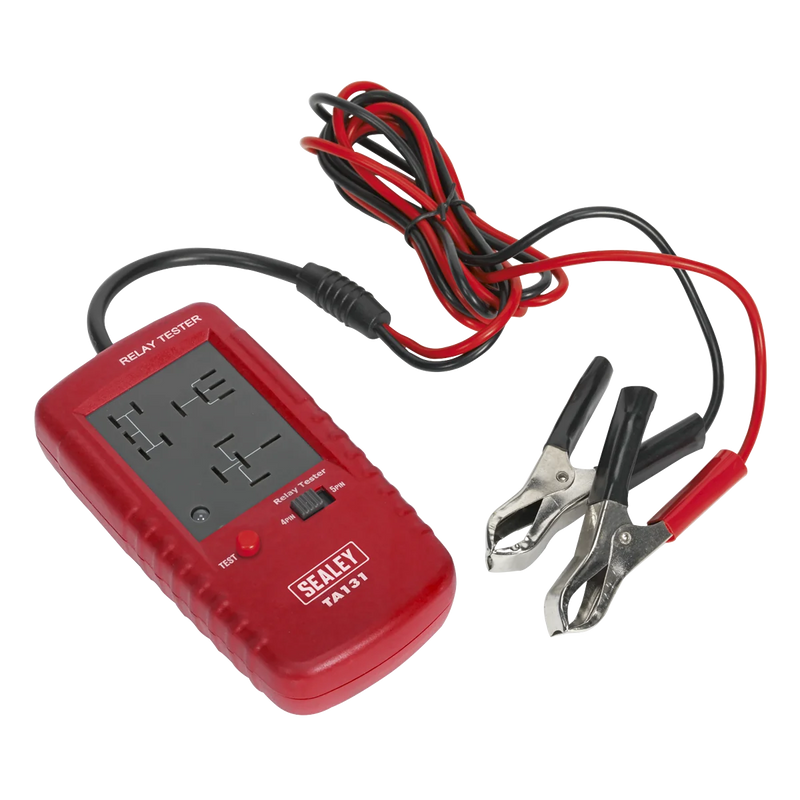

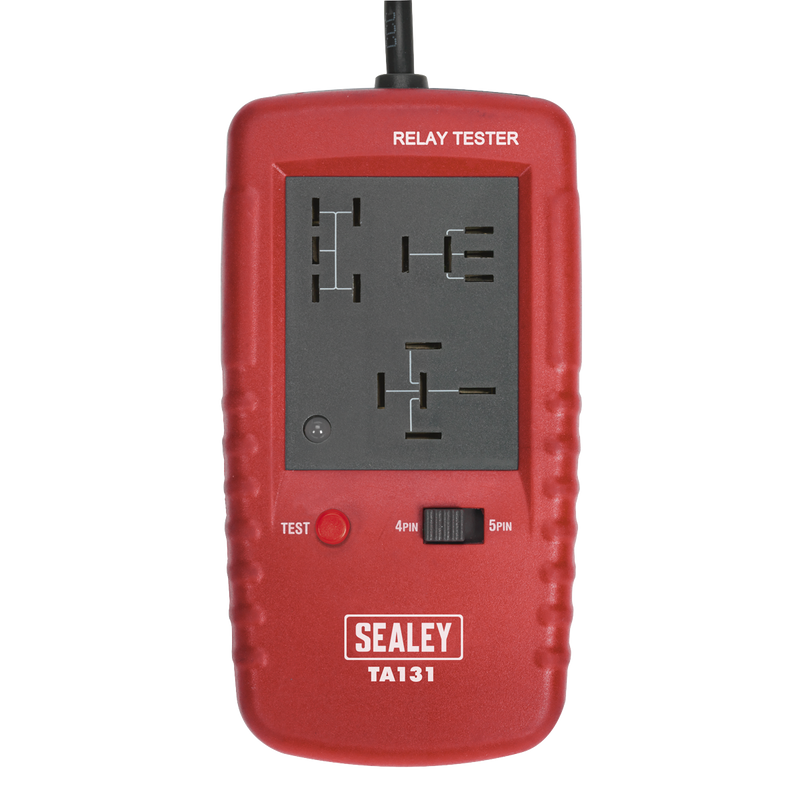

The Sealey Relay Tester TA131 is designed for health testing of 4 and 5-pin electro-mechanical relays commonly found in modern vehicles. This reliable tool features a testing mechanism that cycles the relay 10 times, ensuring thorough evaluation of resistance, contacts, and consistency throughout each cycle.

  • Indicates relay status with red LED for failure and green LED for success.
  • Operates on a supply voltage of 12V DC, suitable for vehicle batteries.
  • Includes insulated crocodile clips for safe battery connection.
  • Compact tester module size: 130 x 70 x 35 mm.
  • Equipped with a 1400mm flying lead for easy access.
Specifications
Brand Sealey
EAN 5054511975888
Type Vehicle Service Tools
Sub-Type Electrics
Item Weight 0.35 kg
Custom Bundle No
Model No TA131
Nett Weight 0.28kg
Relay Configurations 4 pin, 5 pin
Relay Configuration 4 pin/5pin
Supply Voltage 12V DC (Vehicle Battery)
Flying Lead Length 1400mm
Tester Module Size (L x W x D) 130 x 70 x 35mm
Battery Connection Insulated Crocodile Clips
Weight 245g
Voltage 12V
Power Source Battery
Manufacturer Part Number (MPN) TA131
