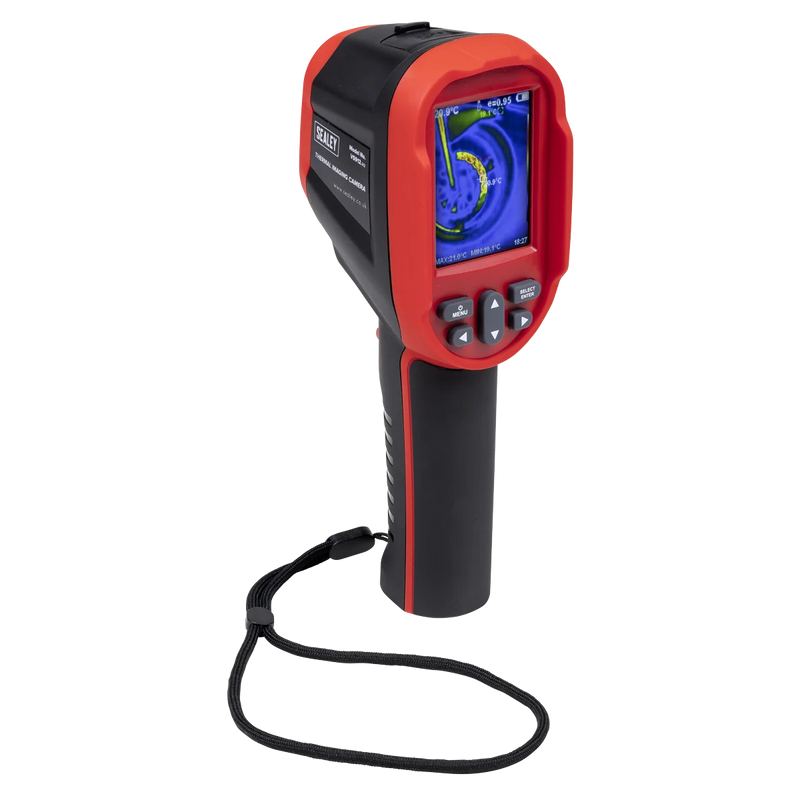

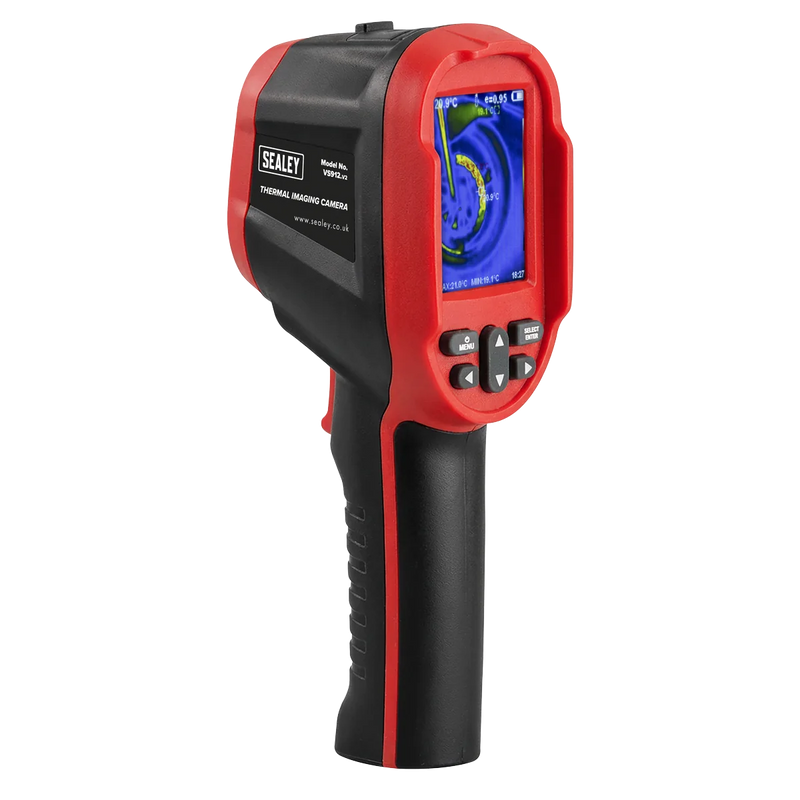

Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution
Sealey Thermal Imaging Camera VS912 120x90 Resolution

Sealey Thermal Imaging Camera VS912 120x90 Resolution

by Sealey
SKU VS912-SEA
Sold out
£569.99 - £569.99
£569.99
£569.99 - £569.99
£569.99

Free Standard Delivery for Orders Over £40*

Product Information

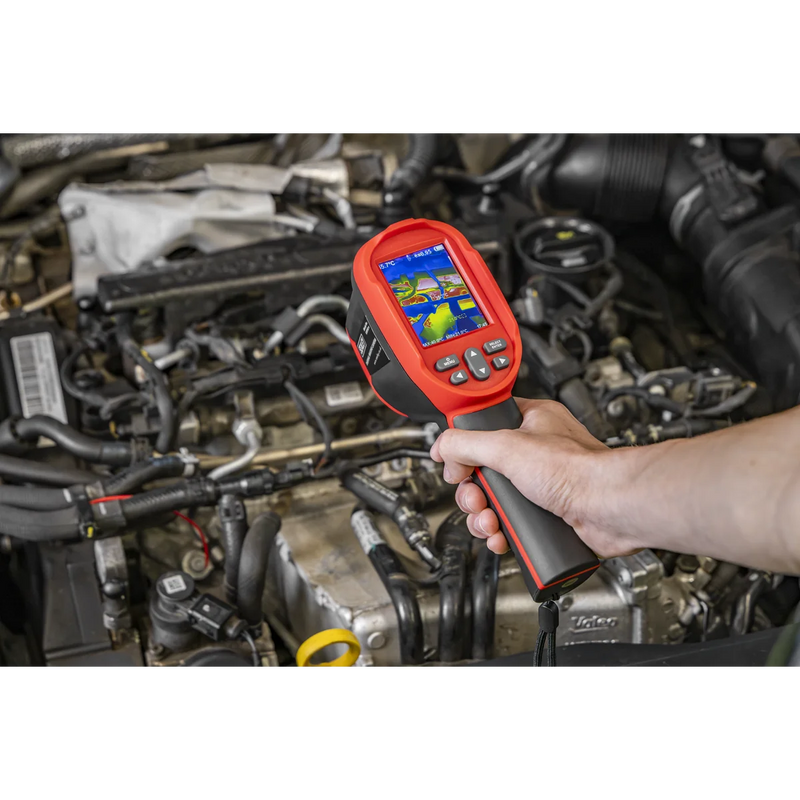

The Sealey Thermal Imaging Camera VS912 is designed for professionals who need to assess heat distribution and identify temperature variations accurately. With its advanced features, this camera is ideal for diagnosing faults in electrical systems, checking heating systems, and detecting moisture issues.

  • High Resolution: Infrared image resolution of 120 x 90 and a 3 Mega Pixel camera image.

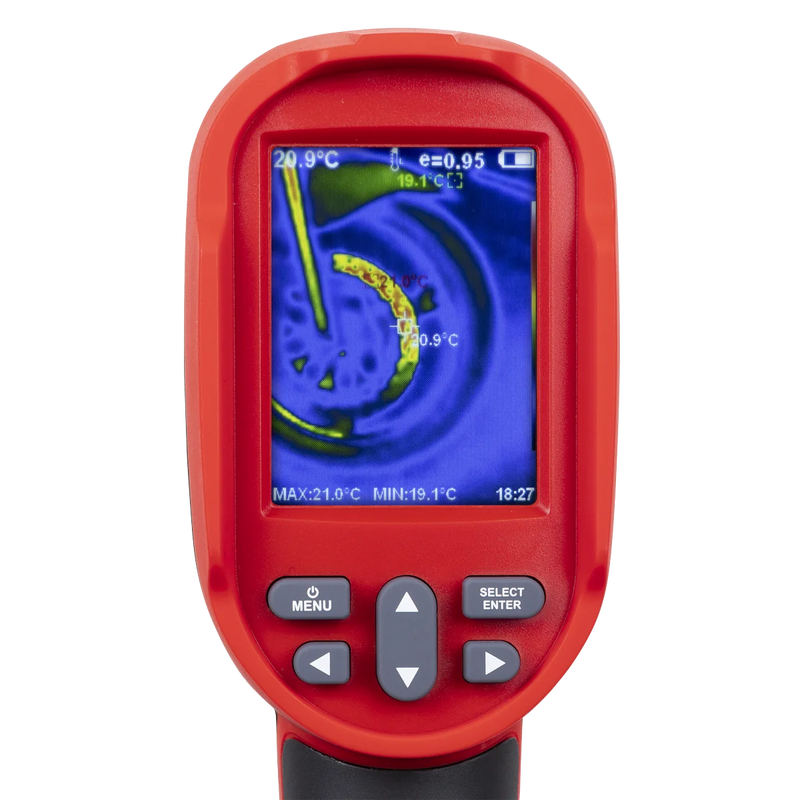

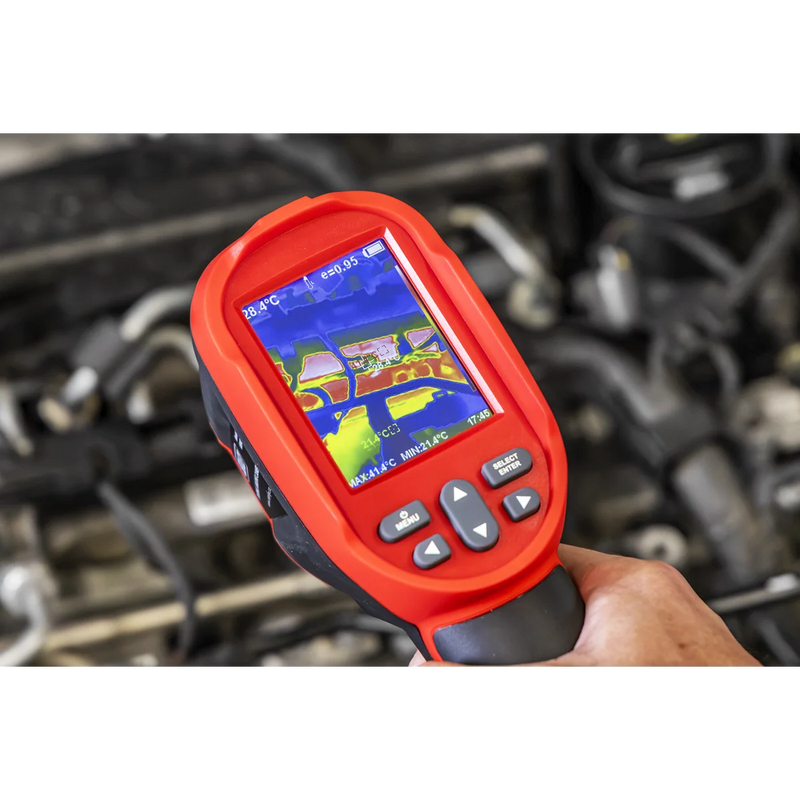

  • Clear Display: 70mm TFT colour display for sharp visual feedback.
  • Adjustable Emissivity: Ranges from 0.1 to 1 for accurate readings.
  • Wide Field of View: 26° x 19° for covering larger areas.
  • Battery Life: Rechargeable 2000mAh battery with a run time of up to 3 hours.
  • Storage Capacity: Internal memory of 3GB for image and video storage.
Specifications
Brand Sealey
EAN 5054630689376
Type Vehicle Service Tools
Sub-Type Engine
Item Weight 0.98 kg
Custom Bundle No
Model No VS912
Battery Run Time 3hrs
Colour Palette Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black
Emissivity 0.1 to 1 Adjustable
Field of Vision 26°×19°
Focal Distance 3.2mm, adjustable between 200–400mm
Image Mix (Camera to Thermal) 0%, 25%, 50%, 75%, 100%
Memory Capacity Internal Memory 3GB
Nett Weight 0.66kg
Power Source 2000mAh
Resolution Infrared Image 120 x 90 (10800 Pixels)-Camera Image 3 Mega Pixels
Display Screen 70mm TFT Colour Display
Visual Image Resolution 3 Megapixel
Accuracy >0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F
Thermal Sensitivity 0.15°C/0.9°F
Wavelength Range 8-14um
Focus Mode Fixed
Video Capture Yes
Software Analysis Support
Image Capture Frequency 25Hz
File Format JPG/MP4
Storage Built-in 4G eMMC (about 3G storage space available to the user

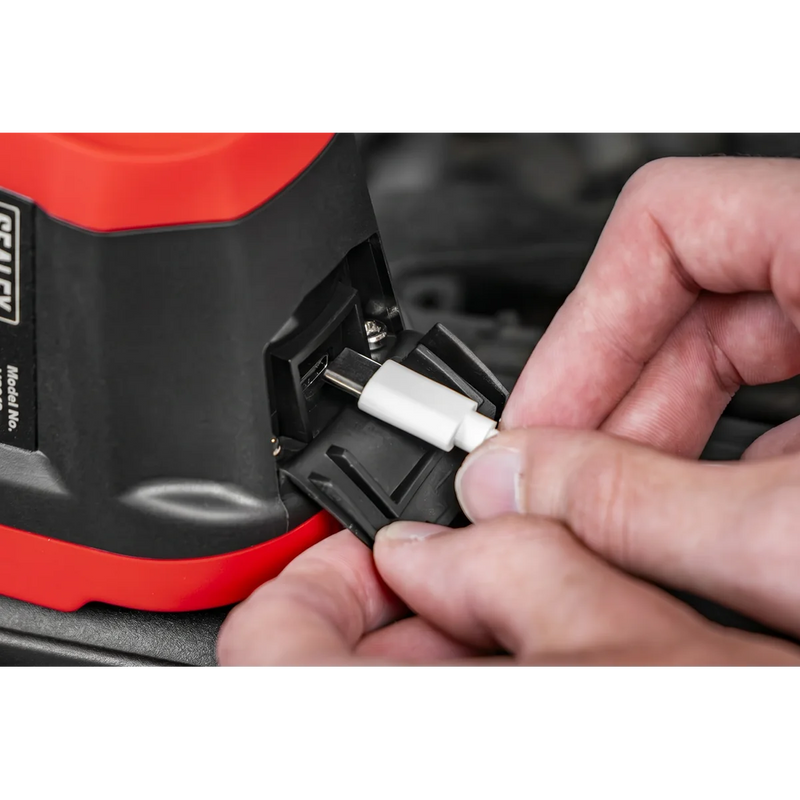

Power Supply Rechargeable 2000mAh battery or Type-C Power Supply
Screen Size 70mm
Auto-Power Off Selectable: 5min/20min/Not Power-Off Automatically
Working Conditions -10°C to 50°C/14°F to 144°F; 10 to 85%RH (non-condensing)
Storage Conditions -20°C to 60°C/-4°F to 140°F; 10 to 85%RH (non-condensing)
Temperature Range -20°C to +550°C (-4°F - 1022°F)
Manufacturer Part Number (MPN) VS912
