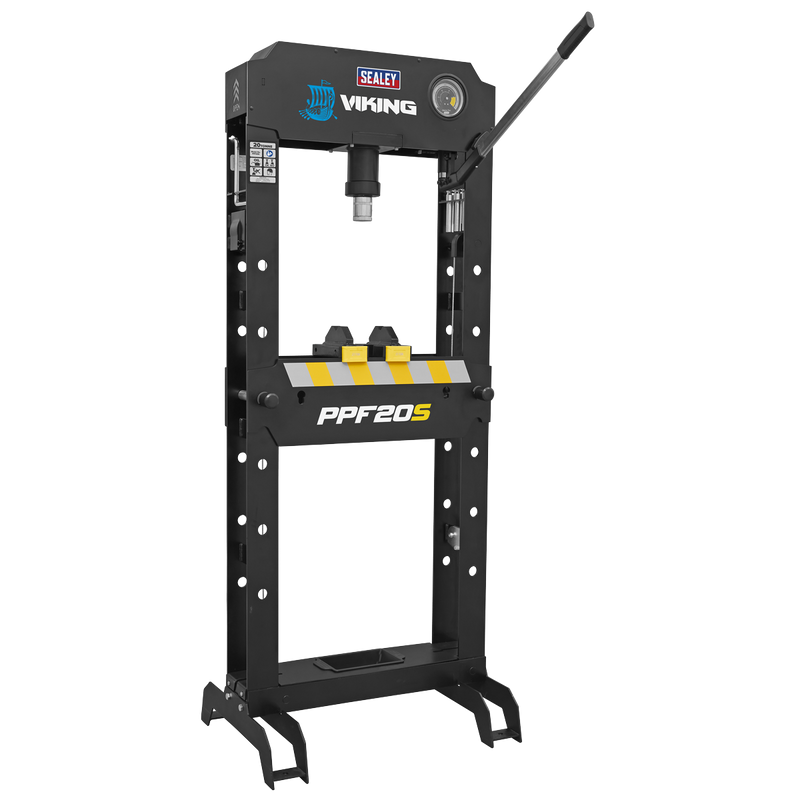

Sealey Viking Floor Type Hydraulic Press 20 Tonne PPF20S
Sealey Viking Floor Type Hydraulic Press 20 Tonne PPF20S

Sealey Viking Floor Type Hydraulic Press 20 Tonne PPF20S

by Viking
SKU PPF20S-SEA
Sold out
£1,394.99 - £1,742.99
£1,394.99
£1,394.99 - £1,742.99
£1,394.99

Free Standard Delivery for Orders Over £40*

Capacity: 20

Product Information

The Viking Floor Type Hydraulic Press is designed for heavy-duty lifting and pressing tasks, featuring a robust steel frame and a powerful hydraulic pump unit.

  • Capacity: 20 Tonne
  • Maximum Height: 850mm
  • Minimum Height: 25mm
  • Ram Stroke: 220mm
  • Weight: 121.4kg

This hydraulic press is equipped with a screw adjustable ram and an adjustable work area, making it versatile for various tasks. It includes a ram pressure gauge for accurate measurements and storage for press pins. The press is supplied with press pins and flat pressing plates/V-blocks for immediate use.

Available in 2 capacity options 20 and 30 — use the selector above to pick the exact one for the job.

Available options

Use the capacity selector at the top of this page to choose your option. Each option is dispatched as a separate stocked item.

Specifications
Capacity Part No EAN
20 PPF20S 5054630134265
30 PPF30S 5054630134104
Brand Viking
EAN 5054630134265
Type Jacking & Lifting
Sub-Type Presses
Item Weight 150 g
Custom Bundle No
Model No PPF20S
Bench or Floor Mounting Floor
Capacity 20 Tonne
Gauge Included Yes
Lateral Ram Travel n/a
Maximum Height - Ram to Table 850mm
Minimum Height - Ram to Table 25mm
Nett Weight 121.4kg
Operating Table Width 540mm
Overall Height 1800mm
Ram Diameter Ø84.2mm
Ram Stroke 220mm
Screw Extension 75mm
Table Aperture 150mm
Working Table Depth 166mm
Working Table Width 710mm
Power Source Hydraulic
Manufacturer Part Number (MPN) PPF20S
